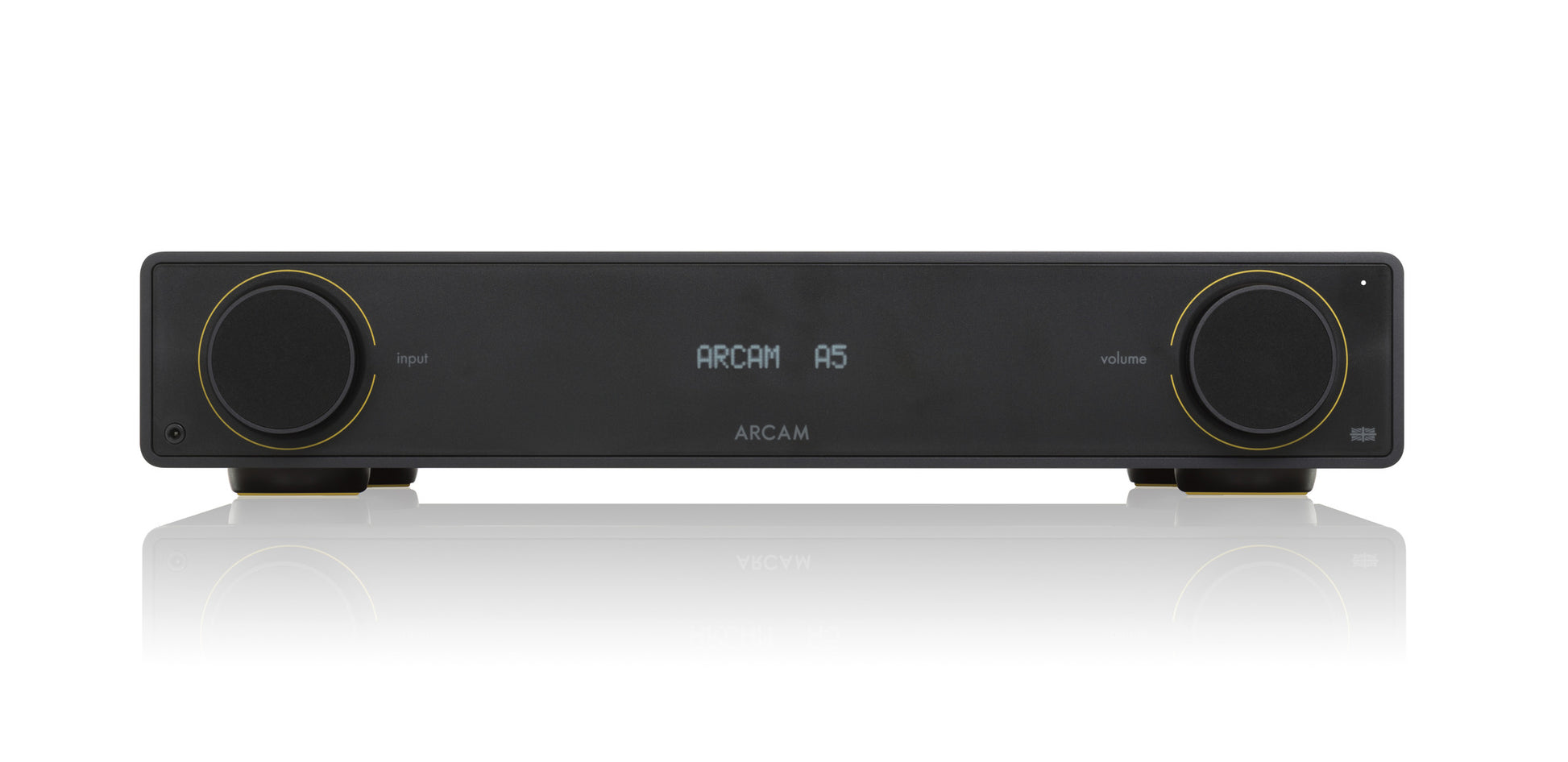

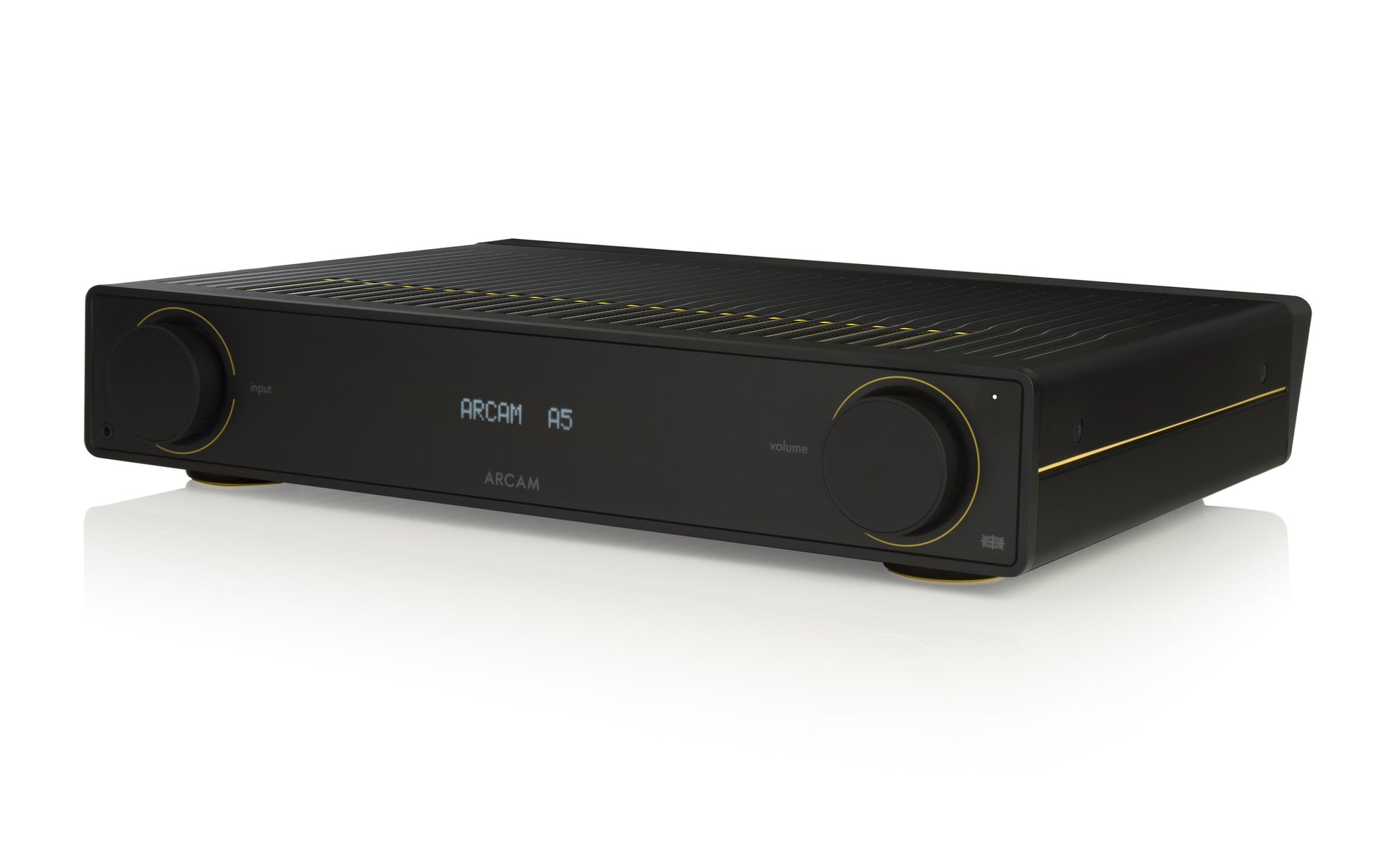

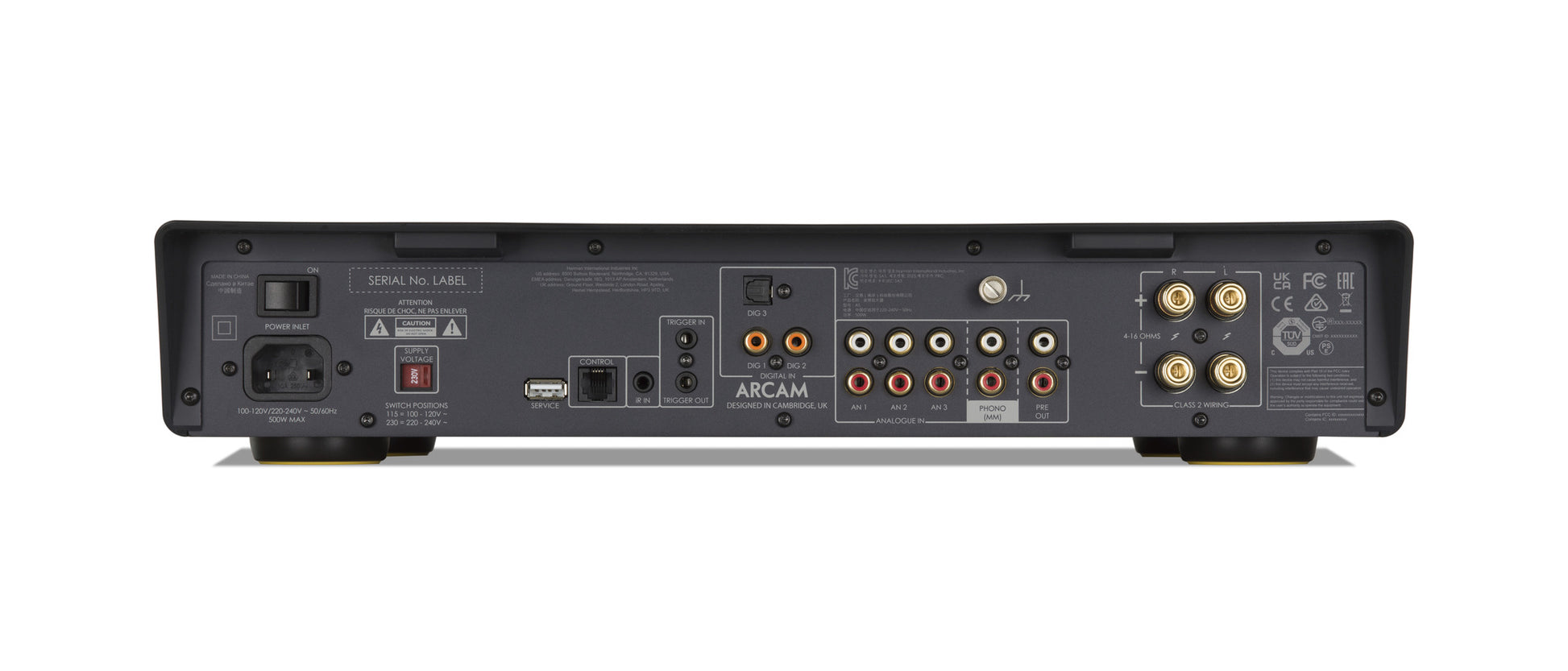

Arcam A5 Integrated Amplifier
Arcam A5 Integrated Amplifier
The ARCAM A5 is for those intimate listening experiences with your favourite music.
Couldn't load pickup availability
Description
Description
The "A" in ARCAM stands for Amplification. The A5 is the latest in more than 45 years of amplifier design and manufacture, going back to our first product in 1976 - the A&R Cambridge A60 amplifier. New components and materials have been painstakingly analysed and reviewed to ensure brilliant sound quality.
So you can play music straight out of the box, the ARCAM A5 includes a Bluetooth solution with Qualcomm AptX Adaptive technology. This provides up to 24-bit HD audio for the best sound quality from your phone or tablet, no matter what you are playing. It can also connect to Bluetooth headphones so your listening experience can continue sensitively after dark.
Hi-res audio is included with high resolution digital audio inputs included.
Like any ARCAM integrated amplifier, ARCAM pay particular attention to the built in phono stage to ensure your records sound as lush and engaging as possible.
Features
- ARCAM Class AB amplification - provides brilliant musicality
- 50W per channel (8ohms) - powers loudspeakers with ease
- Bluetooth with aptX™Adaptive Technology - for the best sound with the most convenience
- Specially selected components and materials - to deliver on sound quality
- Wired or Wireless Headphones - connect your headphones for quiet listening with, or without wires
- All new Radia design - Purposeful yet playful
- MM phono stage - ready for Turntables
- Hi-Res Digital Audio Inputs
- Plastic Free Packaging - for easy disposal of natural materials
Specifications
Specifications
Continuous power output (0.5% THD), per channel
- 2 channels driven, 20Hz - 20kHz, 8ohms 50W
- 2 channels driven, 1kHz, 4ohms 75W
- Harmonic distortion, 80% power, 8ohms at 1kHz 0.003%
Analogue Inputs
- Number of inputs 3 (RCA pairs)
- Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB
- Frequency response 20Hz—20kHz ± 0.2dB
Phono (MM) Input
- Input impedance 47kohms + 100pF
- Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB
Digital Inputs
- Supported Sample Rates (kHz)
- Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1
- Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1
- Bit depths (bit) 24, 16
- Frequency response (filter 1) 20Hz—20kHz ± 0.2dB
- Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB
Headphone Output
- Maximum output level (RMS) into 32ohms/300ohms 2.5V/5V
- Load range 16ohms - 2kohms
General
- Mains voltage 100V or 110–120V or 220–240V, 50–60Hz
- Power consumption (maximum) 350W
- Power consumption (standby) <0.5W
- Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 83mm
- Weight (net) 8kg
- Weight (packed) 11kg
Supplied accessories
- Mains lead(s)
- Remote control with 2 x AAA batteries
- Quick Start Guide
- Important Safety Instructions
Awards & Reviews
Awards & Reviews
What Hi-Fi?
"This is a superbly rounded performer that simply gets on with the job of playing music without intruding on the experience."
★★★★★ | READ MORE
AVForums
"This is a fine amplifier and an easy Best Buy."
BEST BUY AWARD | READ MORE
Trusted Reviews
"The A5 does an impressive amount and does it very well."
HIGHLY RECOMMENDED AWARD | READ MORE
5 Year Warranty
5 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
