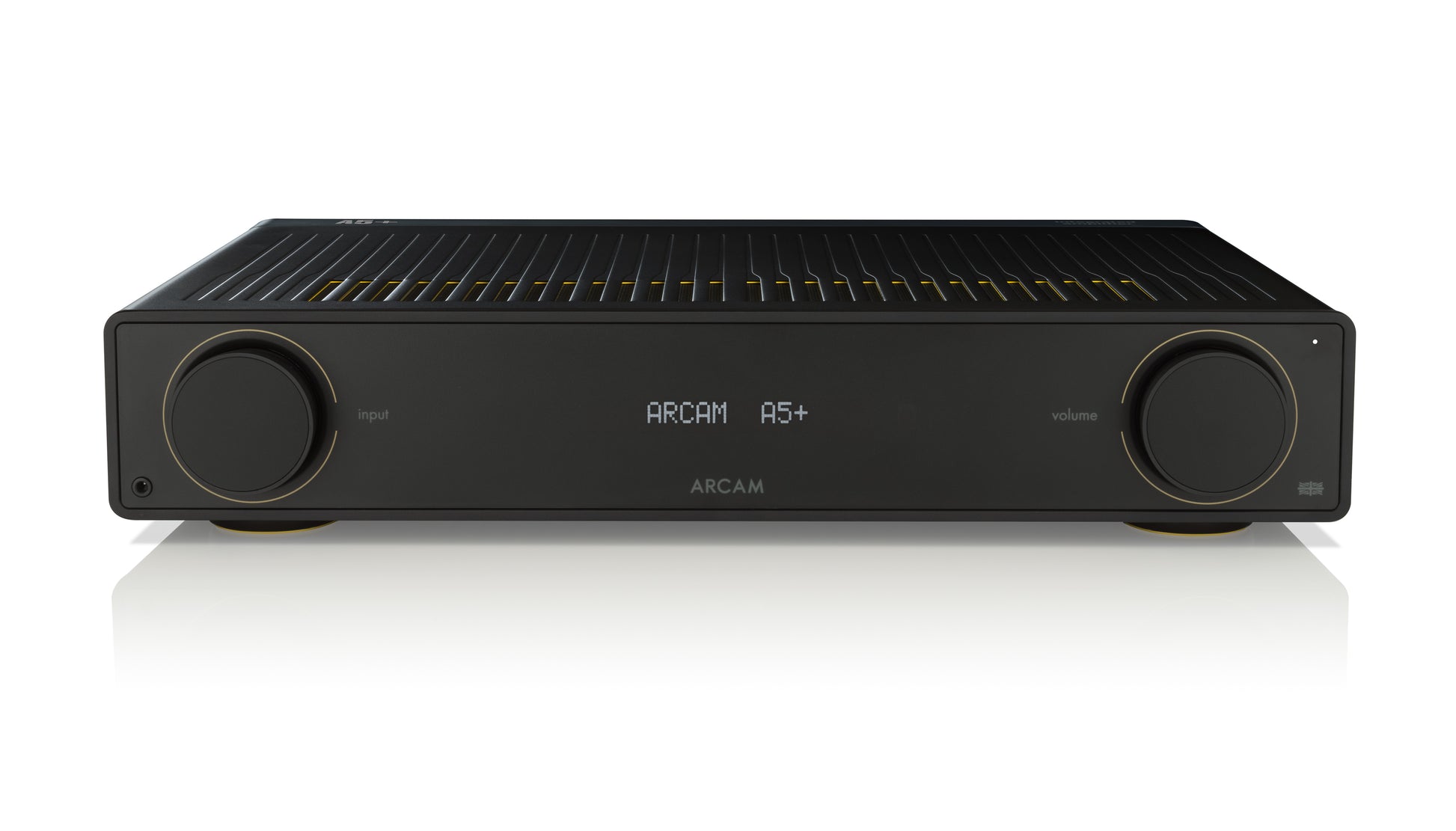

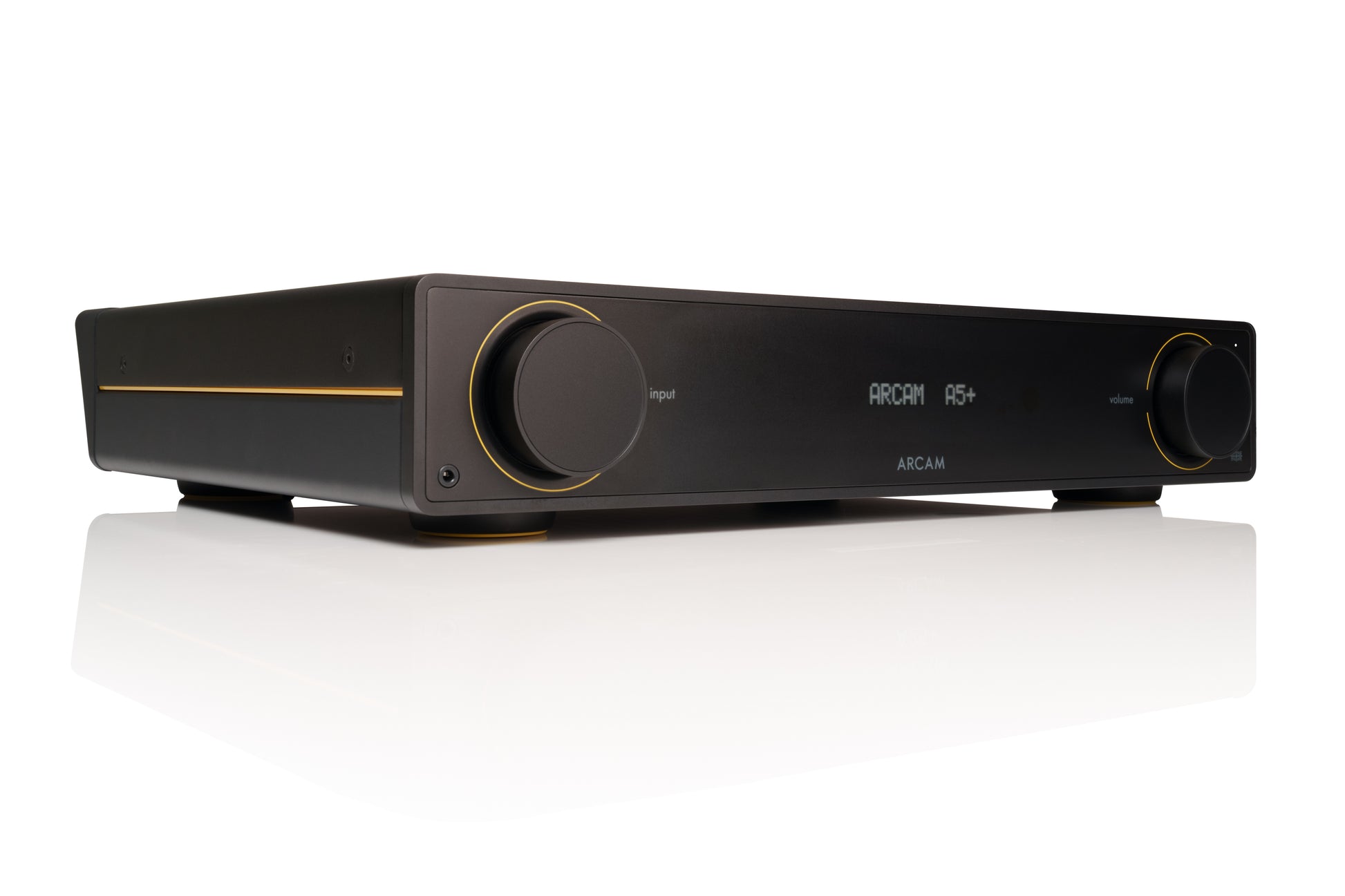

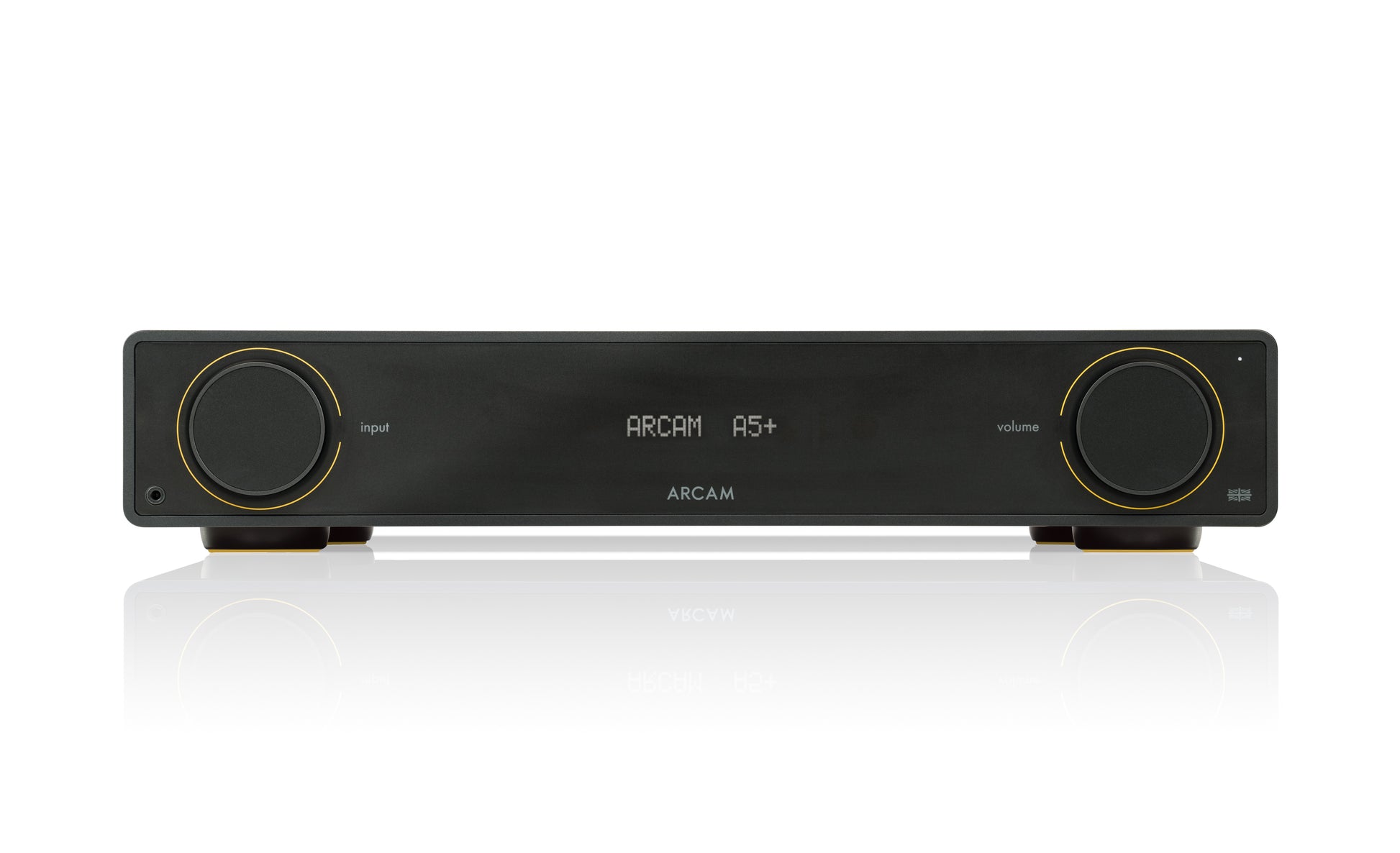

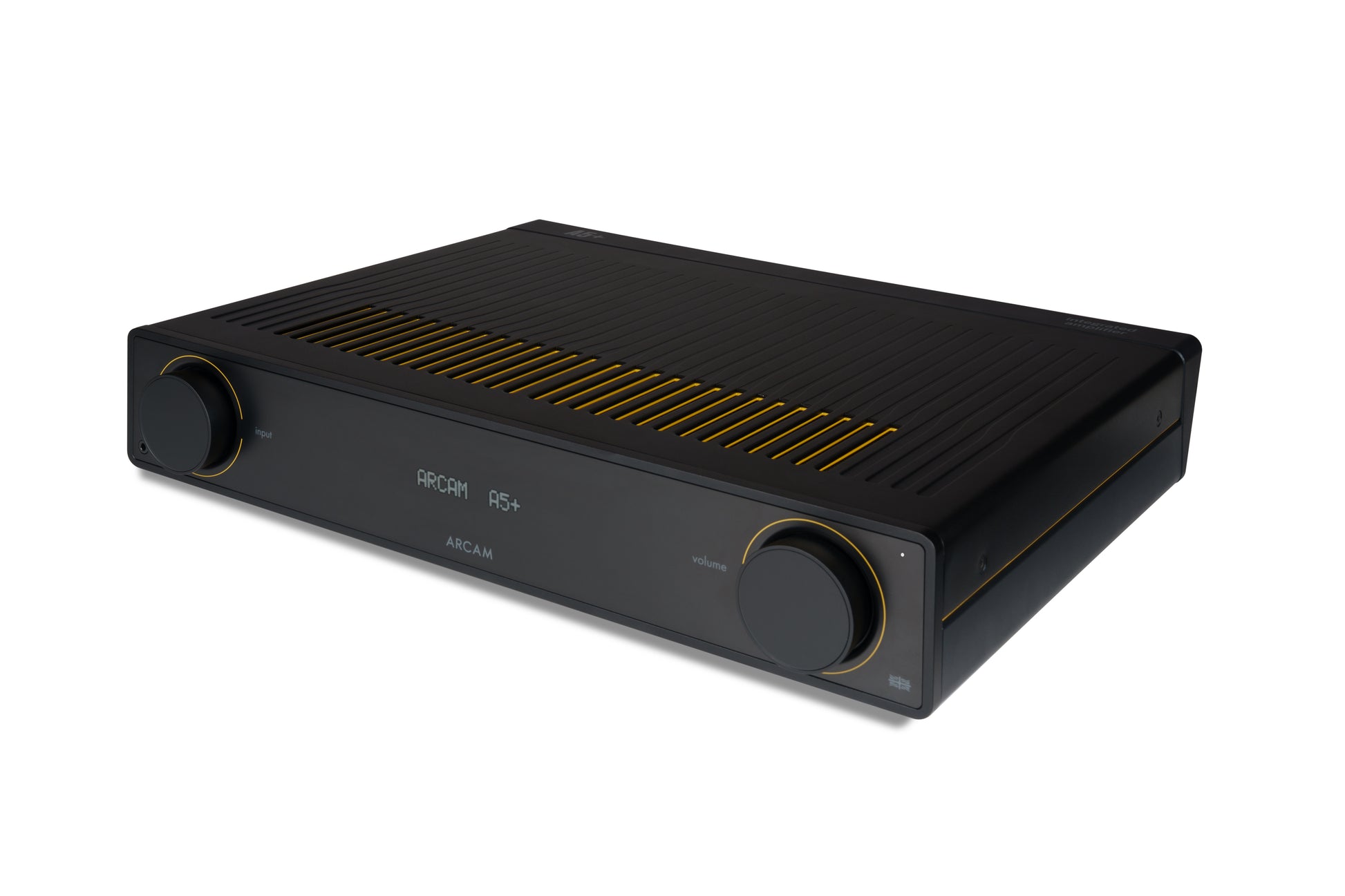

Arcam A5+ Integrated Amplifier
Arcam A5+ Integrated Amplifier
The ARCAM A5+ is for sharing intimate listening experiences with family and friends.
Couldn't load pickup availability
Description
Description
The "A" in ARCAM stands for amplification, where their expertise lies. The A5+ is the latest in nearly 50 years of amplifier design and manufacture, dating back to their first product in 1976 —the A&R Cambridge A60 amplifier. Since the launch of the award-winning ARCAM Radia A5, they haven't rested. Arcam's engineering team pushed further to create the ARCAM A5+, an even better sounding and more versatile integrated amplifier.

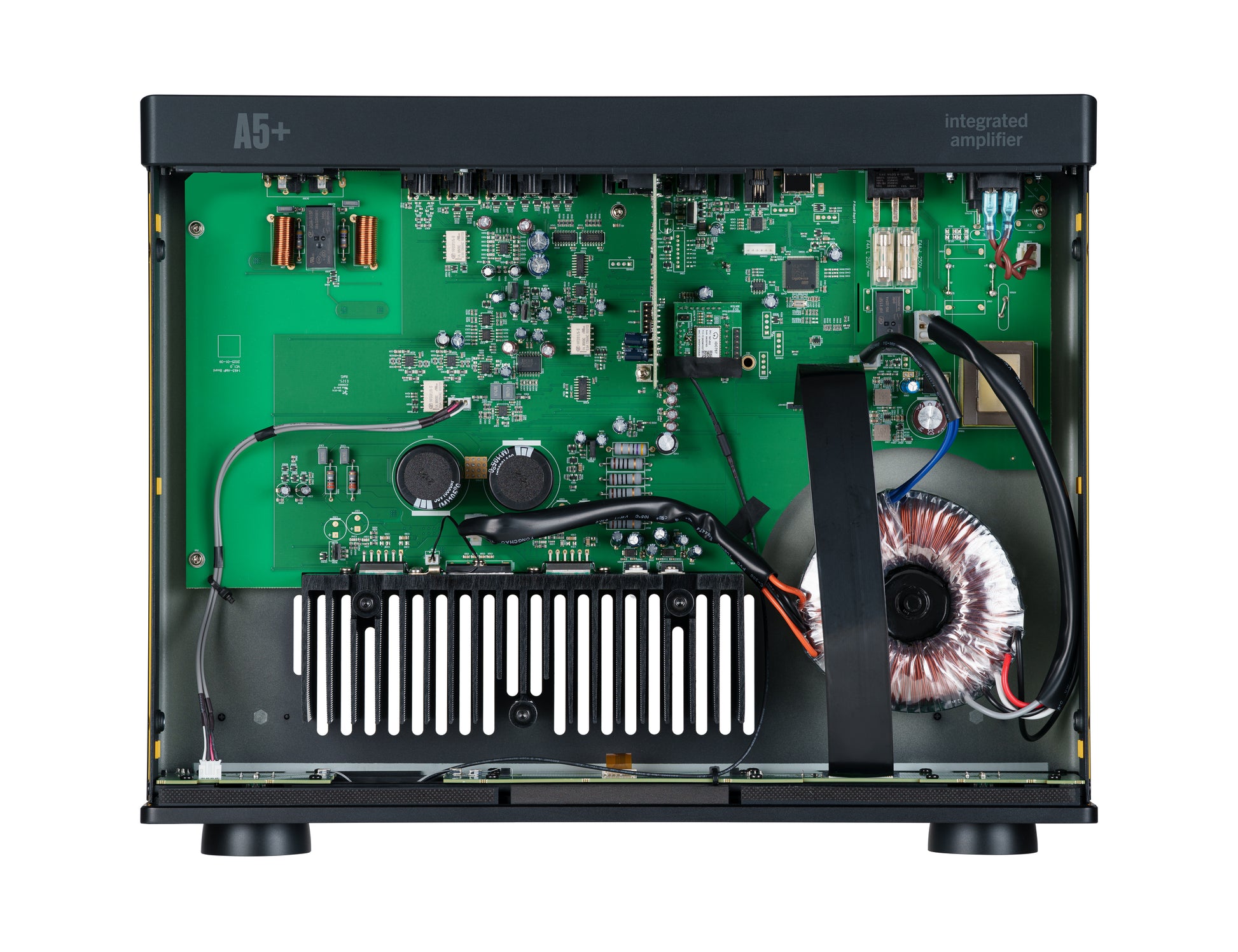

The A5+ features an enhanced power supply design and cutting-edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to share music wirelessly, with no pairing required.
With a wide array of digital and analogue inputs, including a meticulously tuned phono stage, the A5+ ensures impeccable sound quality for everything from vinyl to streaming.
- ARCAM Class AB Amplification - provides brilliant musicality
- 2x 50W Power Output - powers loudspeakers with ease
- Wireless audio with Snapdragon Sound and Auracast built-in - for the best sound with the most convenience
- Wired or Wireless Headphones - connect your headphones for quiet listening with, or without wires
- Fine-tuned phono stage - ensures your records sound as detailed and engaging as possible
- Plastic Free Packaging - for easy disposal of natural materials
Specifications
Specifications
Continuous power output (0.5% THD), per channel
- 2 channels driven, 20Hz - 20kHz, 8ohms 50W
- 2 channels driven, 1kHz, 4ohms 75W
- Harmonic distortion, 80% power, 8ohms at 1kHz 0.003%

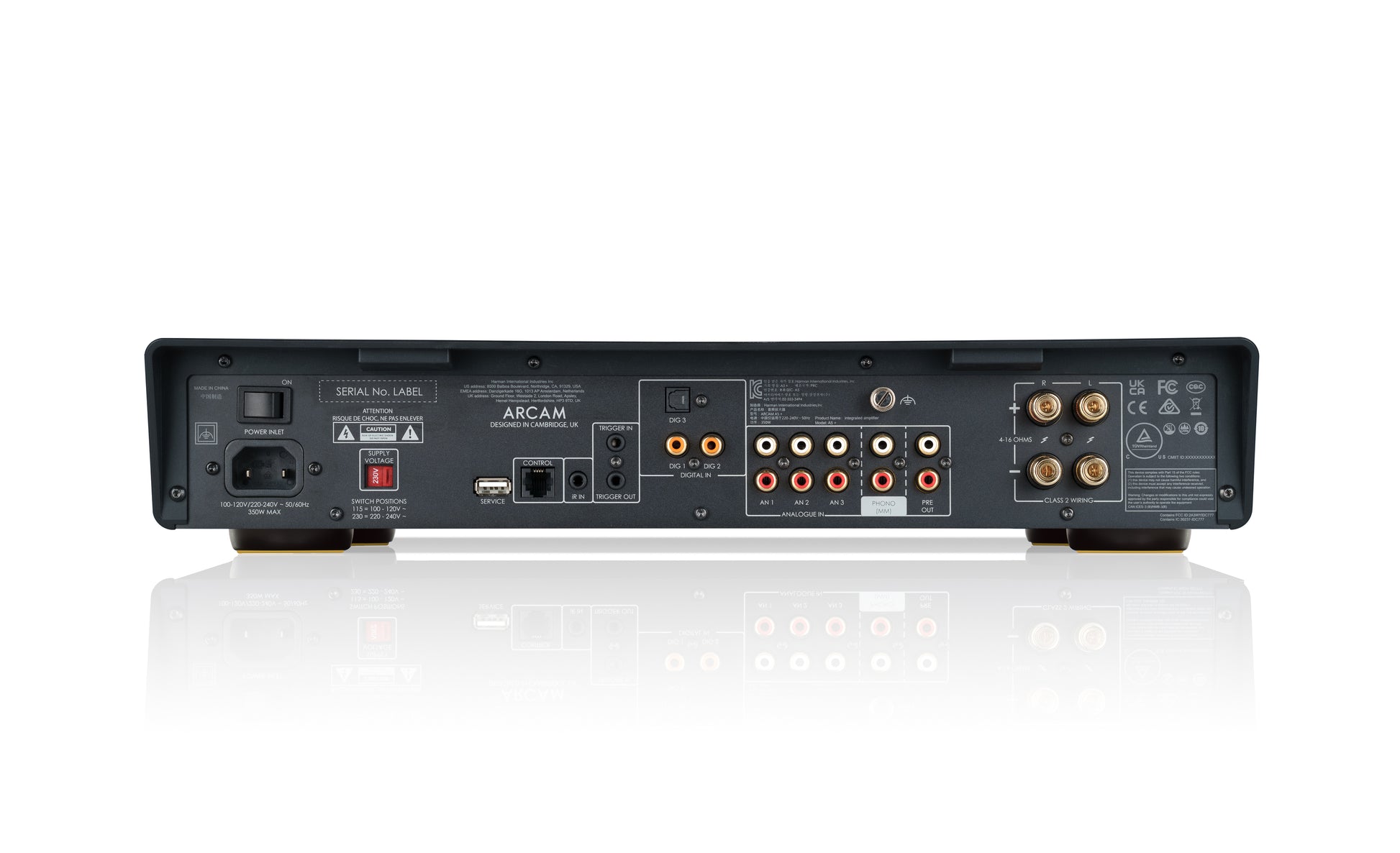

Analogue Inputs
- Number of inputs 3 (RCA pairs)
- Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB
- Frequency response 20Hz—20kHz ± 0.2dB
Phono (MM) Input
- Input impedance 47kohms + 100pF
- Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB
Digital Inputs
- Supported Sample Rates (kHz)
192, 176.4, 96, 88.2, 48, 44.1 - Bit depths (bit) 24, 16
- Frequency response (fi lter 1) 20Hz—20kHz ± 0.2dB
- Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB
Headphone Output
- Maximum output level (RMS) into 32ohms/300ohms 2.5V/5V
- Load range 16ohms - 2kohms
Wireless Specifications
Bluetooth Version - 5.4; A2DP Sink/Source, AVRCP, BLE, SBC, AAC, aptX, aptX HD and aptX Lossless, LE Audio, Auracast
Bluetooth Transmitter Frequency and Power - 2,400 MHz to 2,483.5 MHz: <20dBm
General
- Mains voltage 100V or 110–120V or 220–240V, 50–60Hz
- Power consumption (maximum) 350W
- Power consumption (standby) <0.5W
- Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 83mm
- Weight (net) 8kg
- Weight (packed) 11kg
Supplied accessories
- Mains lead(s)
- Remote control with 2 x AAA batteries
- Quick Start Guide
- Important Safety Instructions
