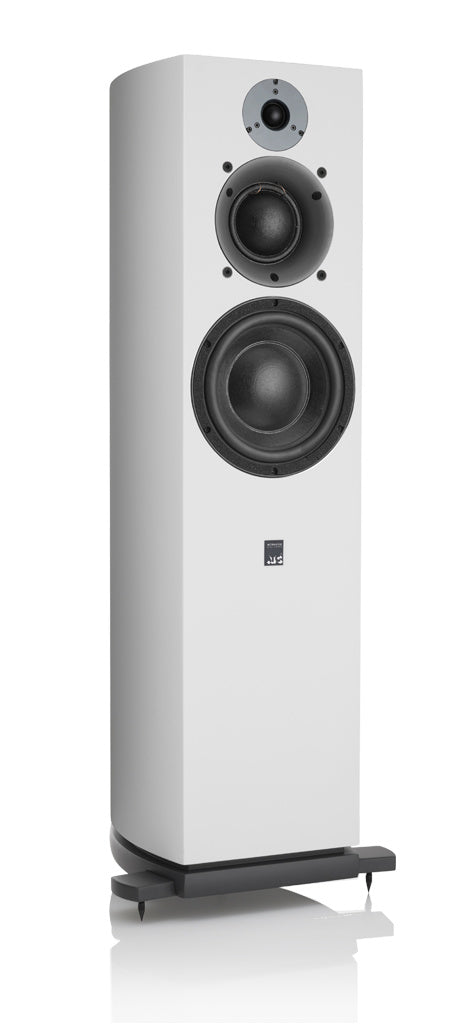

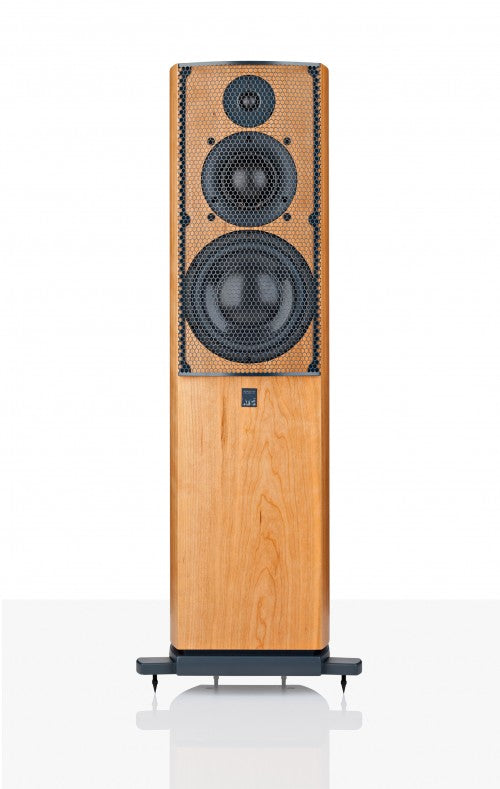

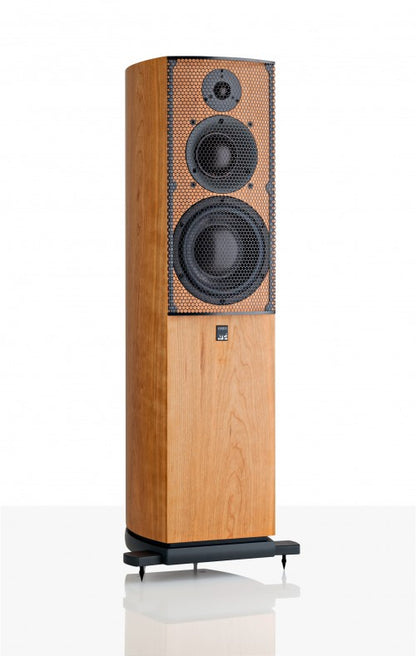

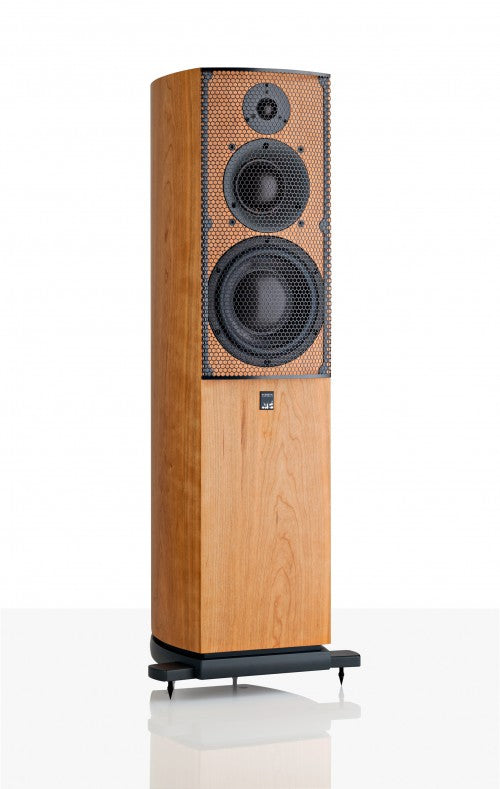

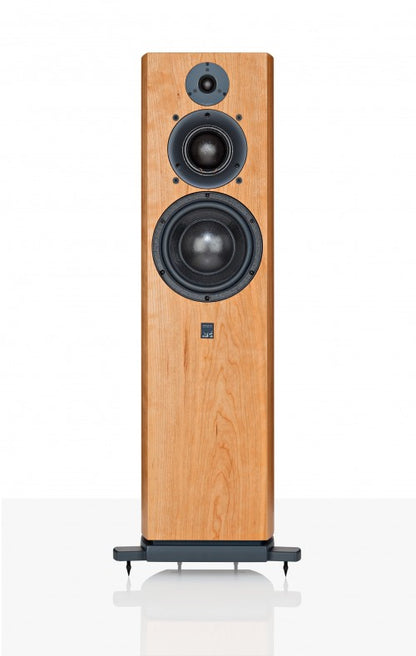

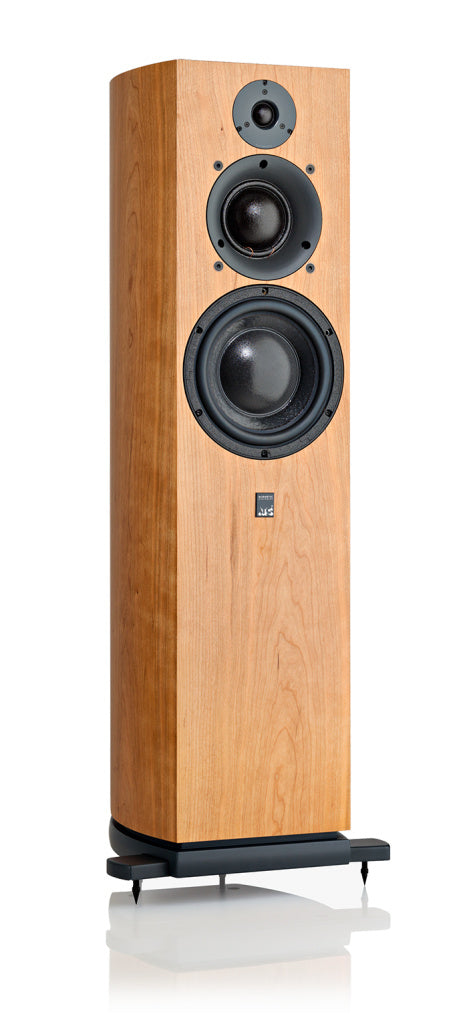

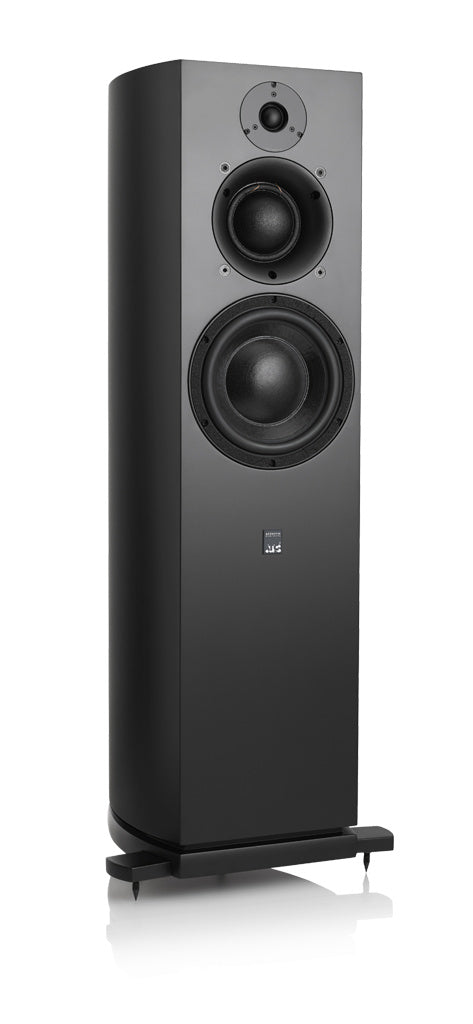

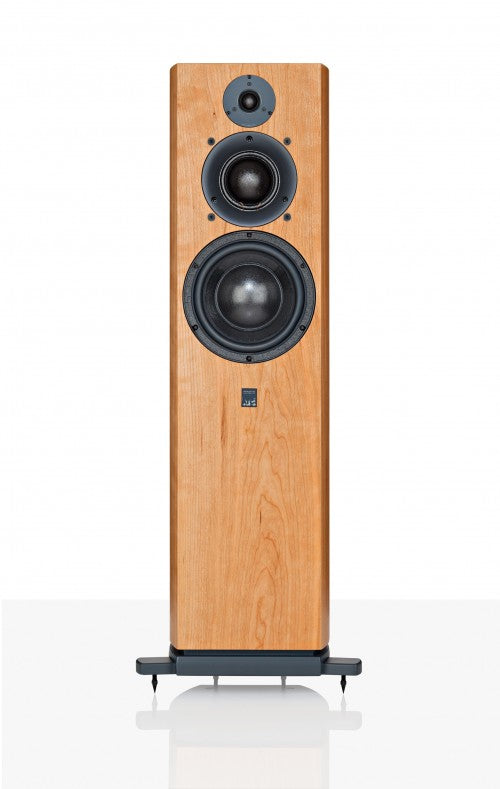

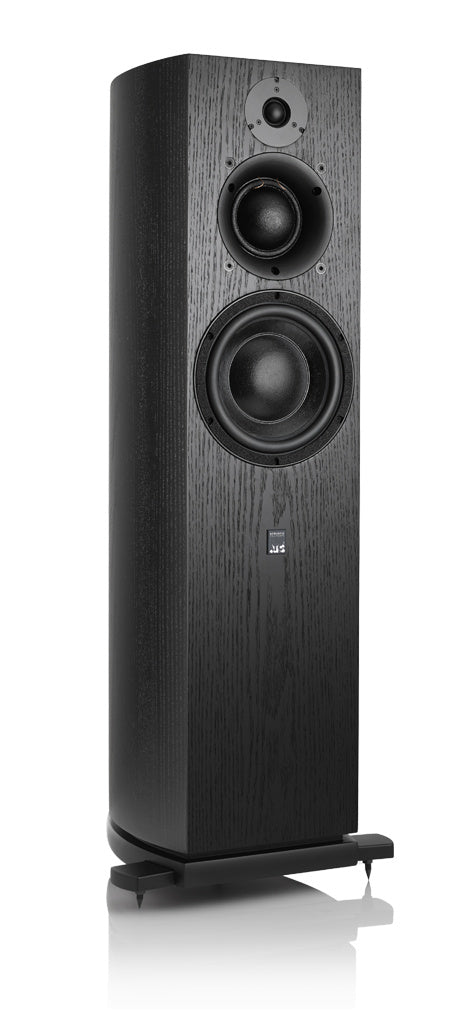

ATC SCM40A Active Floorstanding Speakers (Pair)
ATC SCM40A Active Floorstanding Speakers (Pair)
Active floorstanding speakers from ATC.
This product is only available for collection at Soundcraft
Couldn't load pickup availability
Description
Description

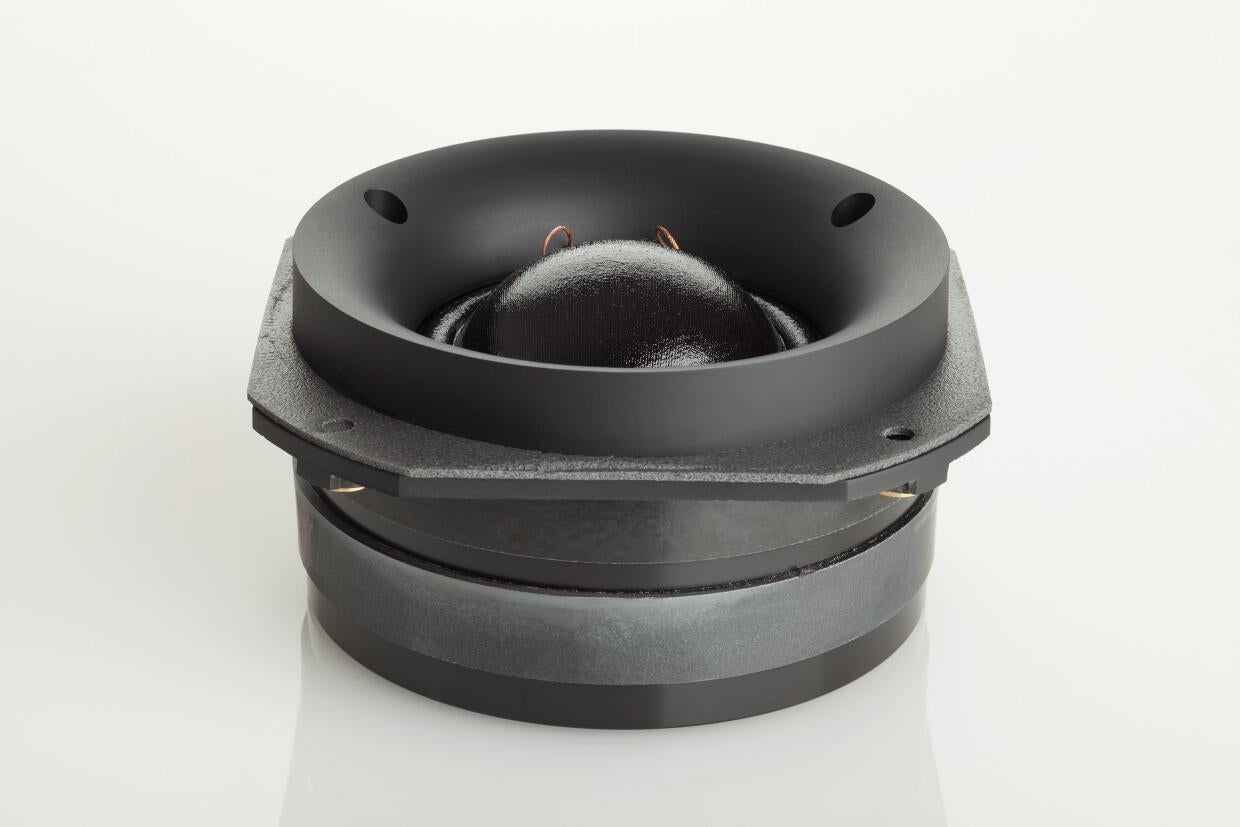

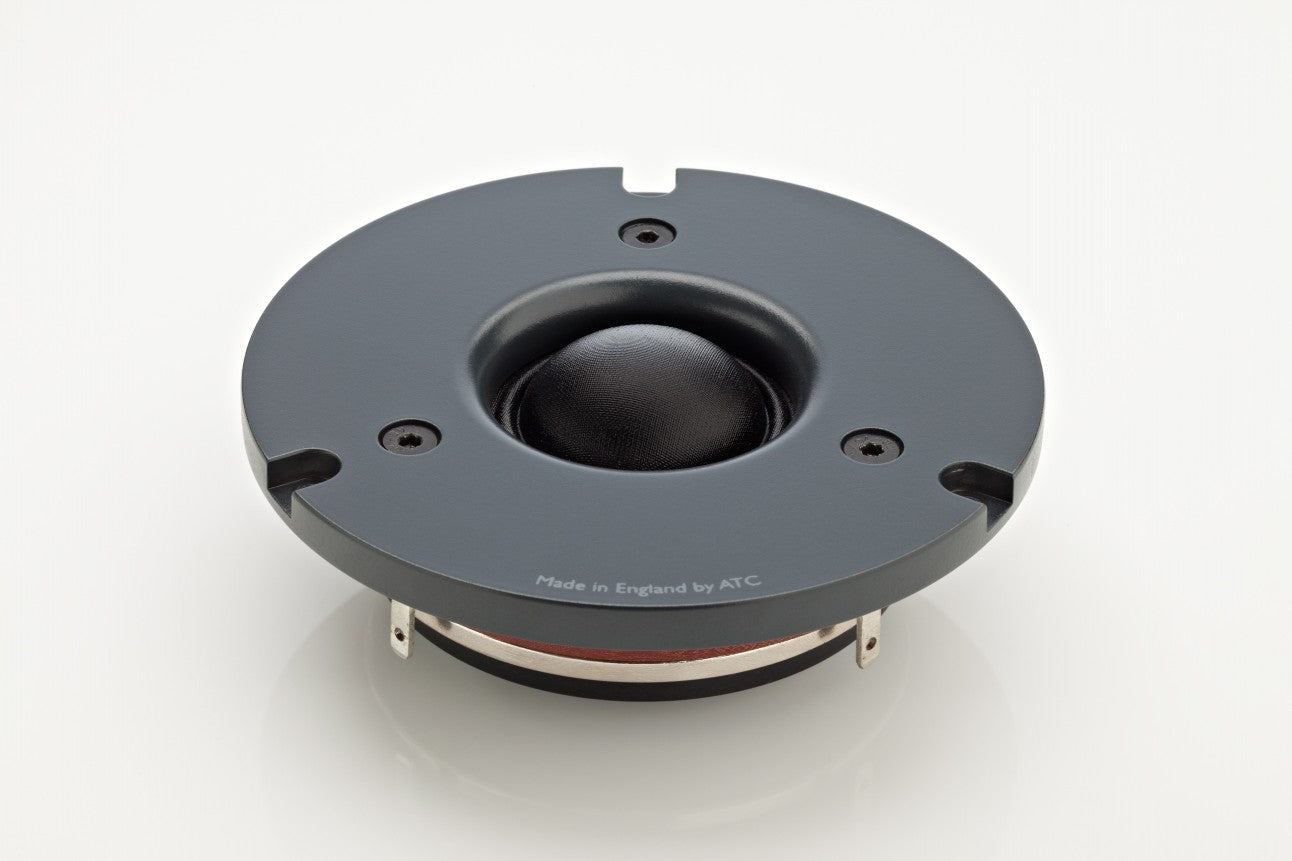

- New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide.
- ATC Soft Dome mid-range driver.

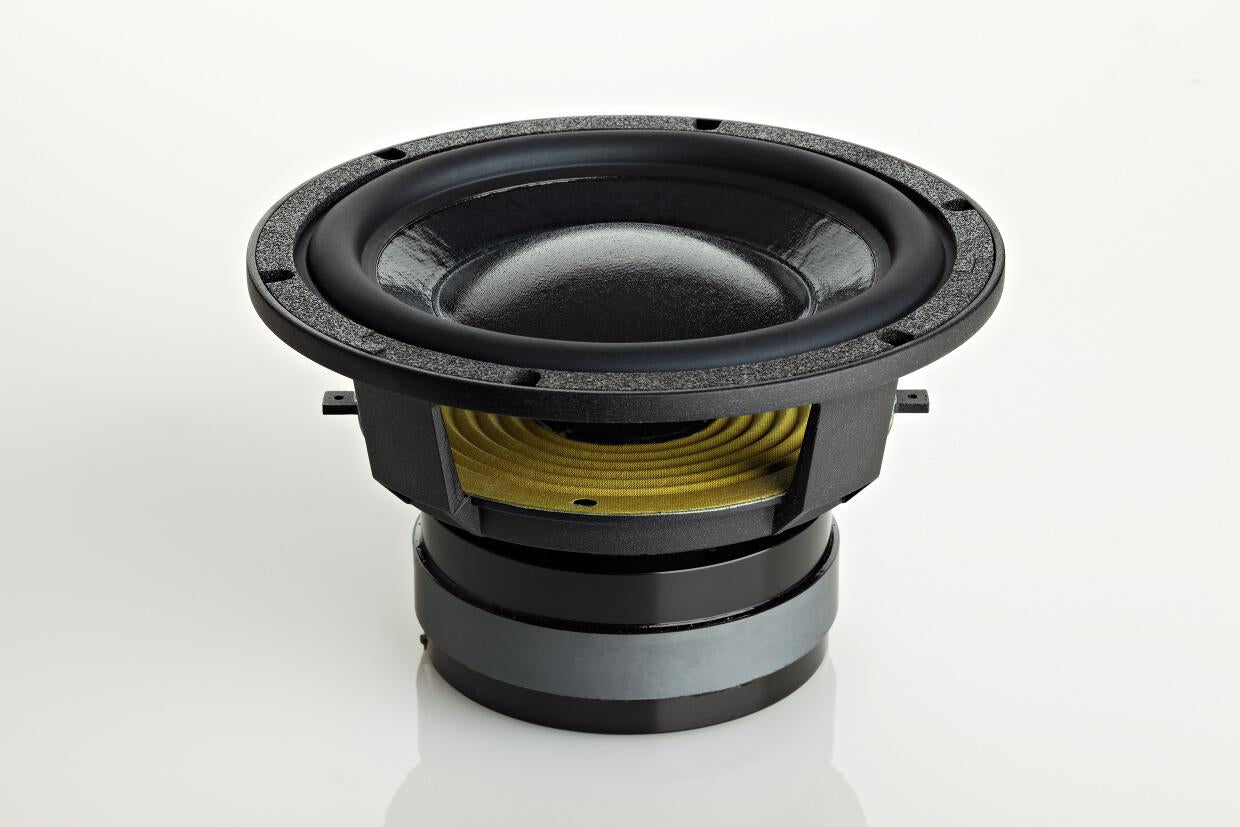

- ATC 164mm short coil bass driver.
- All drive units incorporate massive optimised motor assemblies.
- On-board grounded source 242 watt Class A/B Tri-amplifier.
- Active crossover filters and overload protection.
- 6 year warranty.
Specifications
Specifications
Drivers:
HF ATC 25mm dual suspension Tweeter, Mid 75mm ATC Soft Dome, LF ATC 164mm SC
Matched Response:
±0.5dB
Frequency Response (-6dB):
48Hz-22kHz
Dispersion:
±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL:
112dB
Crossover Frequencies:
380Hz & 3.5kHz
Connectors:
Male XLR
Input sensitivity:
1V
Filters:
4th Order critically damped with phase compensation.
Overload Protection:
Active FET momentary gain reduction.
Fault Protection:
DC fault protection and thermal trip. Fault indication on rear panel mounted LED.
Amplifier Output:
150W LF, 60W MF, 32W HF
Cabinet Dimensions (HxWxD):
980 x 370 x 344mm (inc. foot plinth & amp, spikes add 25mm to height, grill adds 34mm to depth)
Weight:
36kg
Awards & Reviews
Awards & Reviews
What Hi-Fi?
"If you want a pair of speakers that play really loudly without turning hard or edgy these would be an excellent choice. At higher levels their punch is deeply impressive, as is their depth and power at low frequencies."
★★★★★ | READ MORE
The Ear
"If you want to hear right into every track, to feel the bass and enjoy real depth of three dimensional image, this is a very hard act to beat."
BEST BUY AWARD | READ MORE
Stereonet
"Talented, dynamic, and fun, with a soundstage wide and deep enough for you to forget about the cabinets standing in your room, ATC's SCM40A makes a great case for itself."
APPLAUSE AWARD | READ MORE
2 Year Warranty
2 Year Warranty
+ 4 Year Extended Warranty available (totalling to 6 years) when you register your product on the ATC website within 30 days of purchase.
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
