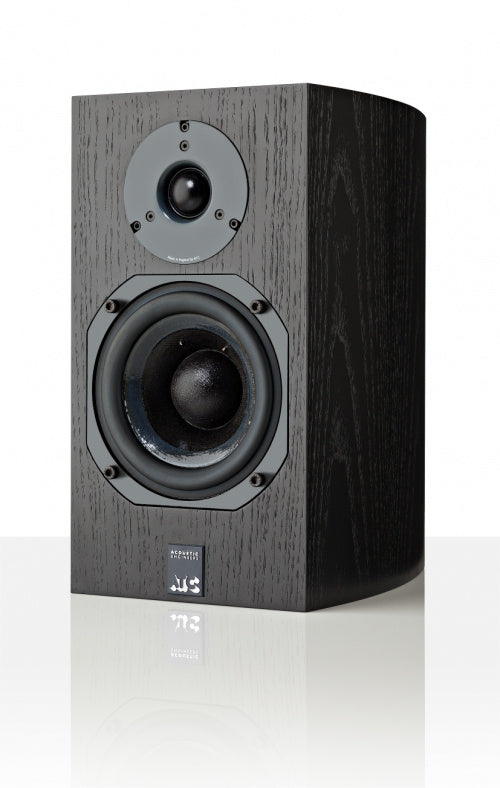

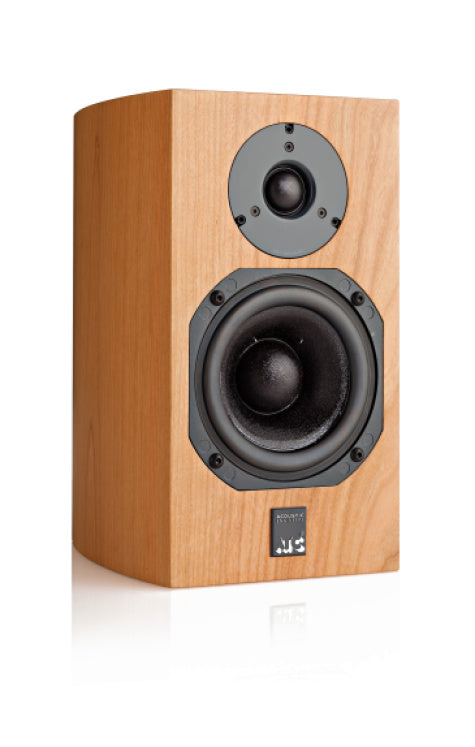

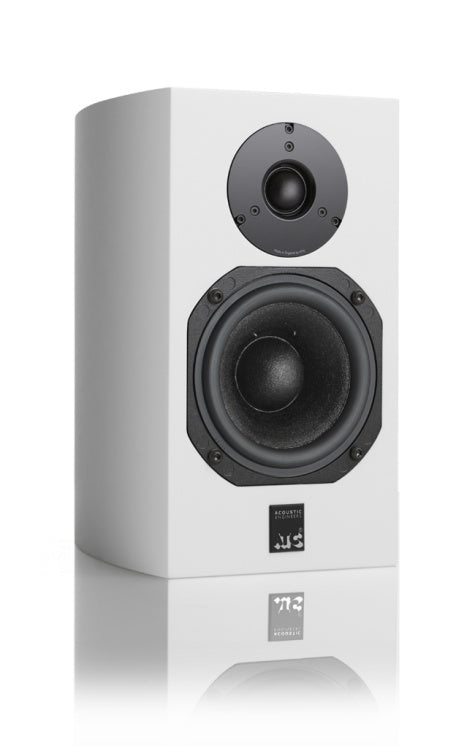

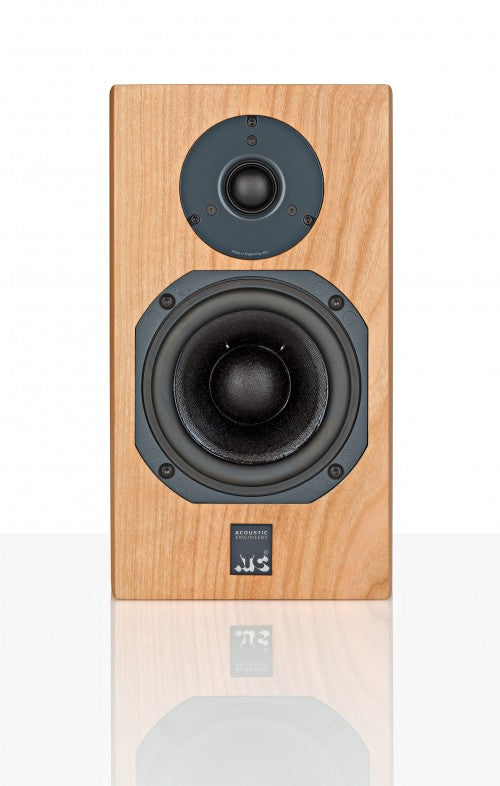

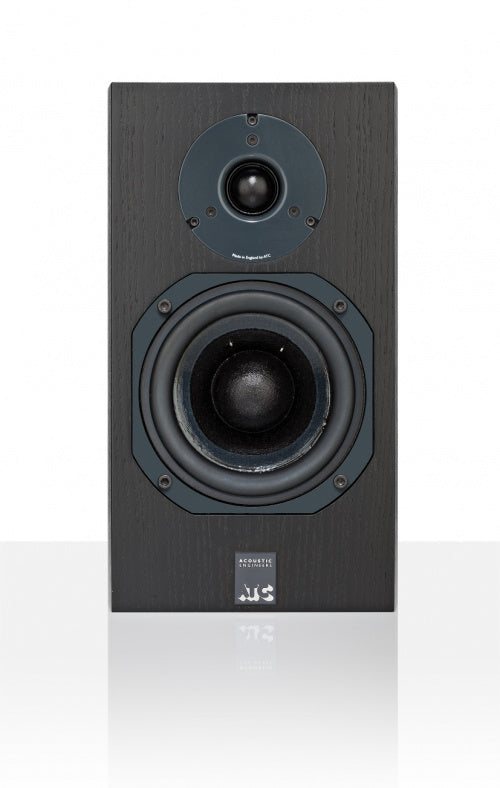

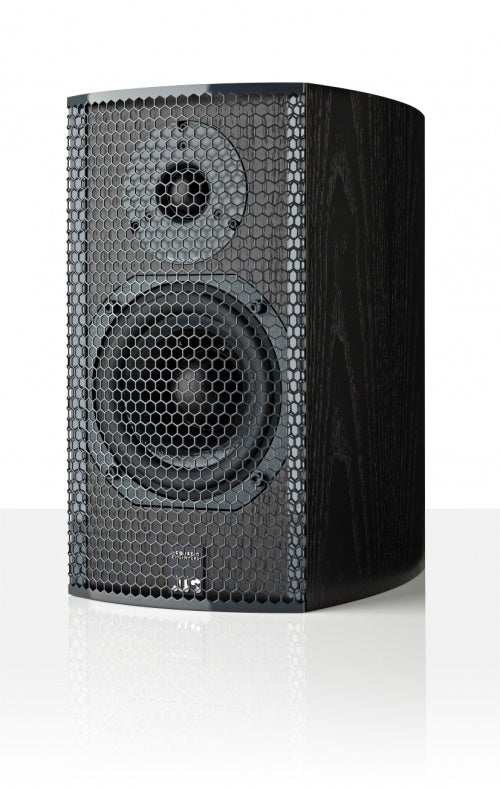

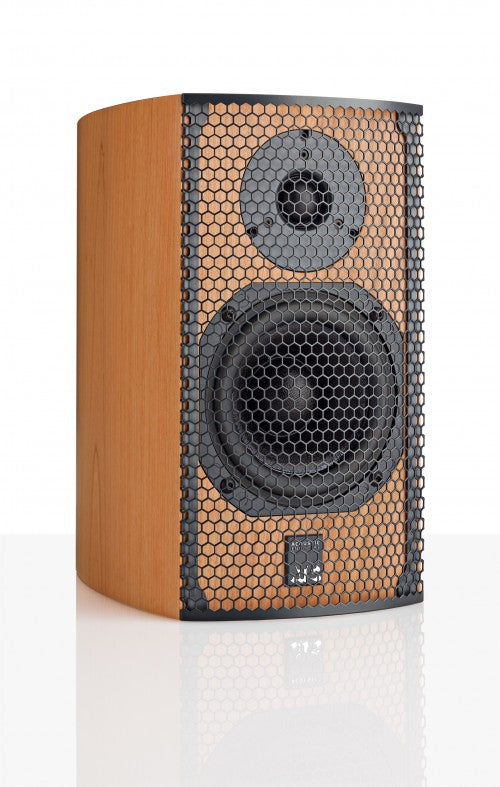

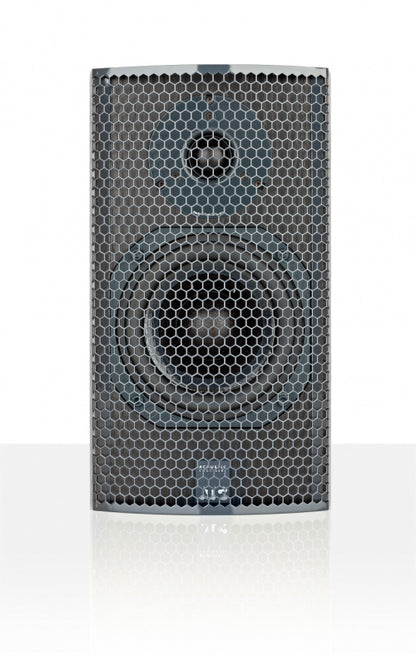

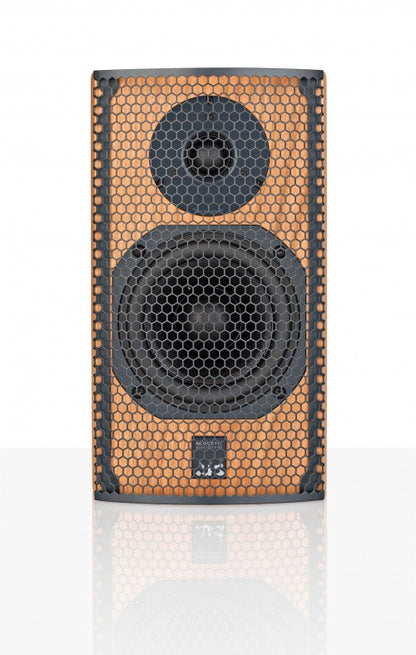

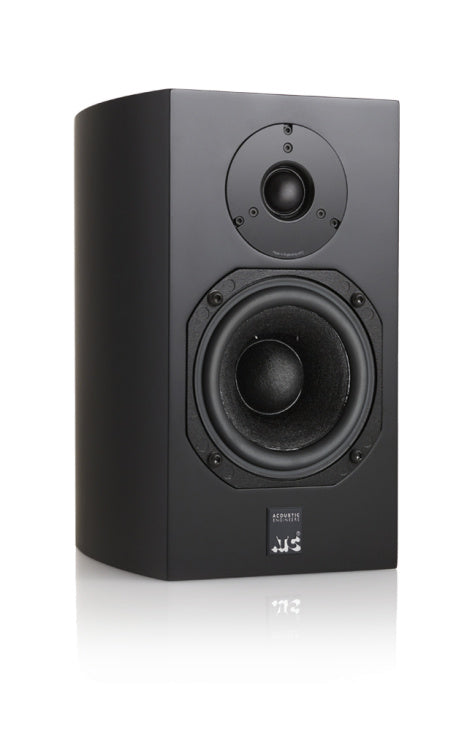

ATC SCM7 Standmount Speakers (Pair)
ATC SCM7 Standmount Speakers (Pair)
Passive standmount speakers from ATC.
This product is only available for collection at Soundcraft
Couldn't load pickup availability
Description
Description

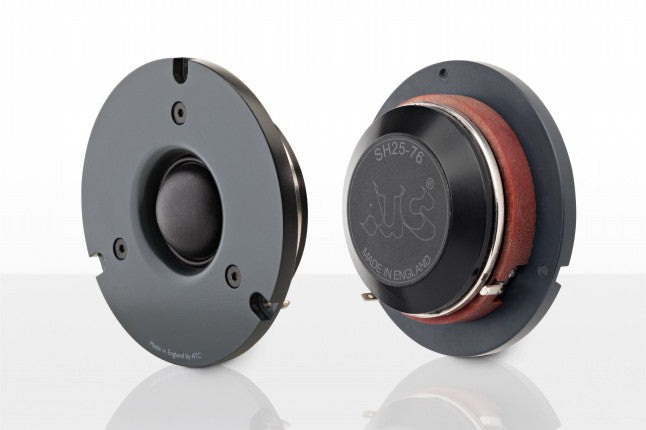

- New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

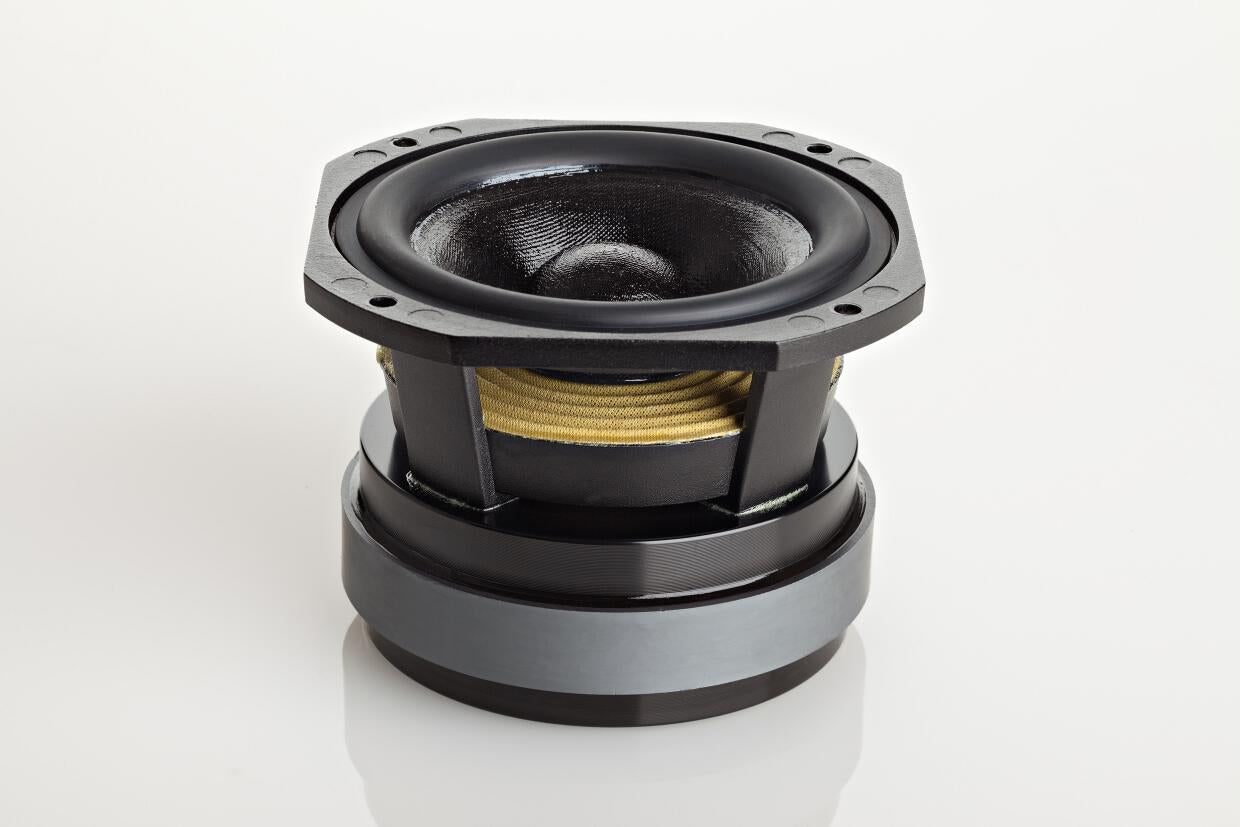

- 125mm ATC mid/bass unit with integral soft dome.
- In-house, hand-wound precision flat wire coil.
- Massive optimised motor assembly.
- Flat impedance curve allowing easy load for amplifiers.
- 6 year warranty.
Specifications
Specifications
Drivers:
HF ATC 25mm Neodymium Soft Dome, Mid/LF ATC 125mm SC
Matched Response:
±0.5dB
Frequency Response (-6dB):
60Hz-22kHz
Dispersion:
±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity:
84dB @ 1W @ 1metre
Max SPL:
103dB
Recommended Power Amplifier:
75 to 300 Watts
Nominal Impedance:
8 Ohm
Crossover Frequency:
2.5kHz
Connectors:
Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD):

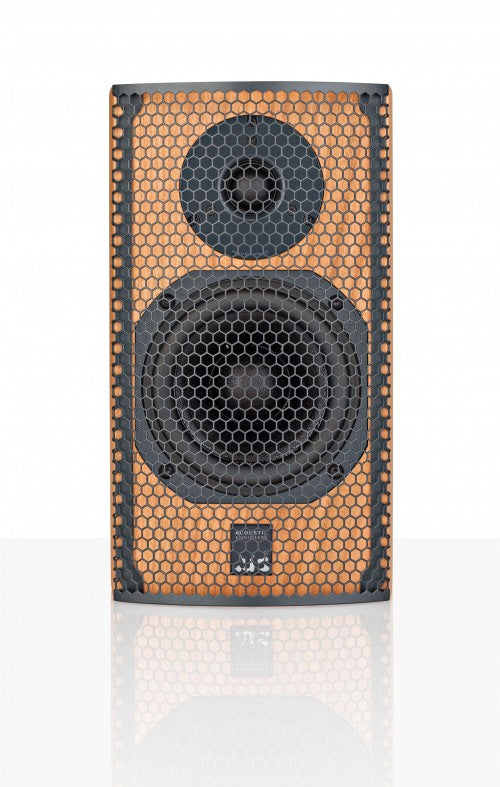

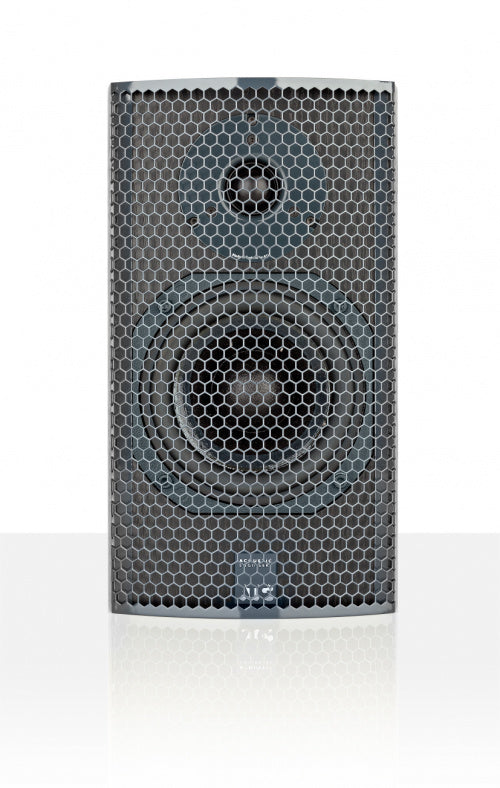

300x174x215mm (grill adds 28mm depth)
Weight:
7.5kg
2 Year Warranty
2 Year Warranty
+ 4 Year Extended Warranty available (totalling to 6 years) when you register your product on the ATC website within 30 days of purchase.
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
