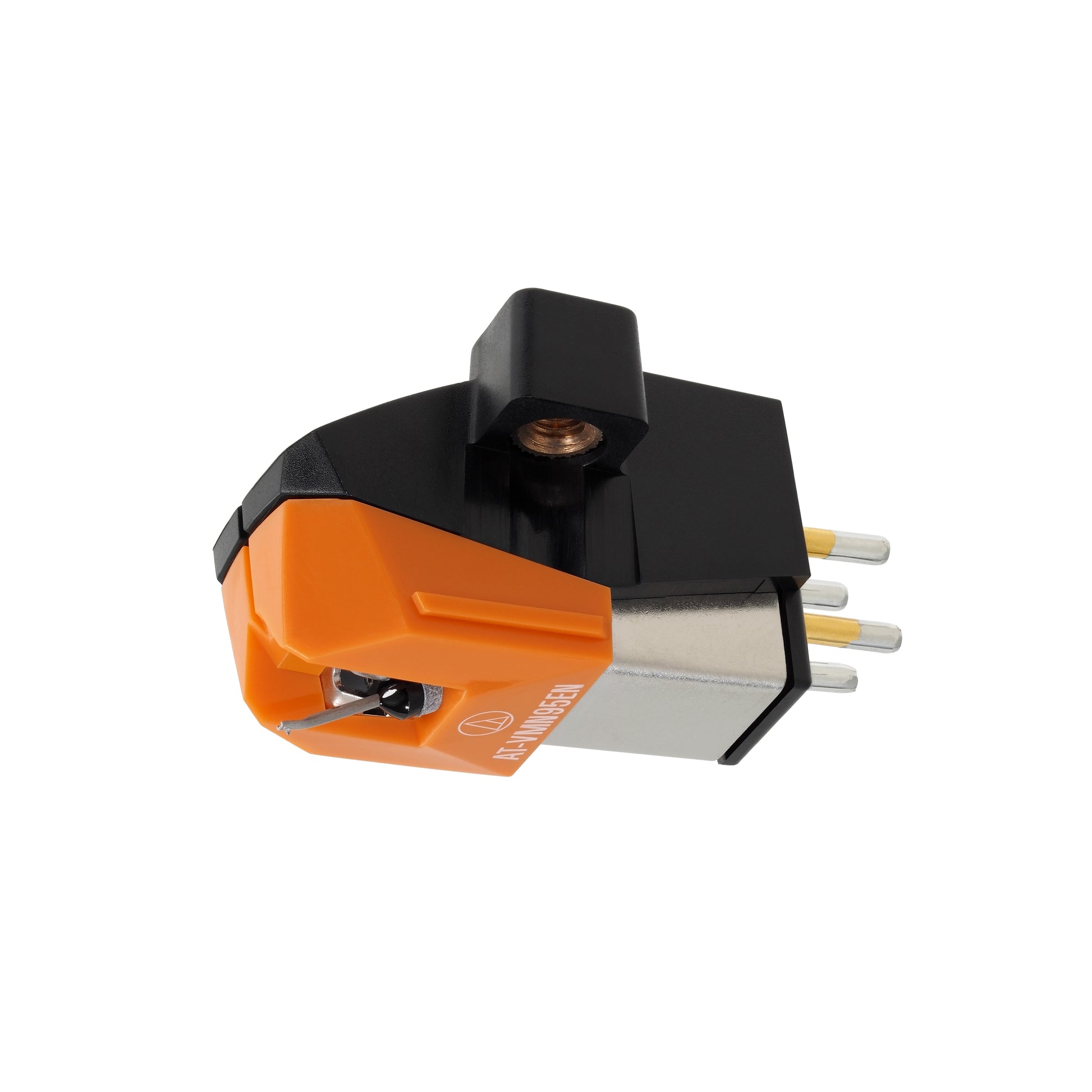

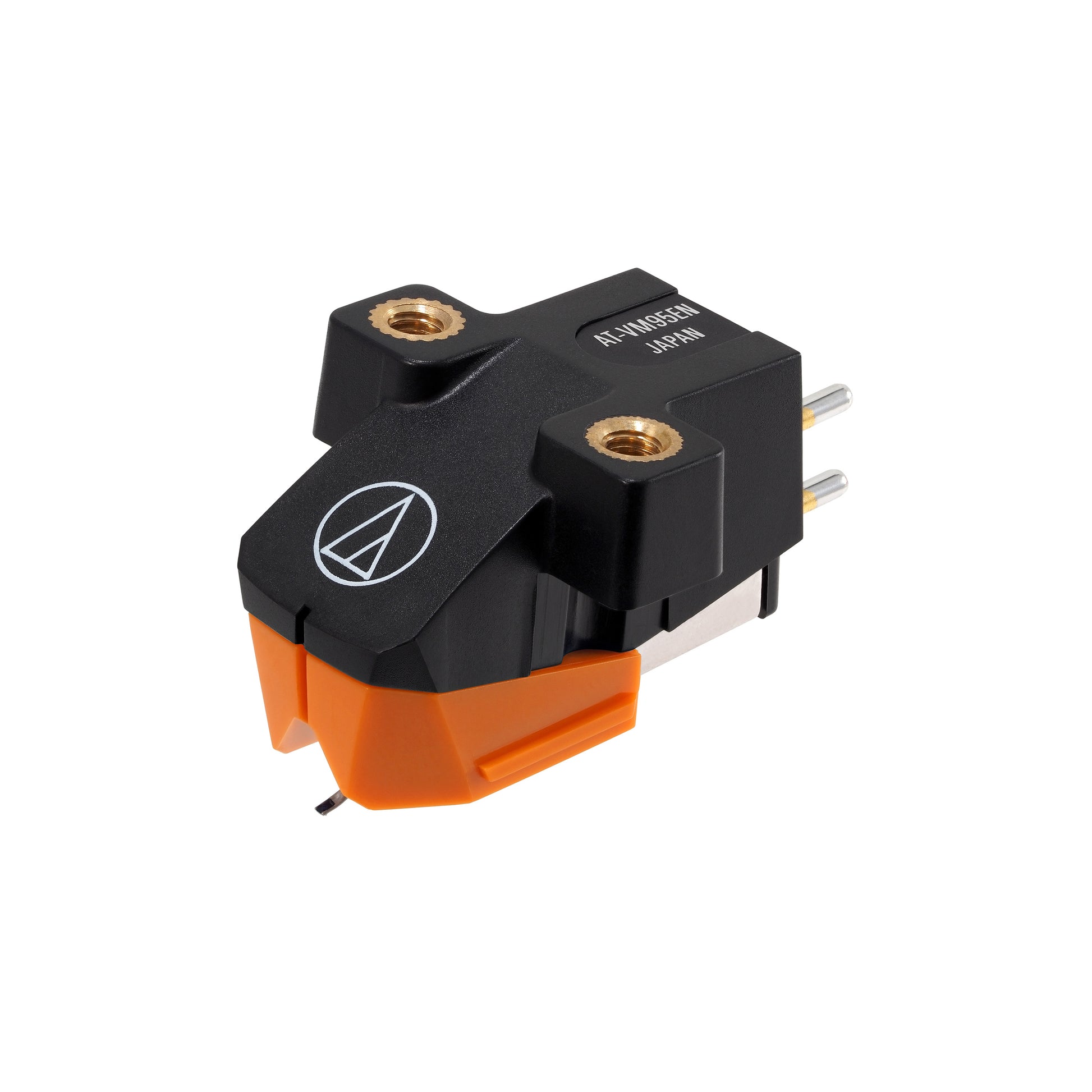

Audio Technica AT-VM95EN Moving Magnet Cartridge
Audio Technica AT-VM95EN Moving Magnet Cartridge
VM95 Series Elliptical Nude stereo cartridge
Couldn't load pickup availability
Description
Description
VM95 series Elliptical Nude stereo cartridge
The AT-VM95EN, features a Nude Elliptical Diamond. The construction of the stylus being a one piece diamond with a round shank inserted in the cantilever creates a lighter and more rigid transmission system than a diamond tip bonded on a round titanium shank such as in the AT-VM95E. Also the use of nude diamond implies a substantial difference in pricing, yet the quality of the reproduction will be immediately noticed, specifically in the fidelity of high frequencies and in the quality of the transient responses.
- Aluminium cantilever
- 3.5mV output voltage
- Compatible body with all VM95 Series stylus assemblies
- 20 to 23,000Hz frequency response
VM95 Series - Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.
Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.
The VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.
The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.
- AT-VMN95C
- AT-VMN95E
- AT-VMN95EN
- AT-VMN95ML
- AT-VMN95SH
- AT-VMN95SP

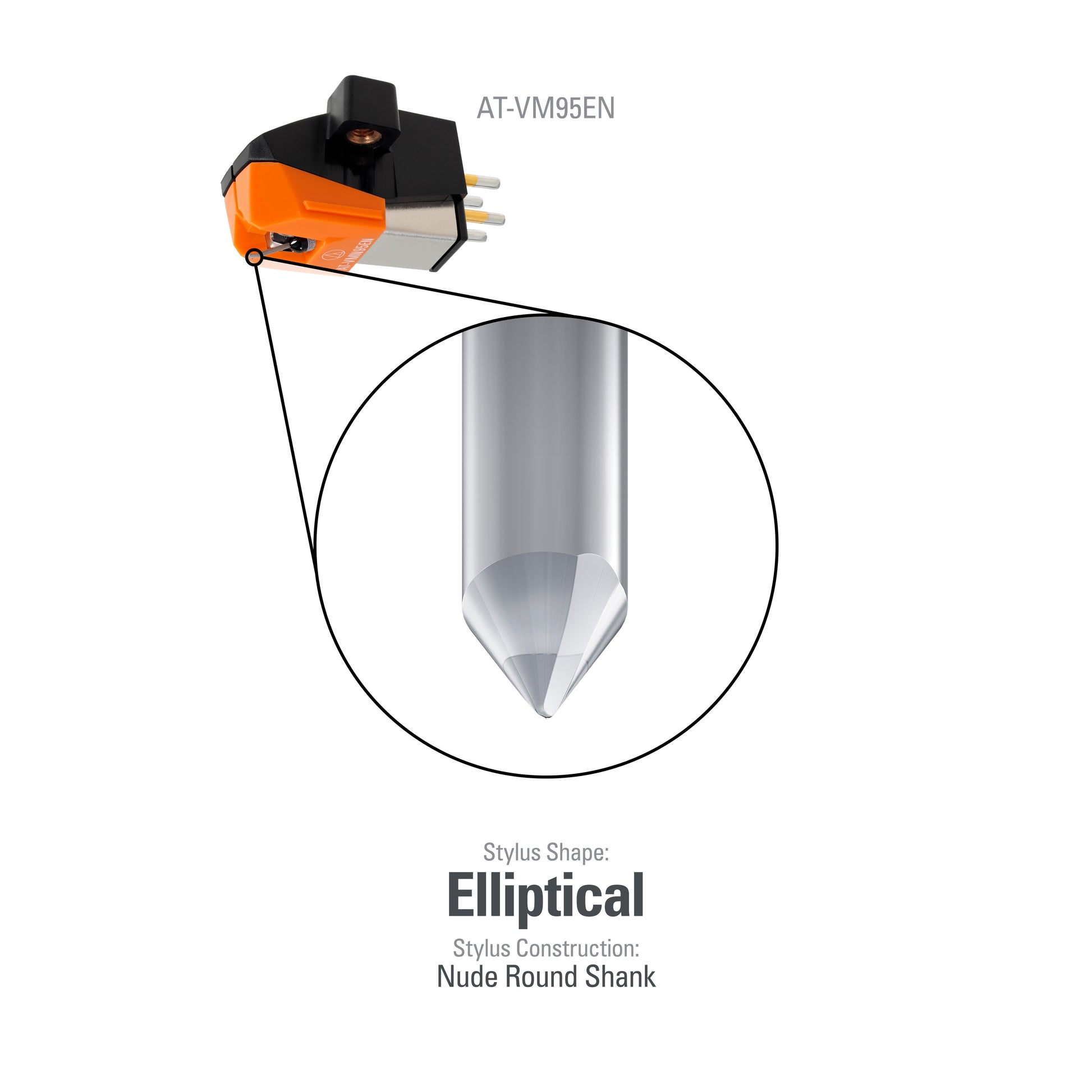

Elliptical Nude Stylus
Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.
No use of nuts
VM95 Series cartridges features two M2.6 threaded inserts allowing the installation of the cartridge onto tonearm or removable headshell without the use of nuts.Each cartridge is provided with one pair of 8mm M2.6 screws, one pair of 11mm M2.6 screws and two plastic washers.
Specifications
Specifications
Frequency Response
20 - 23,000 Hz
Channel Separation
22 dB (1 kHz)
Vertical Tracking Angle
23°
Stylus Construction
Nude Round Shank
Recommended Load Impedance
47,000 O
Coil Impedance
3.3 kO (1 kHz)
DC Resistance
485 O
Coil Inductance
550 mH (1 kHz)
Output Voltage
3.5 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance
2.0 dB (1 kHz)
Stylus Shape
Elliptical
Cantilever
Aluminium Pipe
Static Compliance
20 x 10 – 6 cm / dyne
Dynamic Compliance
7 x 10 – 6 cm / dyne (100 Hz)
Mounting
1/2” centres
Cartridge Weight
6.1g
Dimensions
17.2 x 18.9 x 28.3 ( H x W x D mm)
Accessories Included
Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Non-magnetic screwdriver
Model
AT-VM95EN
Recommended Load Capacitance
100-200 pF
Replacement Stylus
AT-VMN95EN
Stylus Size
0.3 x 0.7 mil
Type
VM Stereo Dual Magnet
Wire Used for Coil
T.P. Copper
