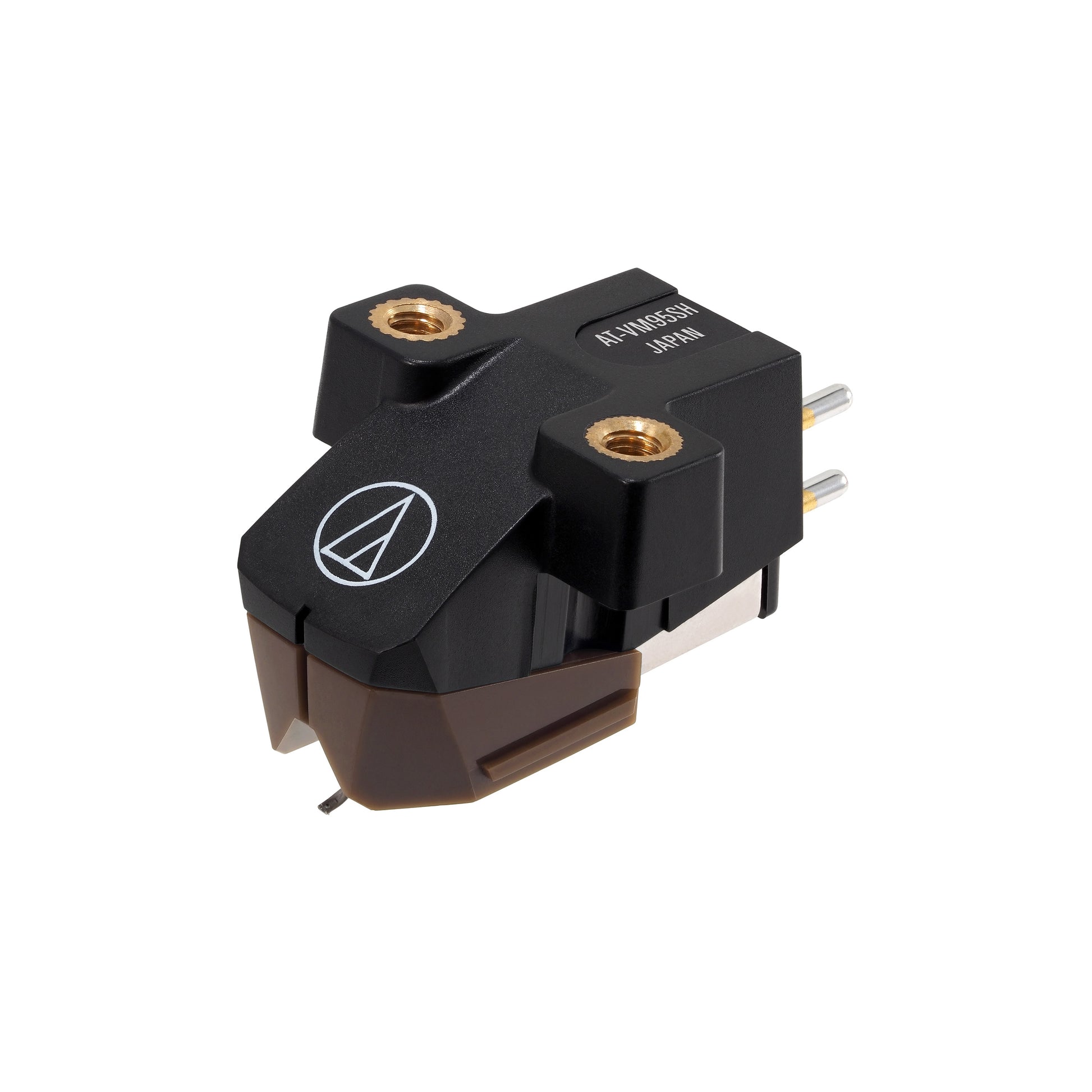

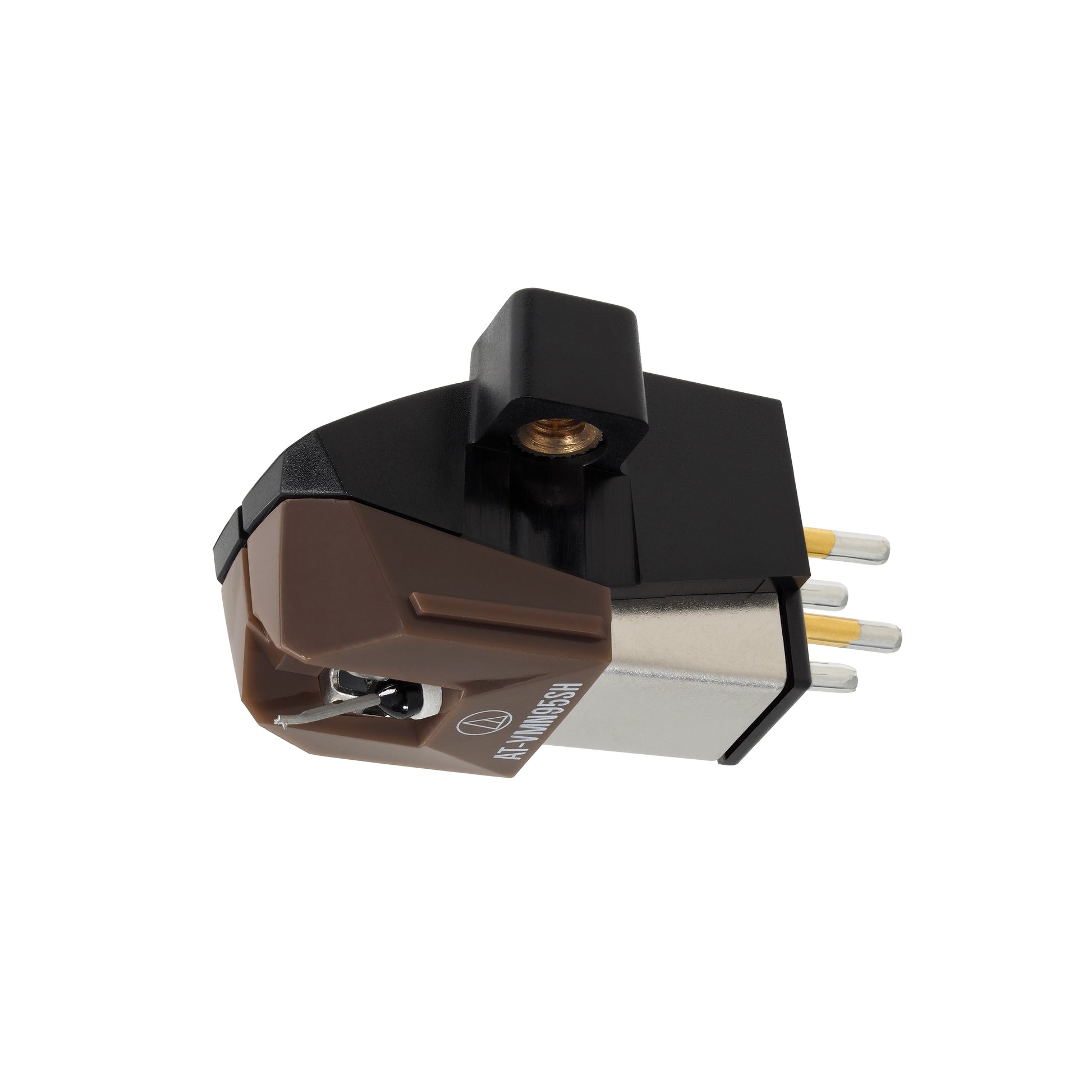

Audio Technica AT-VM95SH Moving Magnet Cartridge
Audio Technica AT-VM95SH Moving Magnet Cartridge
VM95 Series Shibata stereo cartridge
Couldn't load pickup availability
Description
Description
VM95 Series Shibata stereo cartridge
The AT-VM95SH, features a Nude Shibata stylus, one of the most acclaimed stylus format by high end audiophiles. The Shibata stylus produces mid and bass sounds strong and rich in addition to offer a frequency response up to 25,000 Hz.
- Aluminium cantilever
- 3.5mV output voltage
- Compatible body with all VM95 Series stylus assemblies
- 20 to 25,000Hz frequency response
VM95 Series - Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.
Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.
The VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.
The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.
- AT-VMN95C
- AT-VMN95E
- AT-VMN95EN
- AT-VMN95ML
- AT-VMN95SH
- AT-VMN95SP

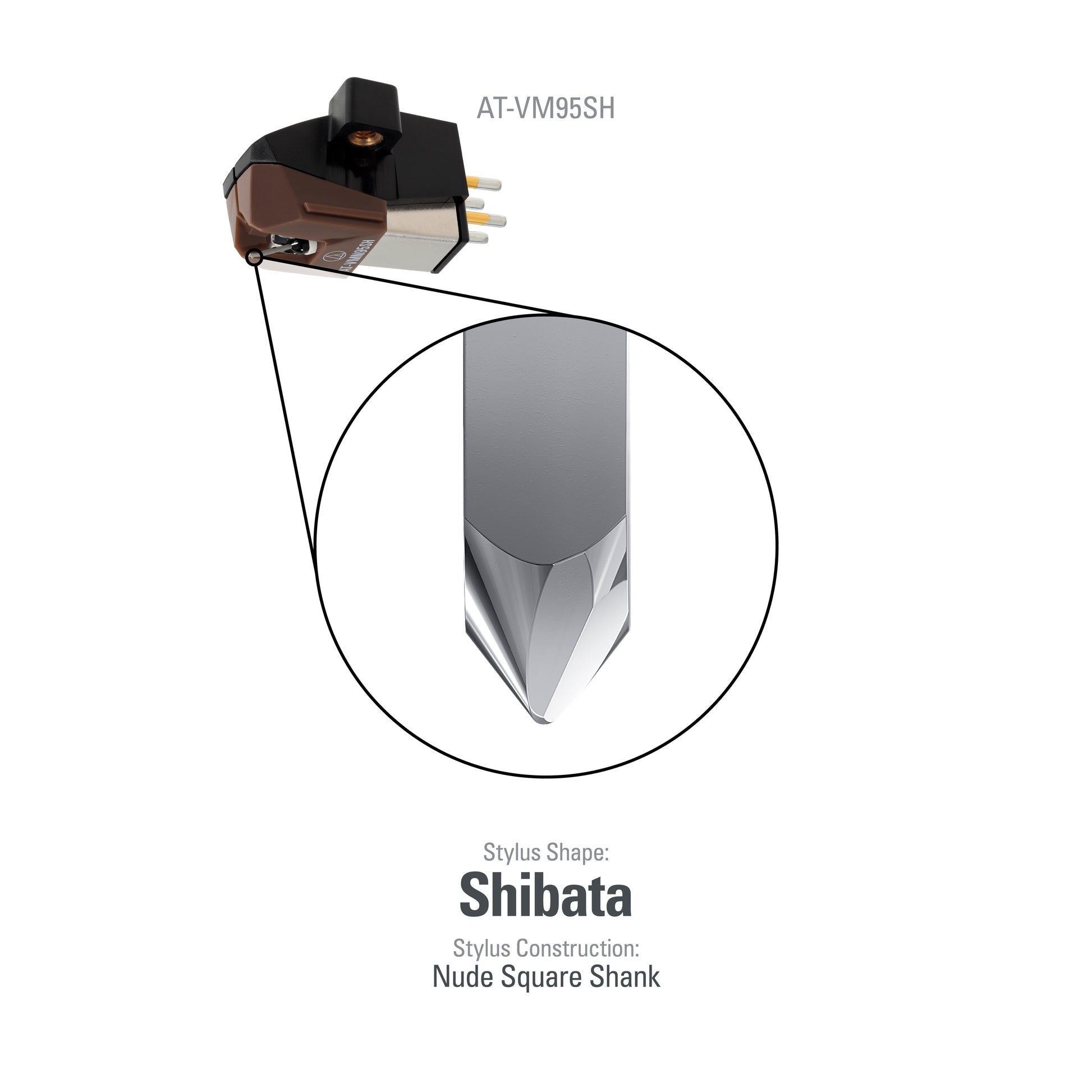

Shibata Stylus
Provides a beautiful mid-high range Shibata-signature sound and strong mid-range volume.
No use of nuts
VM95 Series cartridges features two M2.6 threaded inserts allowing the installation of the cartridge onto tonearm or removable headshell without the use of nuts.Each cartridge is provided with one pair of 8mm M2.6 screws, one pair of 11mm M2.6 screws and two plastic washers.
Specifications
Specifications
Frequency Response
20 - 25,000 Hz
Channel Separation
23 dB (1 kHz)
Vertical Tracking Angle
23°
Stylus Construction
Nude Square Shank
Recommended Load Impedance
47,000 ohms
Coil Impedance
3.3 kohms (1 kHz)
DC Resistance
485 ohms
Coil Inductance
550 mH (1 kHz)
Output Voltage
3.5 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance
1.5 dB (1 kHz)
Stylus Shape
Shibata
Cantilever
Aluminium Pipe
Static Compliance
20 x 10 – 6 cm / dyne
Dynamic Compliance
10 x 10 – 6 cm / dyne (100 Hz)
Mounting
1/2” centres
Cartridge Weight
6.1g
Dimensions
17.2 x 18.9 x 28.3 ( H x W x D mm)
Accessories Included
Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Non-magnetic screwdriver
Model
AT-VM95SH
Recommended Load Capacitance
100-200 pF
Replacement Stylus
AT-VMN95SH
Stylus Size
2.7 x 0.26mil
Type
VM Stereo Dual Magnet
Wire Used for Coil
T.P. Copper
