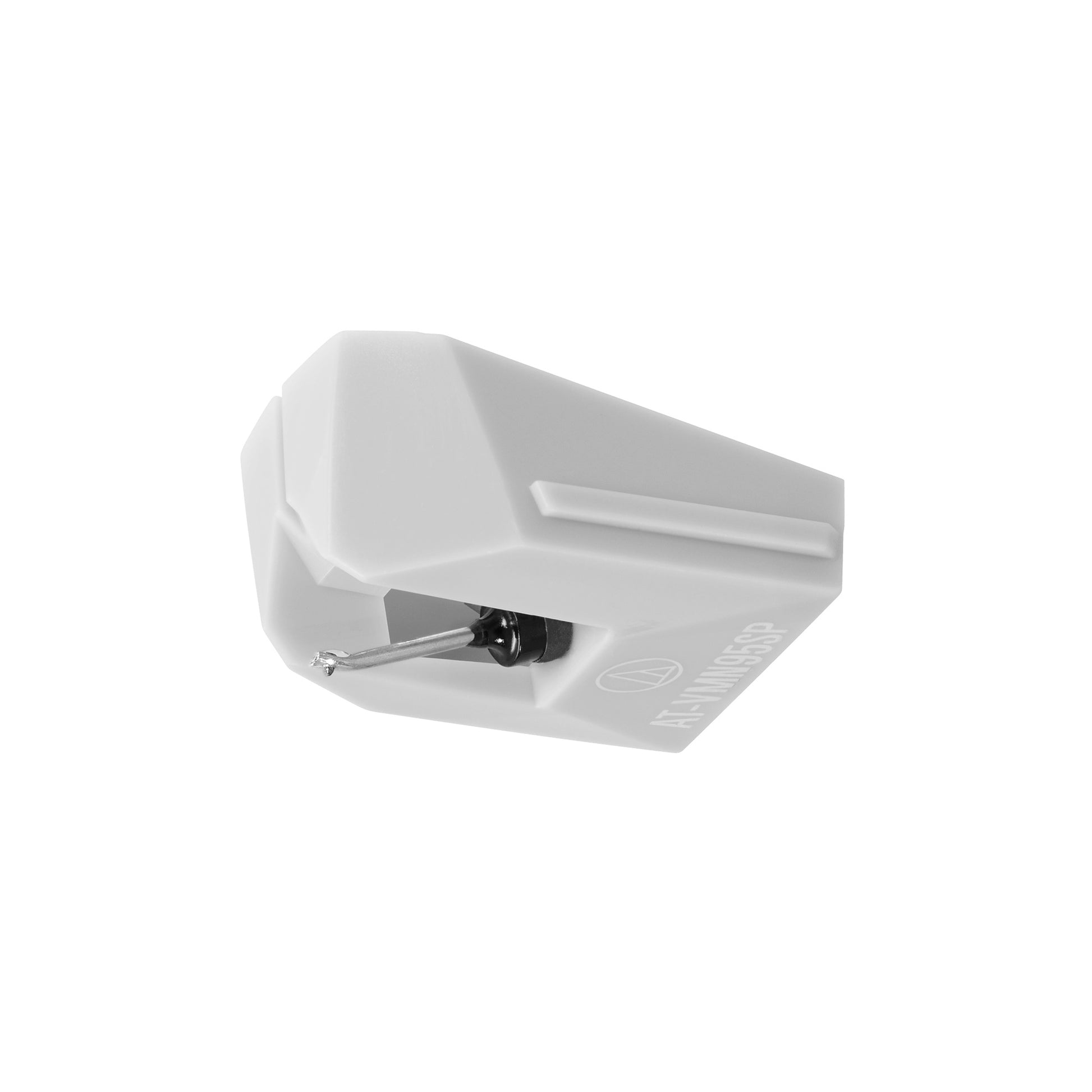

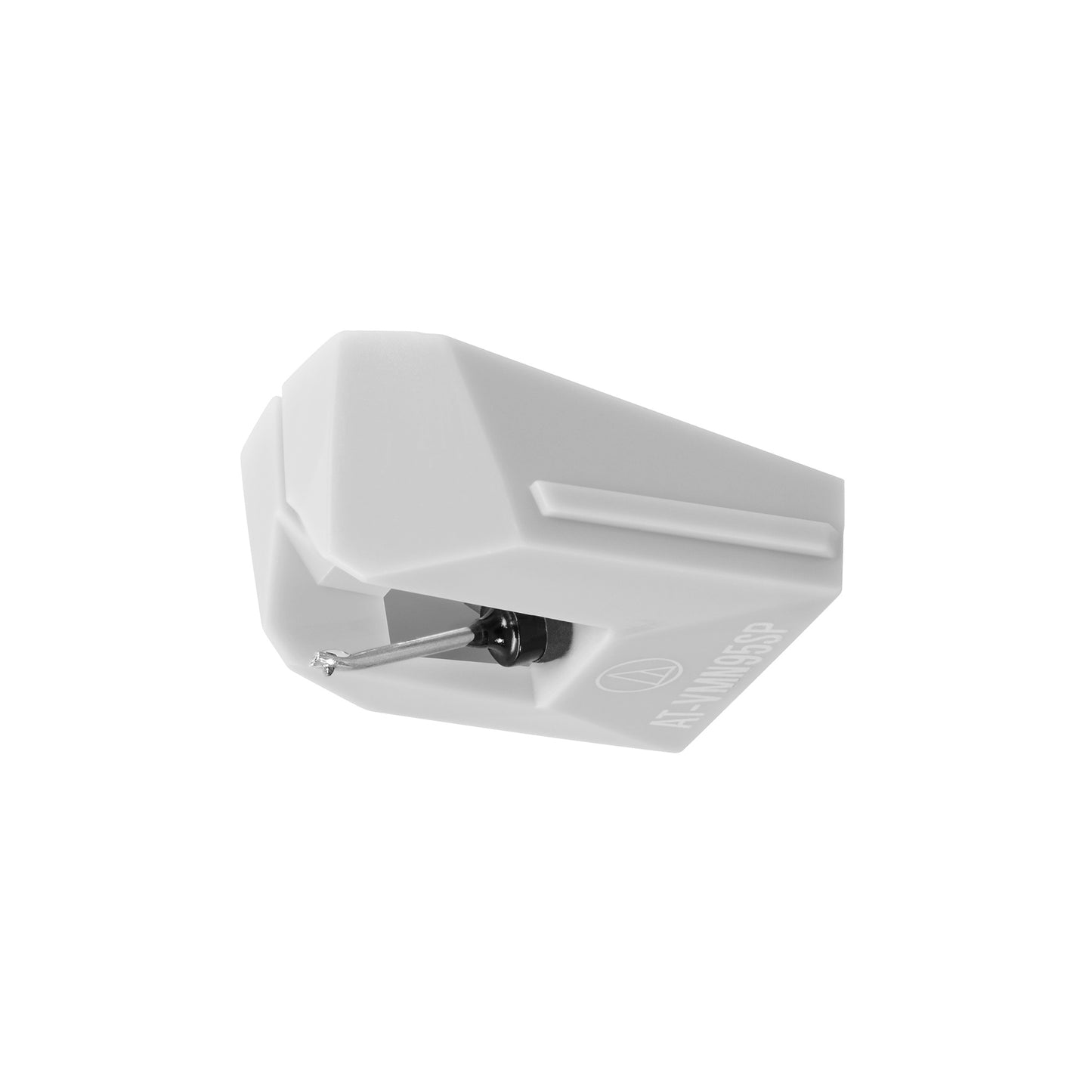

Audio Technica AT-VMN95SP 78rpm Moving Magnet Stylus
Audio Technica AT-VMN95SP 78rpm Moving Magnet Stylus
VM95 Series 78rpm SP replacement stylus
Couldn't load pickup availability
Description
Description
VM95 Series 78rpm SP replacement stylus
- Aluminium cantilever
- SP 3mil Conical Stylus
- Bonded Round Shank
VM95 Series - Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.
Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.
The VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.
The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.
- AT-VMN95C
- AT-VMN95E
- AT-VMN95EN
- AT-VMN95ML
- AT-VMN95SH
- AT-VMN95SP

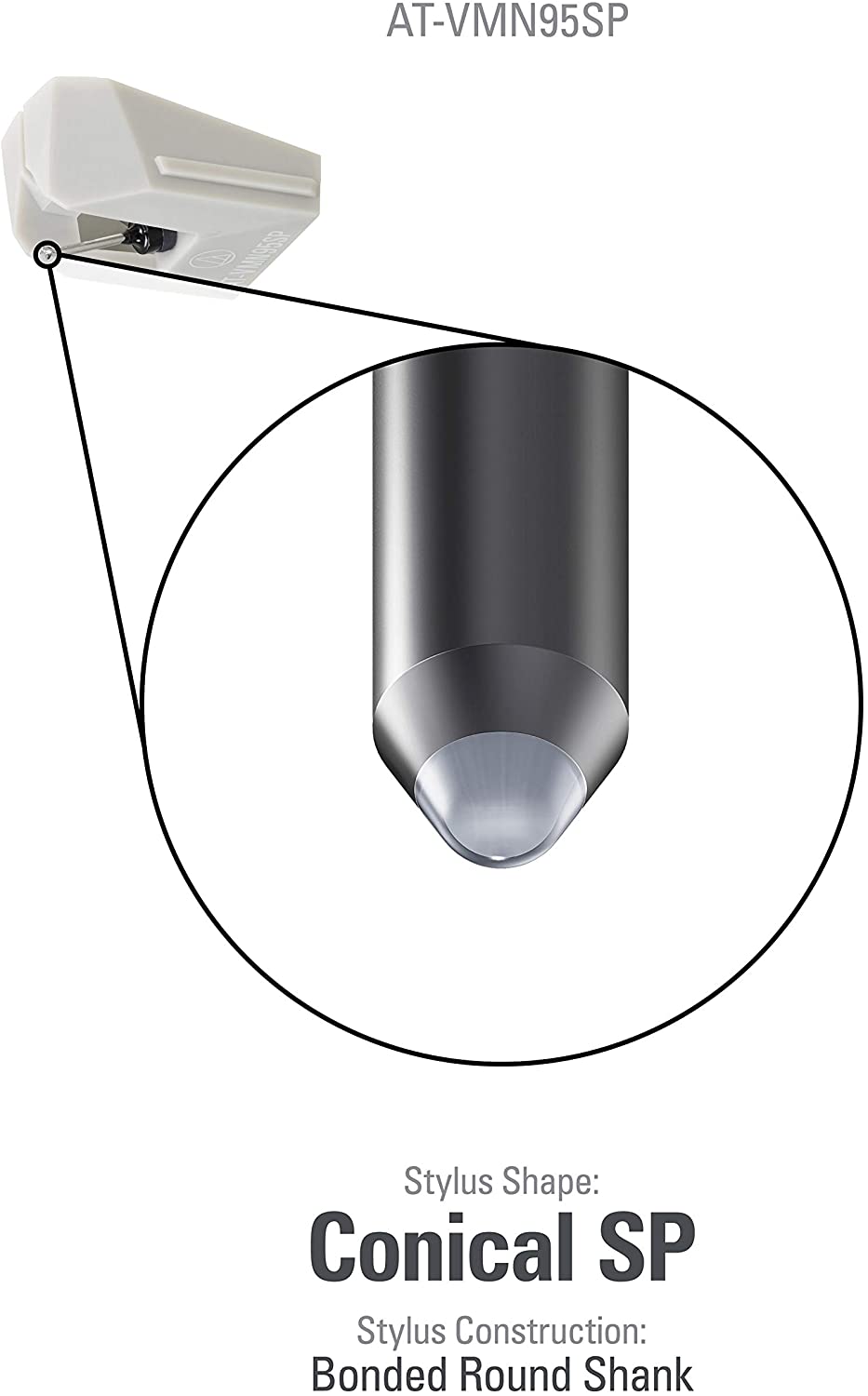

Conical Bonded (3mil) Stylus
A conical bonded stylus with a large curvature radius at the tip. The curvature radius is 3 mil, and suitable for playing 78 RPM records from a wide variety of eras.
Specifications
Specifications
Frequency Response
20 - 20,000 Hz
Vertical Tracking Angle
23°
Stylus Construction
Bonded Round Shank
Recommended Load Impedance
47,000 ohms
Coil Impedance
3.3 kohms (1 kHz)
DC Resistance
485 ohms
Coil Inductance
550 mH (1 kHz)
Output Voltage
2.7 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance
1.5 dB (1 kHz)
Stylus Shape
SP 3 mil Conical Bonded
Cantilever
Aluminium Pipe
Static Compliance
12 x 10 – 6 cm / dyne
Dynamic Compliance
2 x 10 – 6 cm / dyne (100 Hz)
Mounting
1/2” centres
Cartridge Weight
6.1g
Dimensions
17.2 x 18.9 x 28.3 ( H x W x D mm)
Accessories Included
Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Model
AT-VM95SP
Recommended Load Capacitance
100-200 pF
Replacement Stylus
AT-VMN95SP
Stylus Size
3 mil
Type
VM Stereo Dual Magnet
Wire Used for Coil
T.P. Copper
