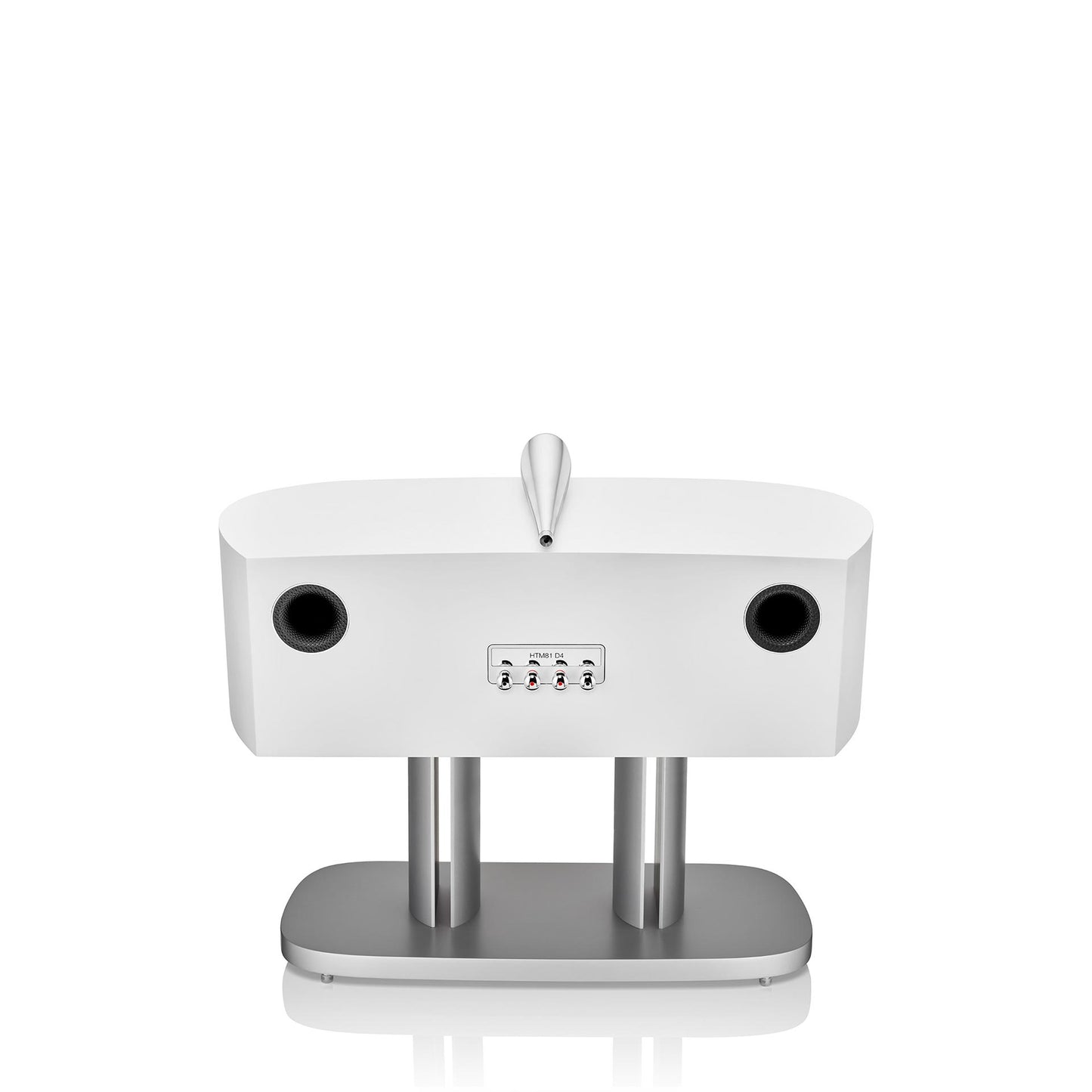

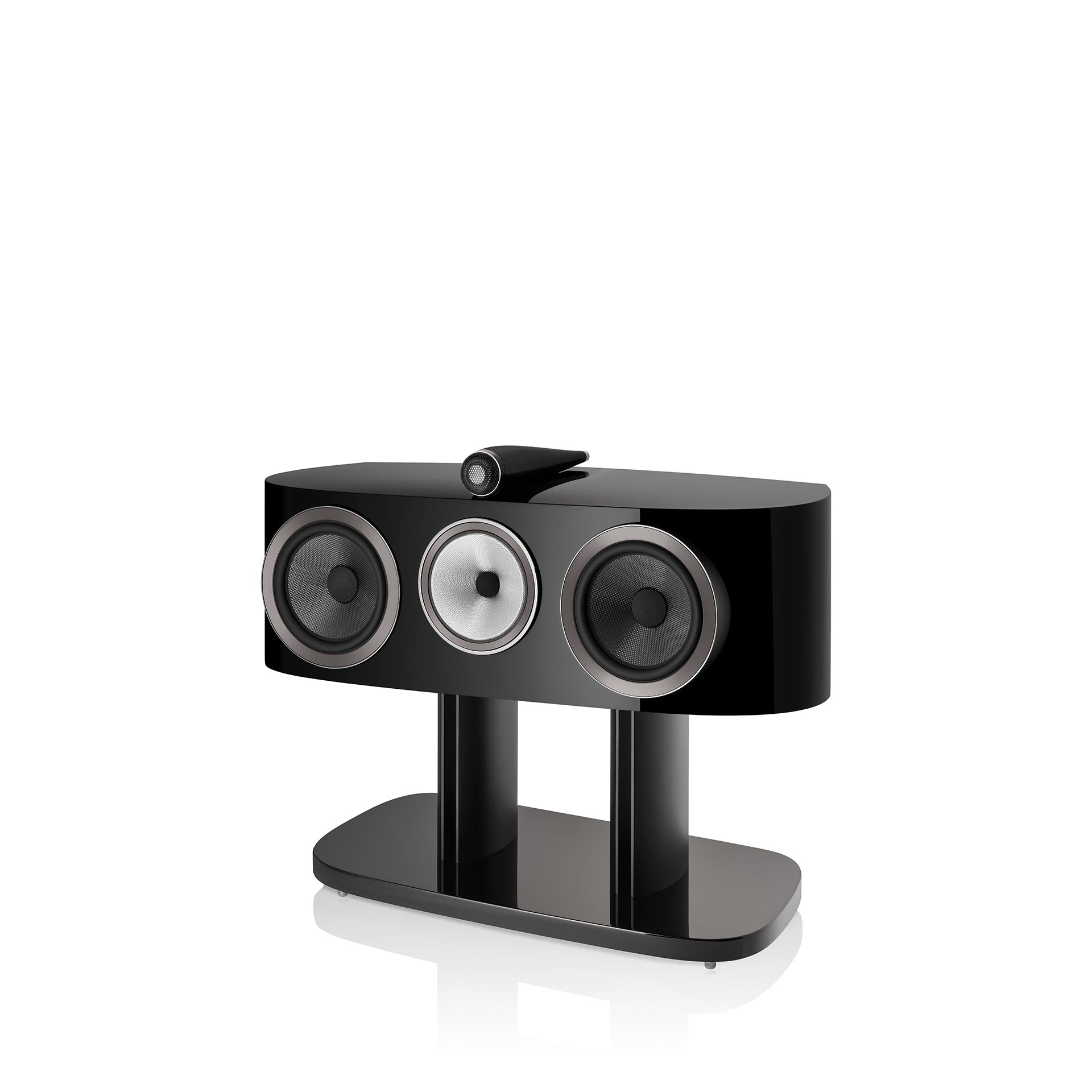

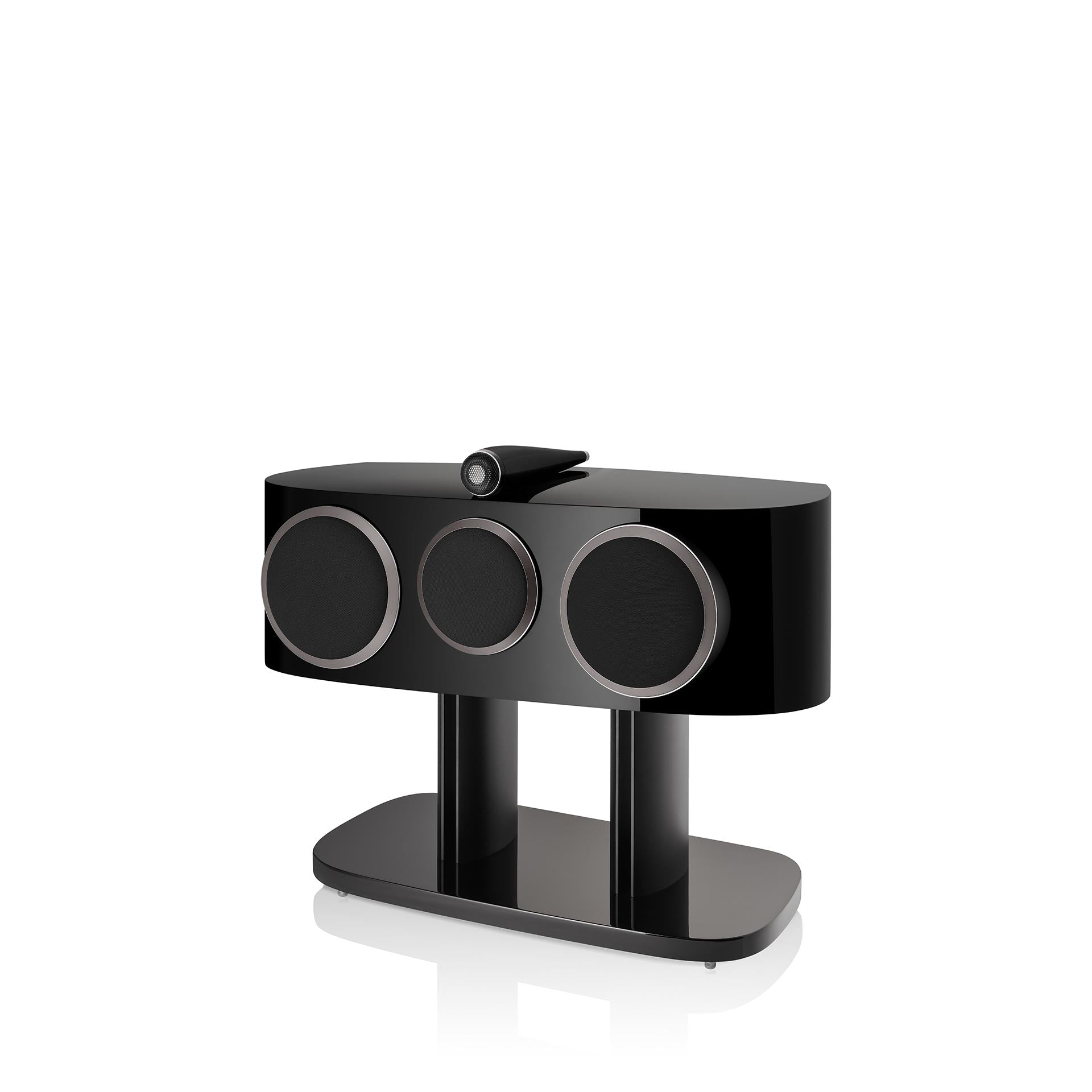

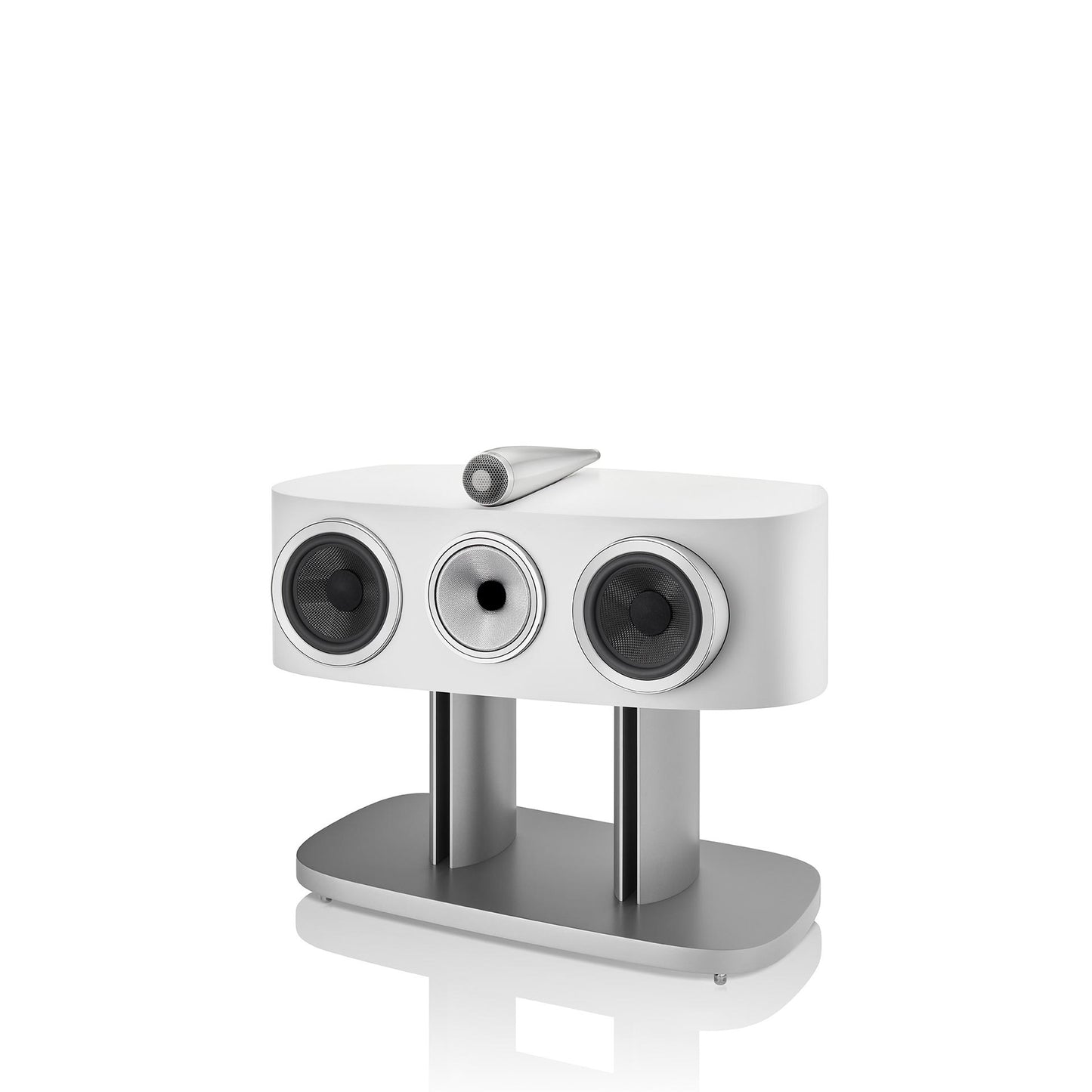

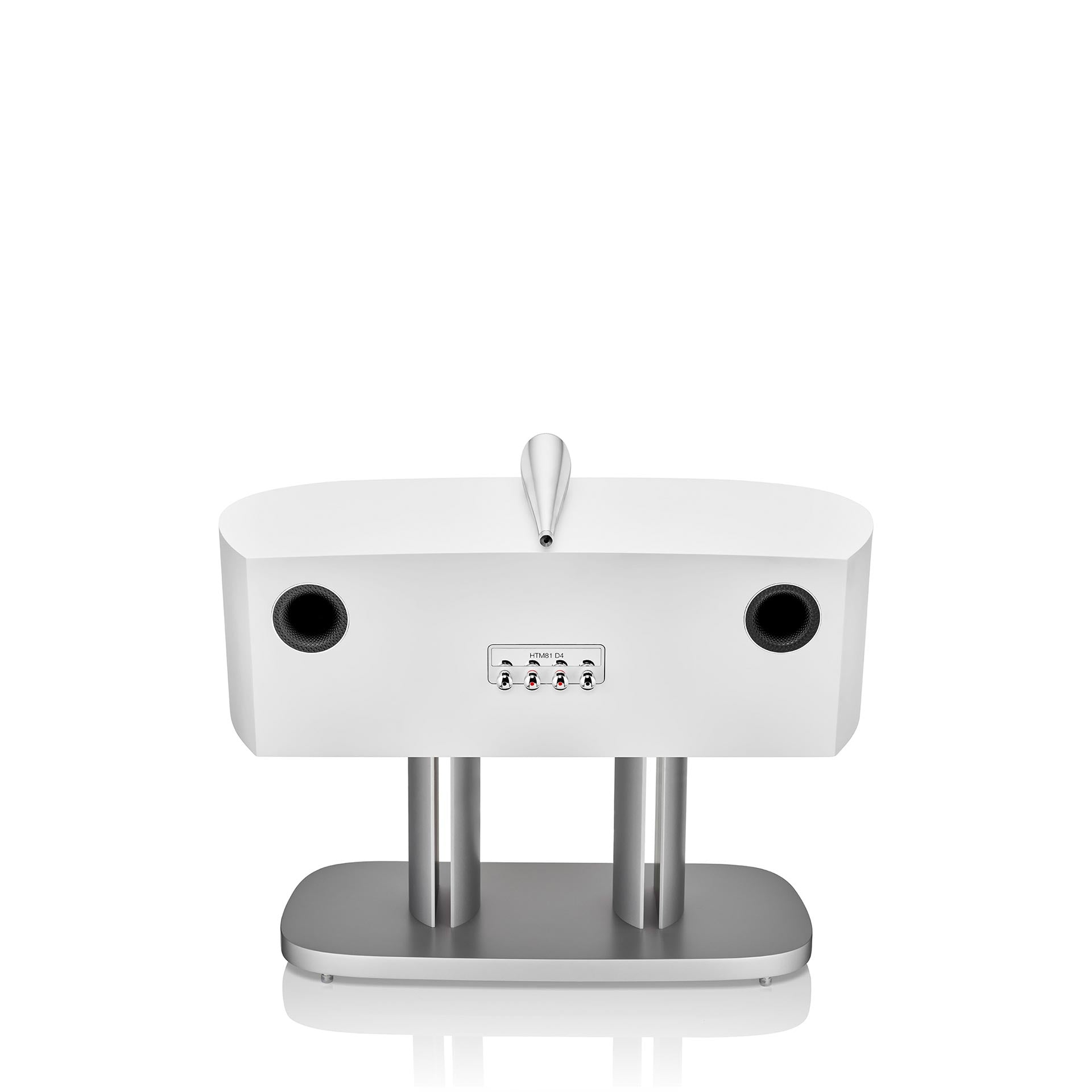

Bowers & Wilkins HTM82 D4 Centre Speaker

Bowers & Wilkins HTM82 D4 Centre Speaker

For Theatre systems based on the more compact 803 D4 or 804 D4, the HTM82 D4 centre-channel speaker is the perfect solution. Its more compact midrange drive unit is ideally sized to match those of its siblings. * Stand not included.

Regular price £6,250.00 GBP
Regular price Sale price £6,250.00 GBP
Sale Out of Stock
Finish: Gloss Black

This product is only available for collection at Soundcraft

Description

It’s a Wrap

The new HTM82 D4 may be our most compact centre-channel speaker, but it shares the design DNA of its larger siblings, including the Reverse Wrap cabinet and Matrix™ bracing. The combination of the two technologies ensures a quieter, more acoustically efficient and better-sounding speaker than ever.

Reverse Wrap cabinet

Instead of a conventional loudspeaker box, our cabinets are made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.

Continuum™ cone midrange

Introduced as a huge evolutionary change for us in 2015, the Continuum cone midrange drive has swiftly become a fundamental element in every Bowers & Wilkins loudspeaker. With exceptionally low noise, it ensures outstanding resolution without coloration or masking of detail.

Decoupled midrange assembly

HTM82 D4 has a dedicated midrange cone using three key Bowers & Wilkins technologies: the Continuum cone, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers. The result is outstanding clarity.

The science of sound

Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond™ so special here.

Specifications

Technical features

  • Diamond tweeter
  • Solid body Tweeter-on-Top
  • Continuum™ cone FST
  • Anti-Resonance plug
  • Biomimetic Suspension
  • Matrix™
  • Aerofoil™ cone bass units
  • Flowport

Description
3-way vented-box system

Drive units
1x ø25mm (1in) diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø165mm (6.5in) Aerofoil cone bass units

Frequency range
33Hz to 35kHz

Frequency response
45Hz to 28kHz (+/-3dB from reference axis)

Sensitivity
89dB (on axis at 2.83Vrms at 1m)

Harmonic distortion
2nd and 3rd harmonics (90dB,1m on axis)
<1% 100Hz – 20kHz
<0.3% 100Hz – 20kHz

Nominal impedance
8ohms (minimum 3.0ohms)

Recommended amplifier power
50W – 200W into 8ohms on unclipped programme

Max. recommended cable impedance
0.1ohms

Dimensions
Height: 289mm
Width: 715mm
Depth: 369mm

Net weight
25.15kg

Cabinet finishes
Gloss Black
White

Grille finishes
Black
Grey
