Isol-8 MiniSub Axis Mains Power Conditioner
Isol-8 MiniSub Axis Mains Power Conditioner
The MiniSub Axis ensures your system will be free of any of the negative effects of DC on the mains.
This product is only available for collection at Soundcraft
Couldn't load pickup availability
Description
Description
The MiniSub Axis has exactly the same layout and filter complement as the MiniSub Wave but takes performance another step forward with the addition of Axis DC blocking. A significant DC component is commonly found on the mains power supply. It affects the crucial magnetic circuit of your equipment’s AC power supplies, degrading system performance and causing acoustic noise through mechanical vibration.
Isol-8 take pride in continuing to bring our outstanding build quality to the new MiniSubs, making them an investment that provides unbeatable performance and will last a lifetime. Inside the quality casework you will find the same carefully auditioned polypropylene capacitors, Mundorf OFC inductors, high grade connectors, and custom ISOL-8 chokes that are found in our high end audiophile products. You will also have the peace of mind that comes with our spike and surge protection. All ISOL-8 products are designed and manufactured in the UK and come with a five year guarantee in the UK.
The result of an extensive development program, the next generation of the MiniSub takes its class leading performance to a whole new level in every area, helping your system to fulfil its maximum potential every time you listen.
Specifications
Specifications

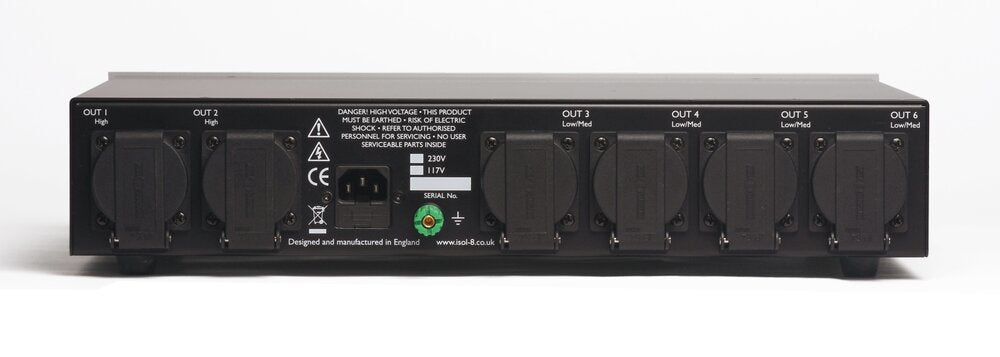

Number of Available Outlets:
6 (4 low/med current. 2 high current)
Type of Outlets Available:
13A British chassis sockets
European Schuko sockets
15A US sockets
Standard Mains Inlet:
10A IEC fused at 10 Amps (cable not supplied)
Dimensions:
444 x 85 x 305mm (W x H x D) excluding connectors
Product Weight:
6.7kg
Construction:
Steel chassis with black finish.

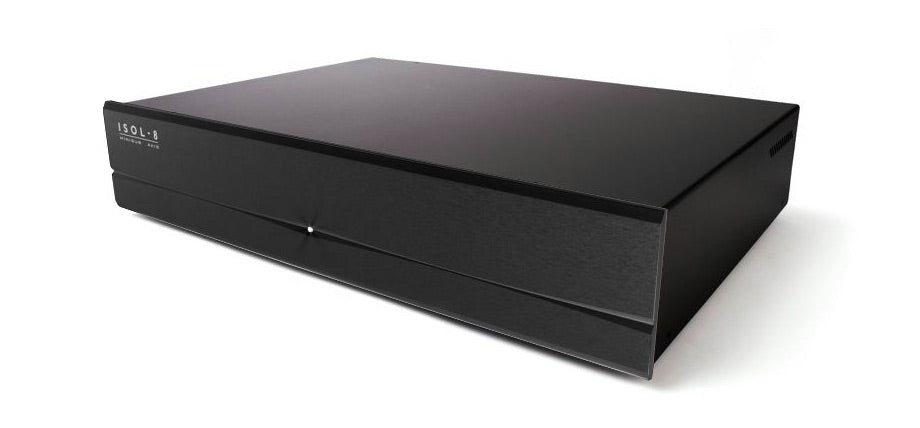

Silver Aluminium front panel (Black optional)
Mains Voltage:
230VAC version for 220-240VAC
117VAC version for 100-127VAC
Maximum Continuous Current:
6 Amps any one low/med power outlet
6 Amps across all low/med power outlets
10 Amps any one high power outlet
10 Amps across all high power outlets
10 Amps across all outlets
5 Year Warranty
5 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
