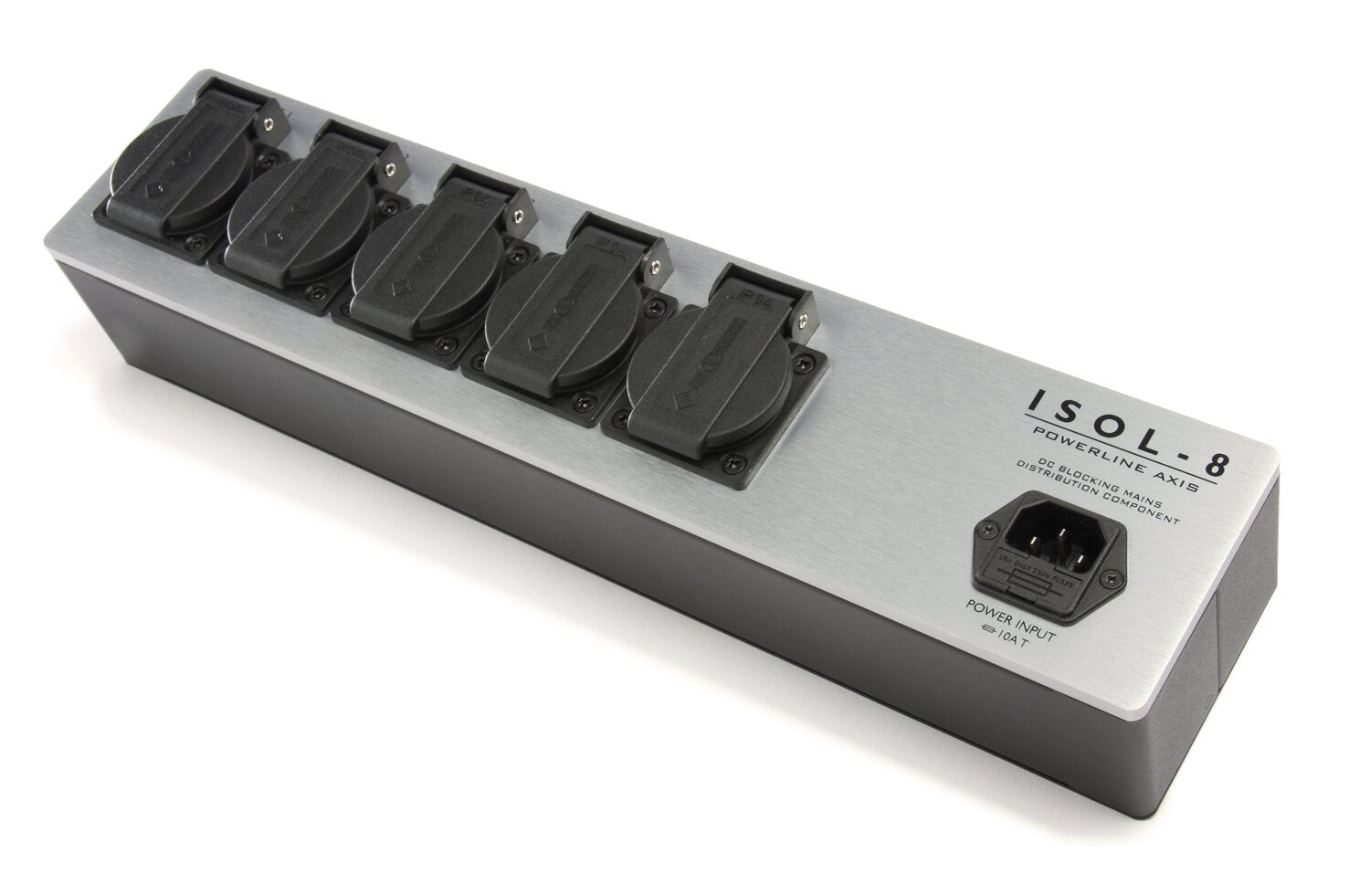

Isol-8 PowerLine Axis DC Blocking Component
Isol-8 PowerLine Axis DC Blocking Component
An innovative cure to the problem of DC on the mains supply.
This product is only available for collection at Soundcraft
Couldn't load pickup availability
Description
Description
An innovative cure to the problem of DC on the mains supply. In theory the mains waveform should be pure AC. In practice the waveform can arrive at the end user clipped, distorted and asymmetrical with a significant DC voltage component.
The AC transformers commonly found in equipment power supplies cannot, by nature, tolerate significant DC without being compromised. The PowerLine Axis has five high quality outlets served by a network that re-centres the voltage axis of the mains waveform. This eliminates any DC voltage on the mains power supply, suppressing mechanical hum and liberating performance. Surge protection provides peace of mind too.
Every system needs a quality power supply to give of its best. PowerLine is a family of compact Power Distribution Units (PDU) that are designed to lift system performance, harnessing ISOL-8's power expertise at an affordable price. In combination with our range of IsoLink shielded mains cables, PowerLine offers a flexible but powerful solution tailored for those who put performance and value first.
Features…
All versions feature an anodised 6mm thick CNC'd aluminum top plate. This forms an ideal mechanical foundation: non magnetic and non resonant. Input is by IEC connector with a Neutrik PowerCon an option on many variants. Each high quality power outlet has a hinged cover to IP54, protecting unused outlets from dirt, dust and little fingers. Wiring is carefully selected silver plated copper with PTFE insulation throughout, providing excellent power transmission properties, reliably supplying your system for years to come.
Specifications
Specifications
Number of Available Outlets:
5
Type of Outlets Available:
13A British chassis sockets
European Shuko
USA 15A
Standard Mains Inlet:
IEC fused socket (Cable not supplied)
Dimensions:
400 x 83 x 88mm (W x H x D) excluding connectors
540 x 100 x 110mm (W x H x D) packaged
Product Weight:
1.9kg
Construction:
Aluminum top plate “titanium” anodise.
Powder coated steel chassis.
Mains Voltage:
230VAC version for 220-240VAC
Maximum Current:
10 Amps across any one power outlet
10 Amps across all outlets
