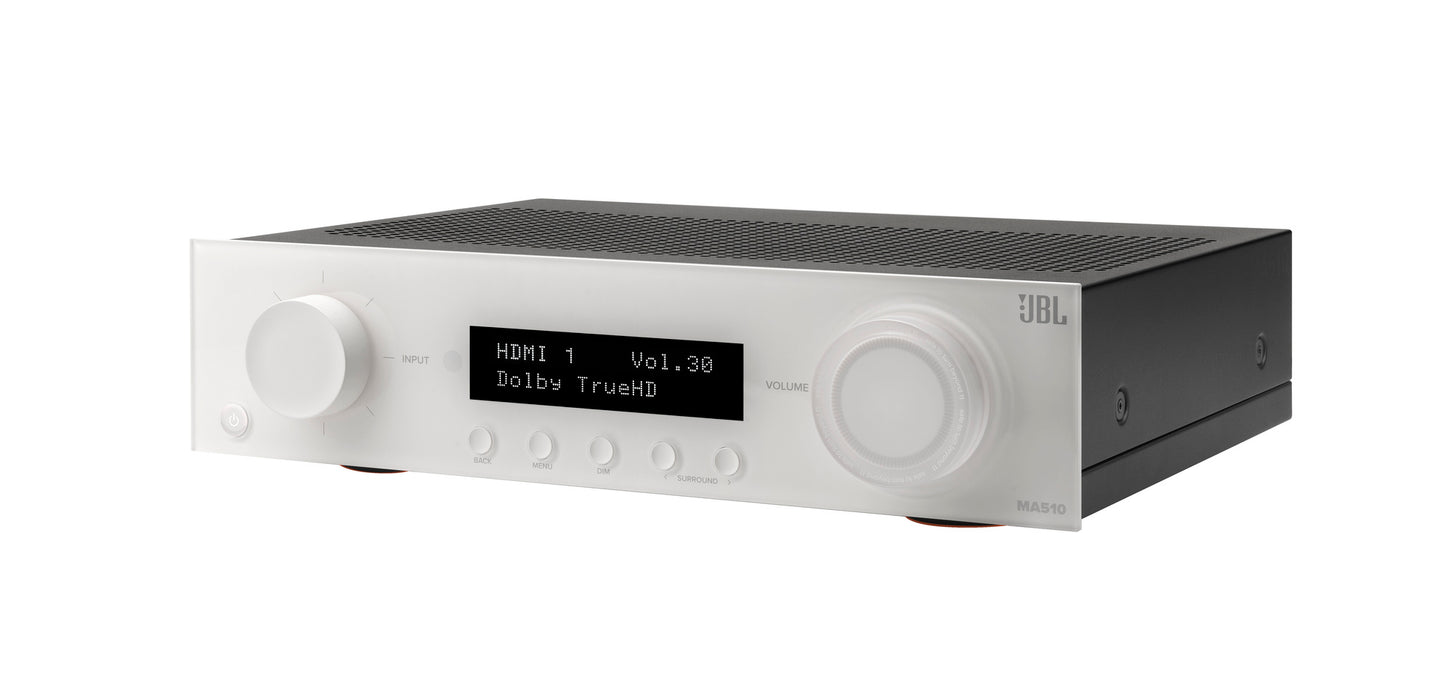

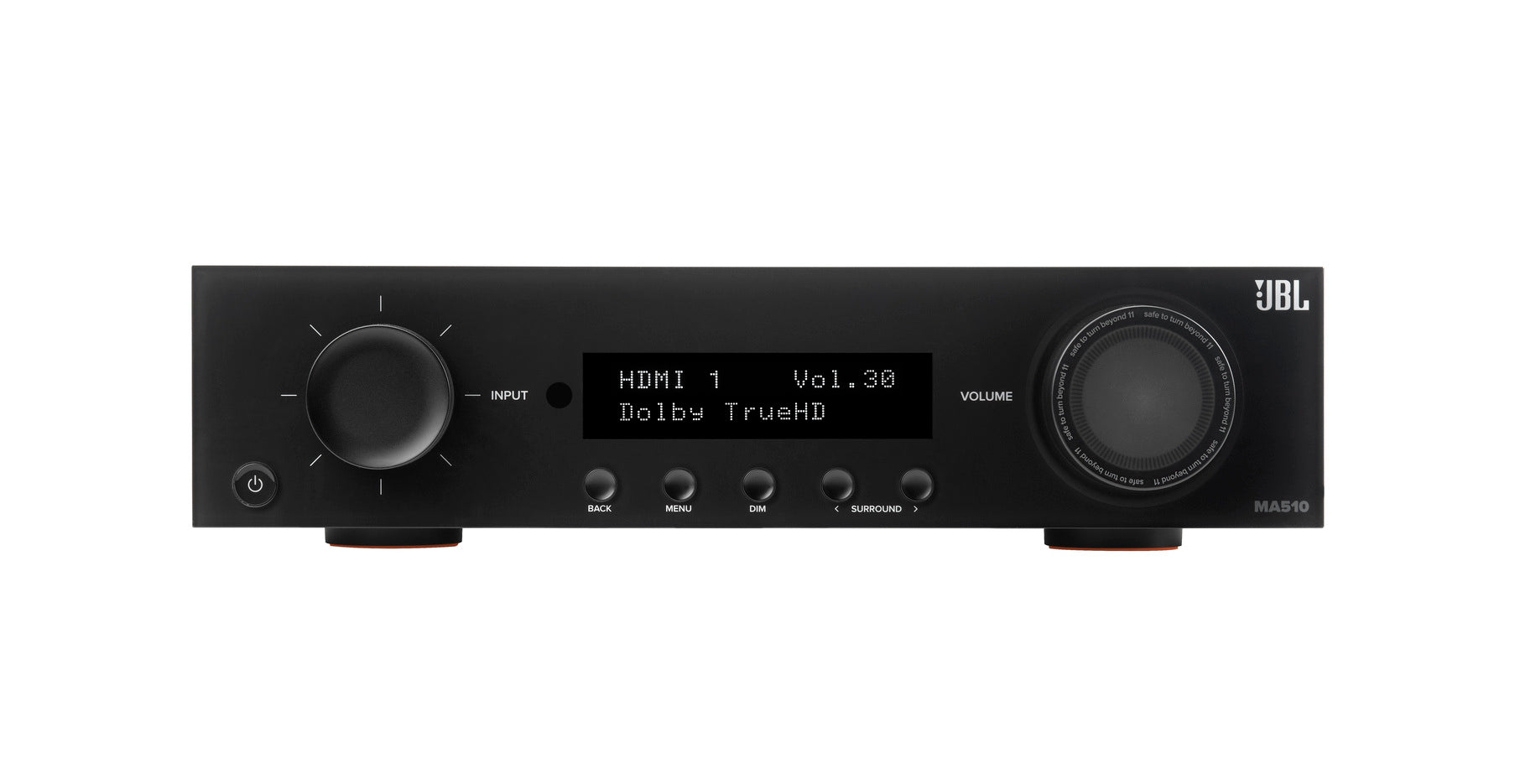

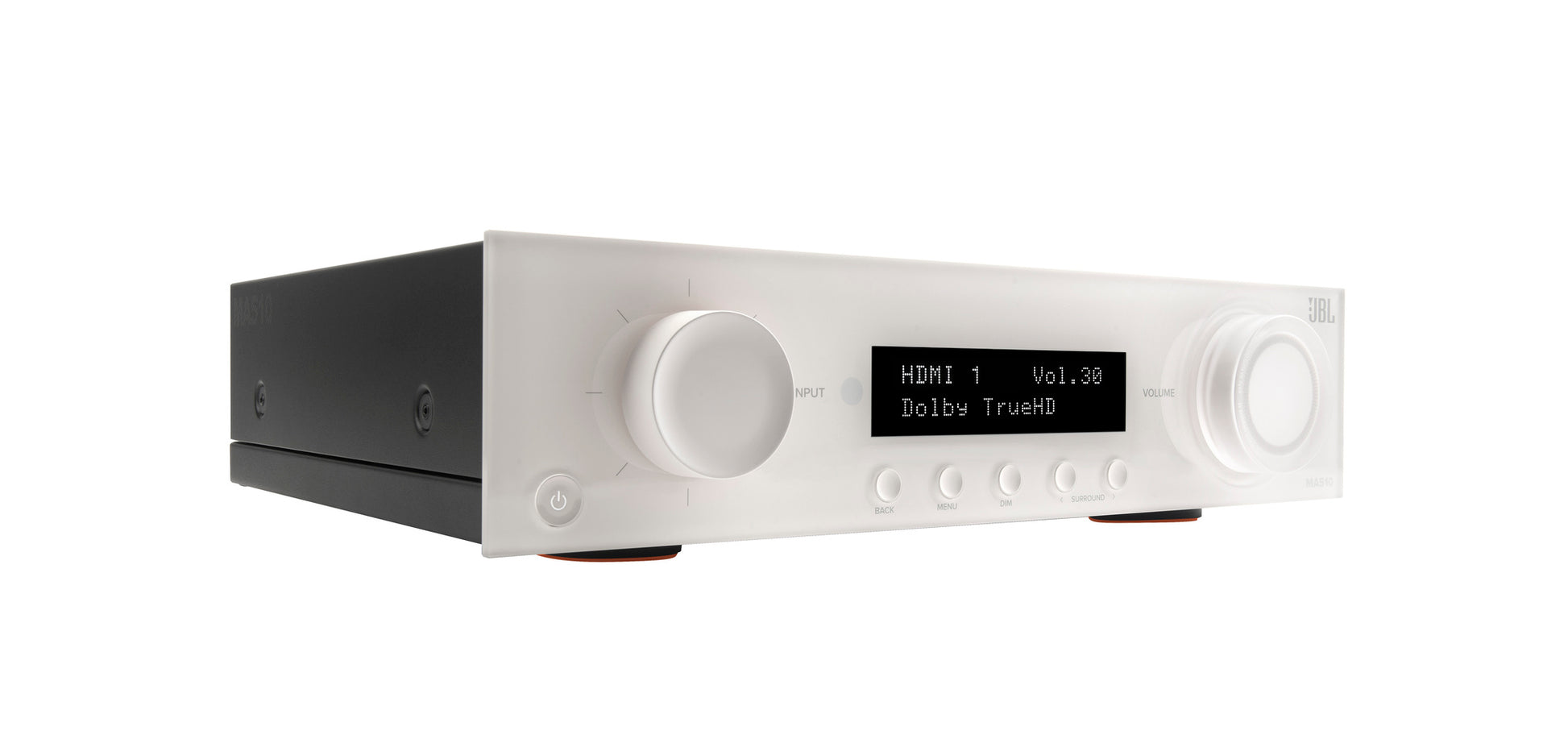

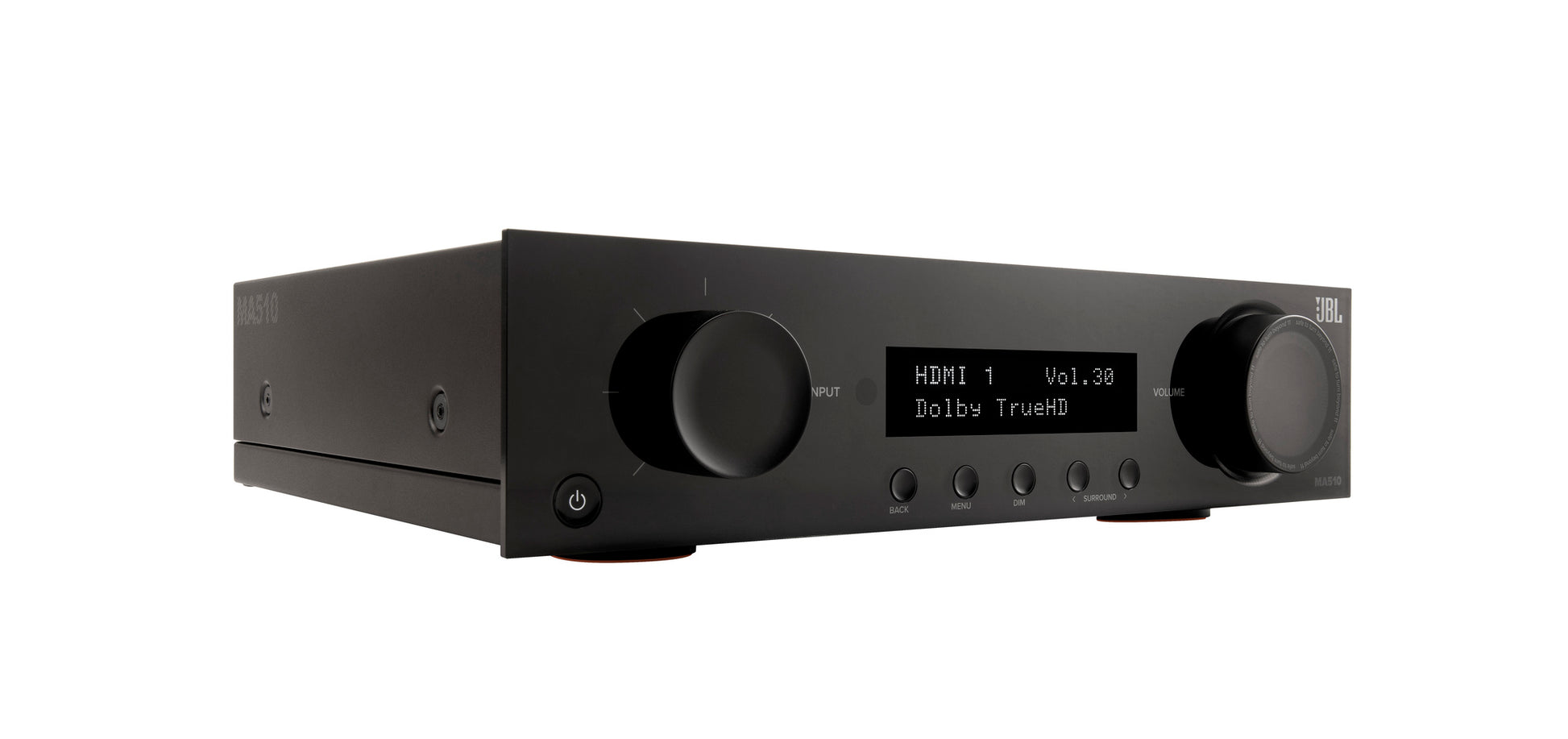

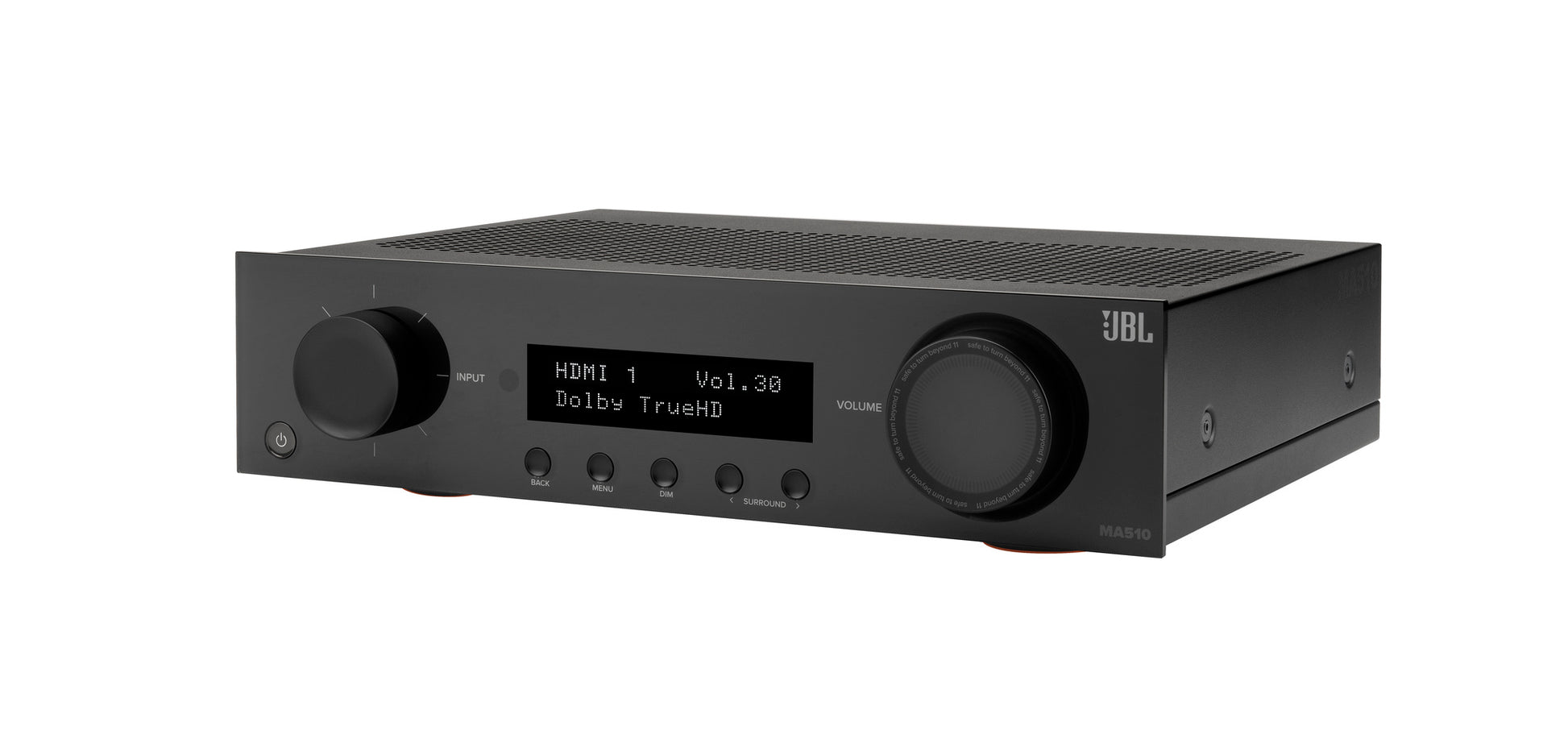

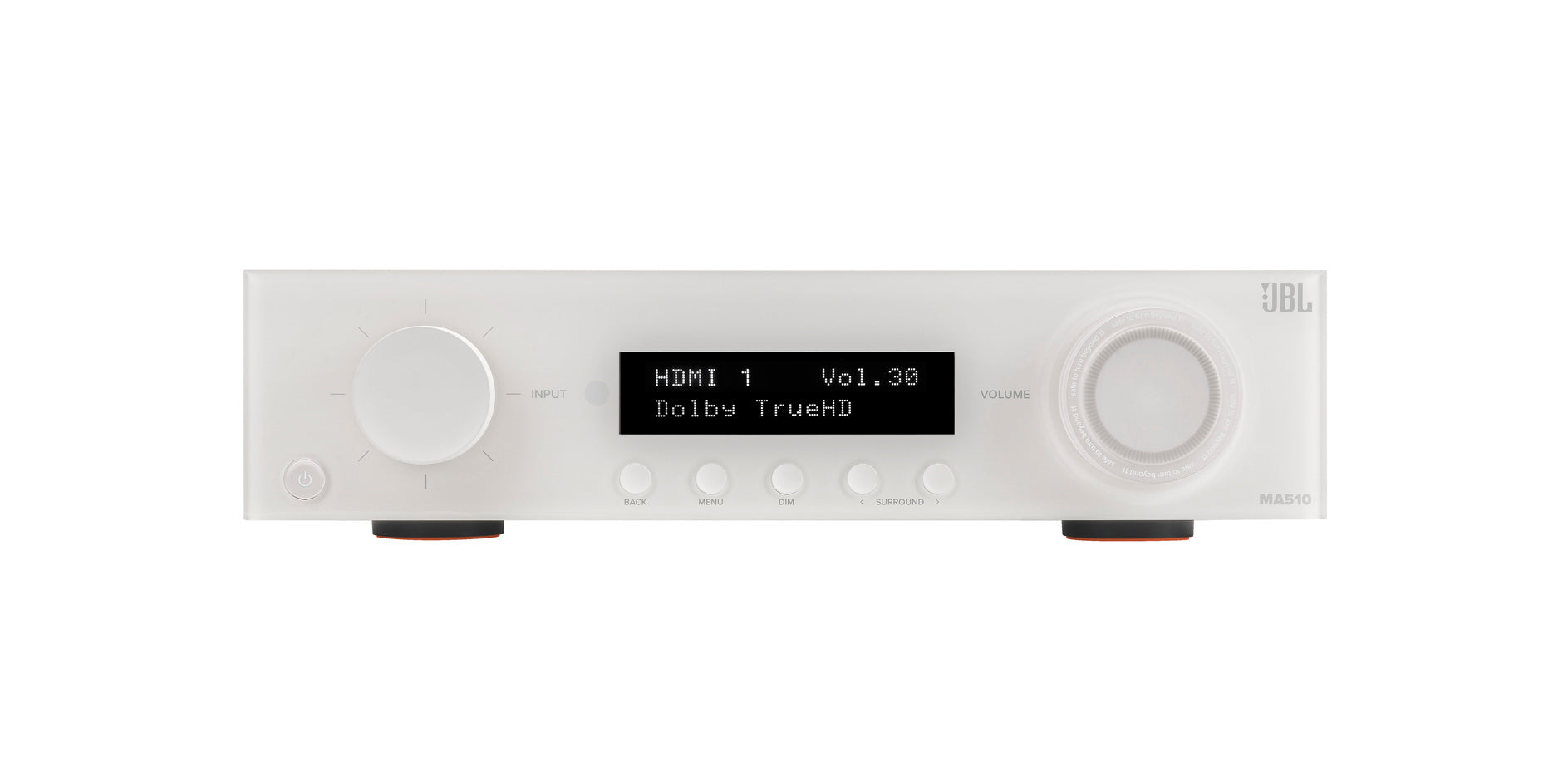

JBL MA510 AV Receiver
JBL MA510 AV Receiver
The JBL MA510 AV Receiver delivers spectacular realism for a supreme home cinema experience. It is designed with a passion for music and movies, bringing both to life with true high fidelity.
Couldn't load pickup availability
Description
Description
Spectacular audio and video performance
5.2-channel AV receiver that delivers spectacular audio performance with 8K video for the ultimate home cinema experience.
Intuitive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 4 HDMI inputs and 1 output, plus eARC.
High-performance immersive surround sound
Native 5-channel decoding of Dolby and DTS formats.
Bring both music and movies to life with true high fidelity.
The JBL MA510 is an AV Receiver that delivers spectacular realism with 8K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus eARC. With native 5-channel decoding of Dolby and DTS formats, the MA510 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth and network streaming. The MA510 features five channels of low noise Class D amplification for real world power to all channels.
What's in The Box?

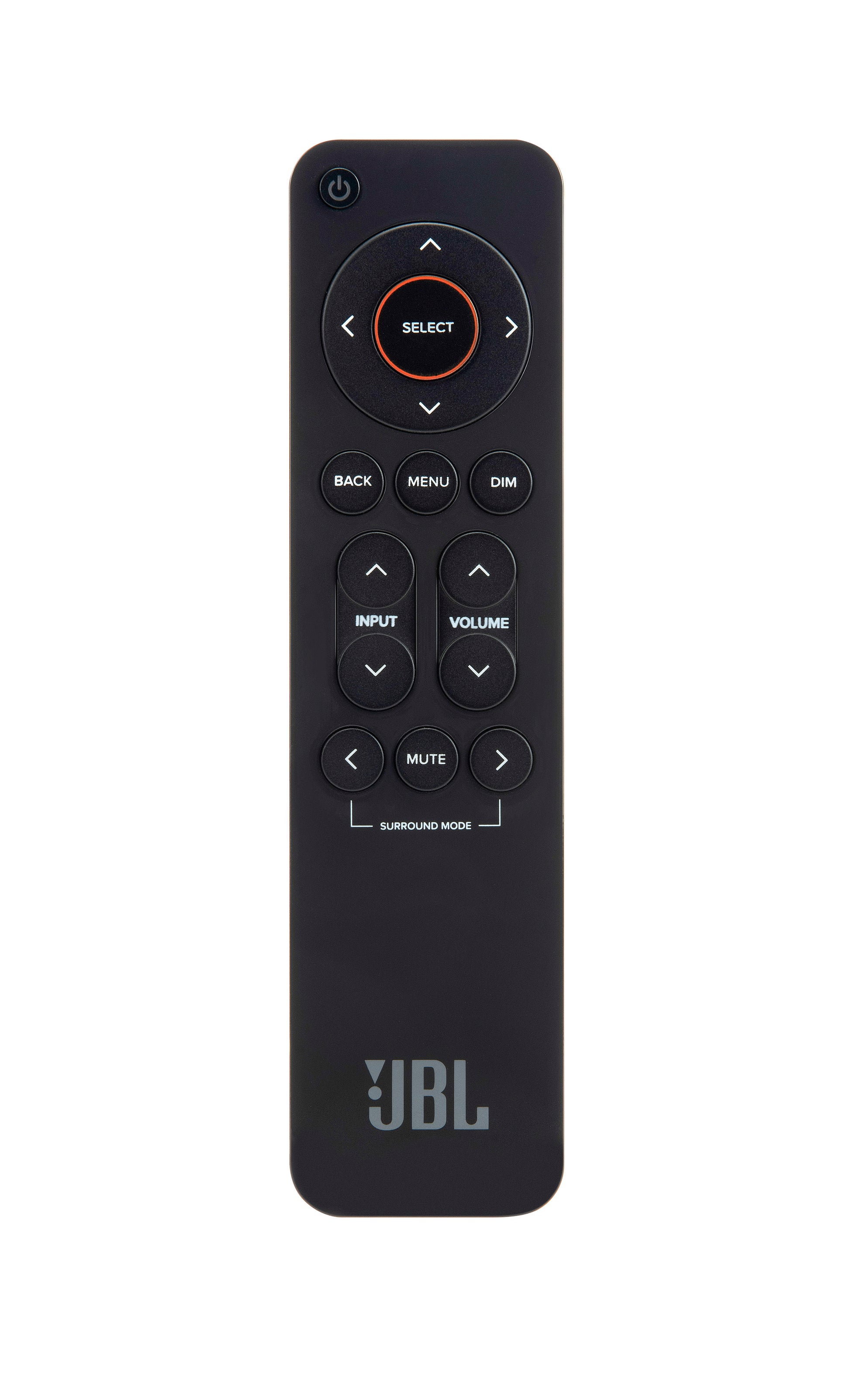

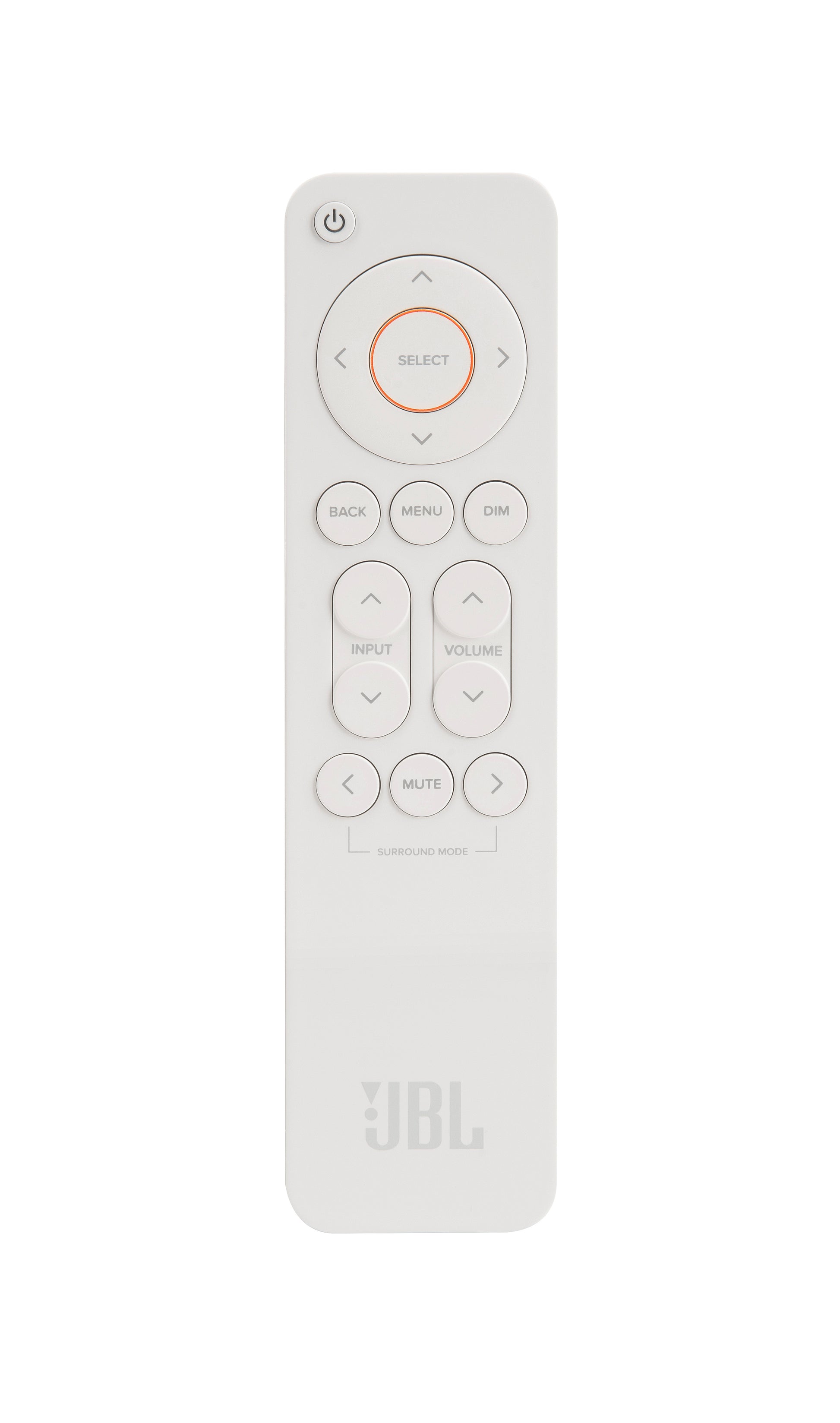

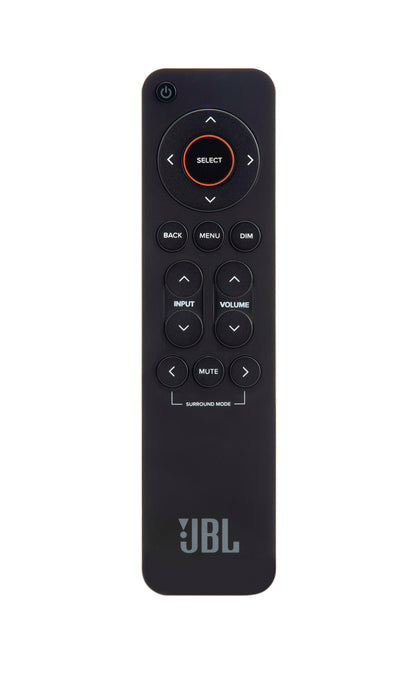

1x IR Remote
2x AAA batteries
1x Bluetooth antenna
1x Wi-Fi antenna
1x Power Cord
1x Quick-Start Guide
1x Safety Sheet
Specifications
Specifications
General Specifications
HDMI eARC
Yes
HDMI Audio Return Channel
Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)
4
HDMI 2.1 enhanced gaming features
Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
HDR 10+, Dolby Vision
Yes , Yes
File format
MP3 / MPEG-4 AAC
Pure Direct
Yes
EZ Set EQ
Yes
Digital signal processing
up to 24-bit/192kHz
Mains voltage
110 – 240V, 50–60H
Max. power consumption
300W
Standby power consumption
<0.5W
Audio Specifications
Channels
5.2
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8O)
75W
Rated Power @ 8O (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
75 W RMS
Rated Power @ 4O (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
100 W RMS
Dimensions
Dimensions incl. feet and speaker terminals (H x W x D)
4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)
Weight
12lb (5.4kg)

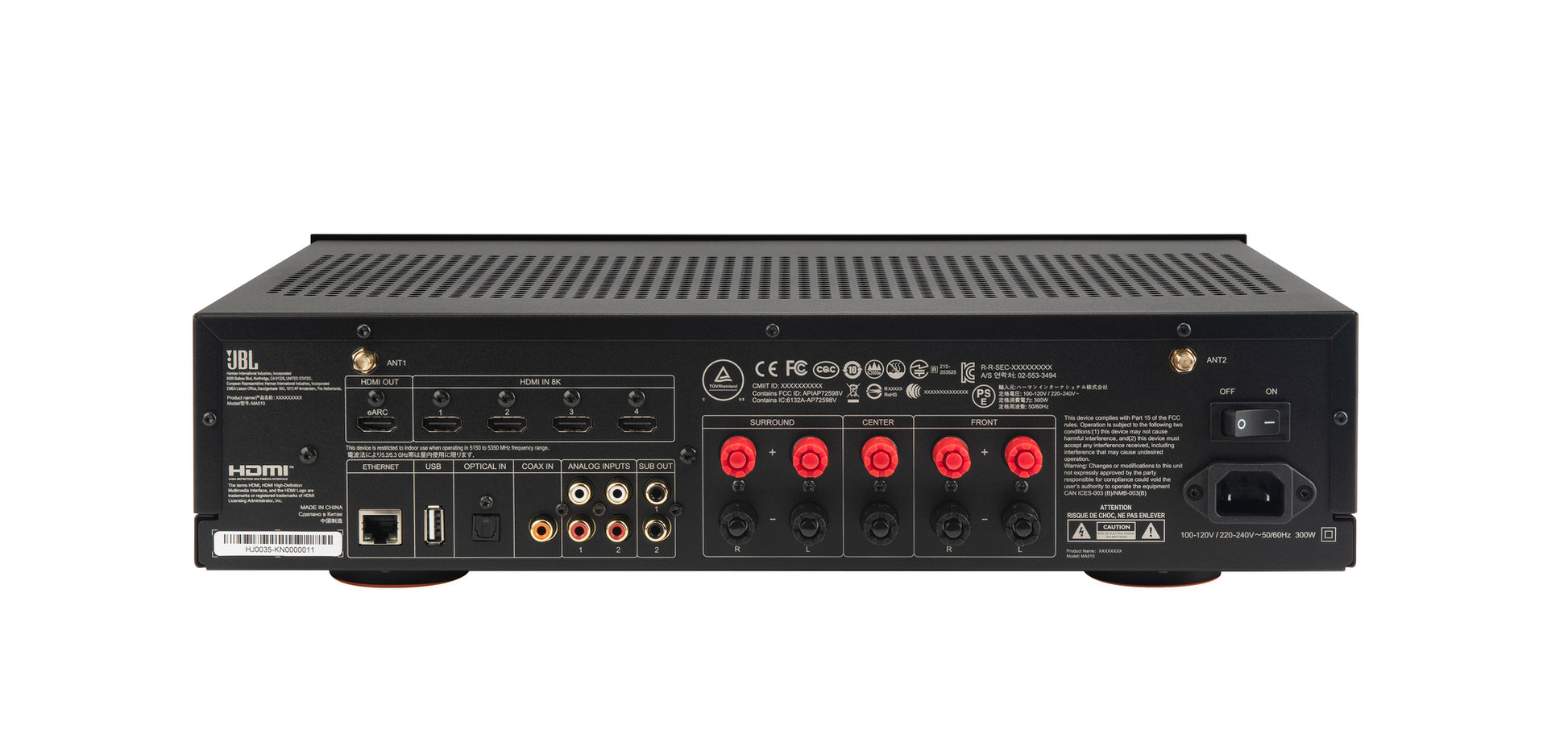

Control and Connection Specifications
HDMI Input/Output
4 / 1
Wi-Fi
Yes (2.4/5GHz)
Bluetooth receiver
Yes (v4.1, Low Energy)
Digital Audio Input
1 Coax, 1 Optical, 1 USB
Stereo analog input
2 single-ended RCA
Pre-Out (single ended RCA)
Subwoofer 1, Subwoofer 2
Ethernet Port (RJ45)
Yes
Awards & Reviews
Awards & Reviews
Trusted Reviews
"this is a great sounding home cinema amplifier. It’s polished and powerful, and can be considered a huge upgrade from common or garden soundbars."
RECOMMENDED AWARD | READ MORE
1 Year Warranty
1 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
