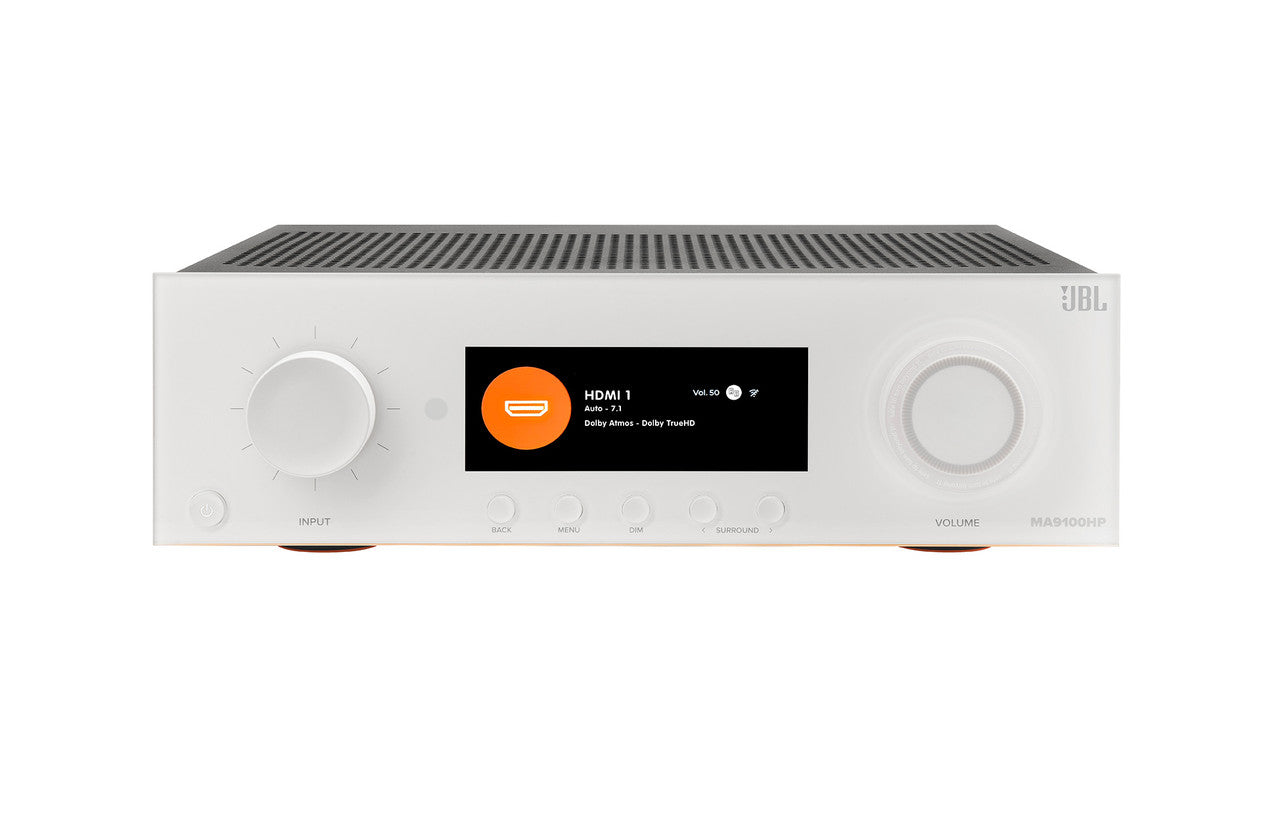

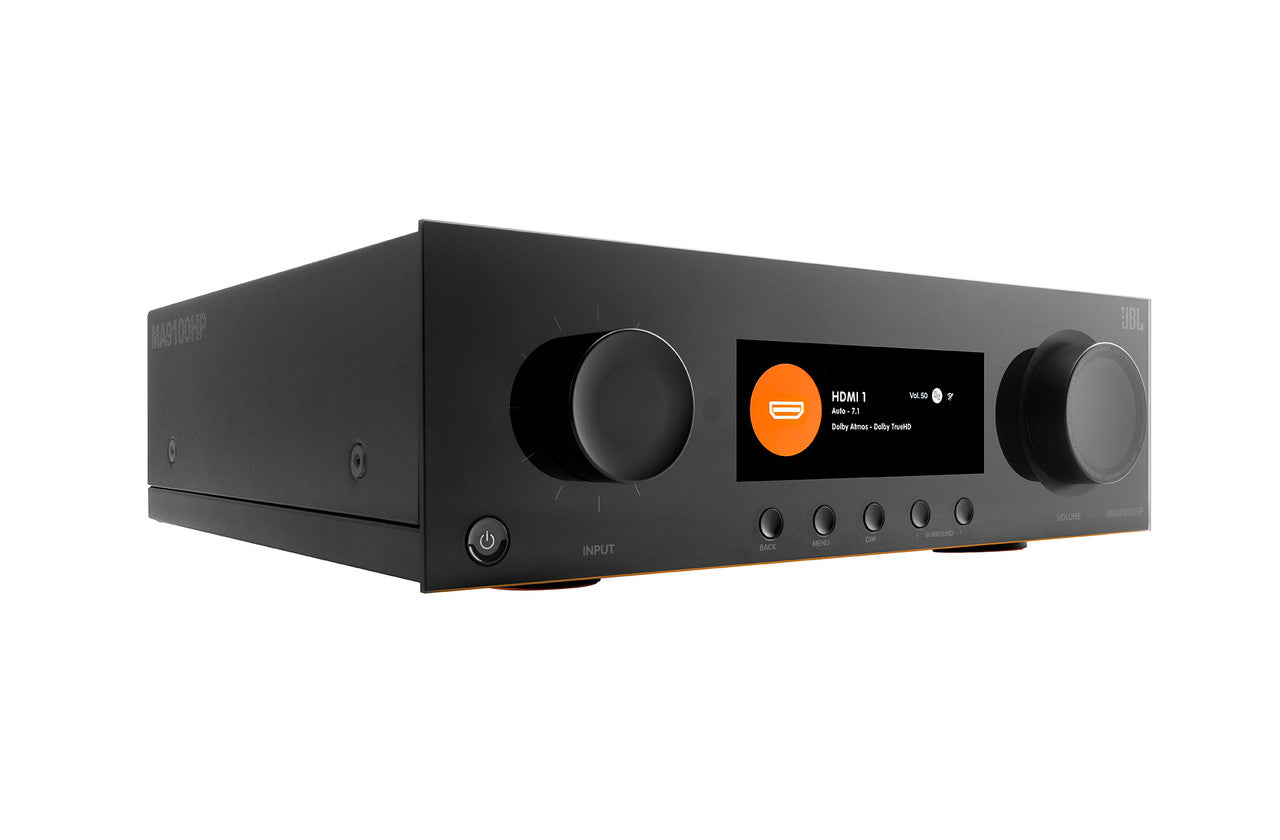

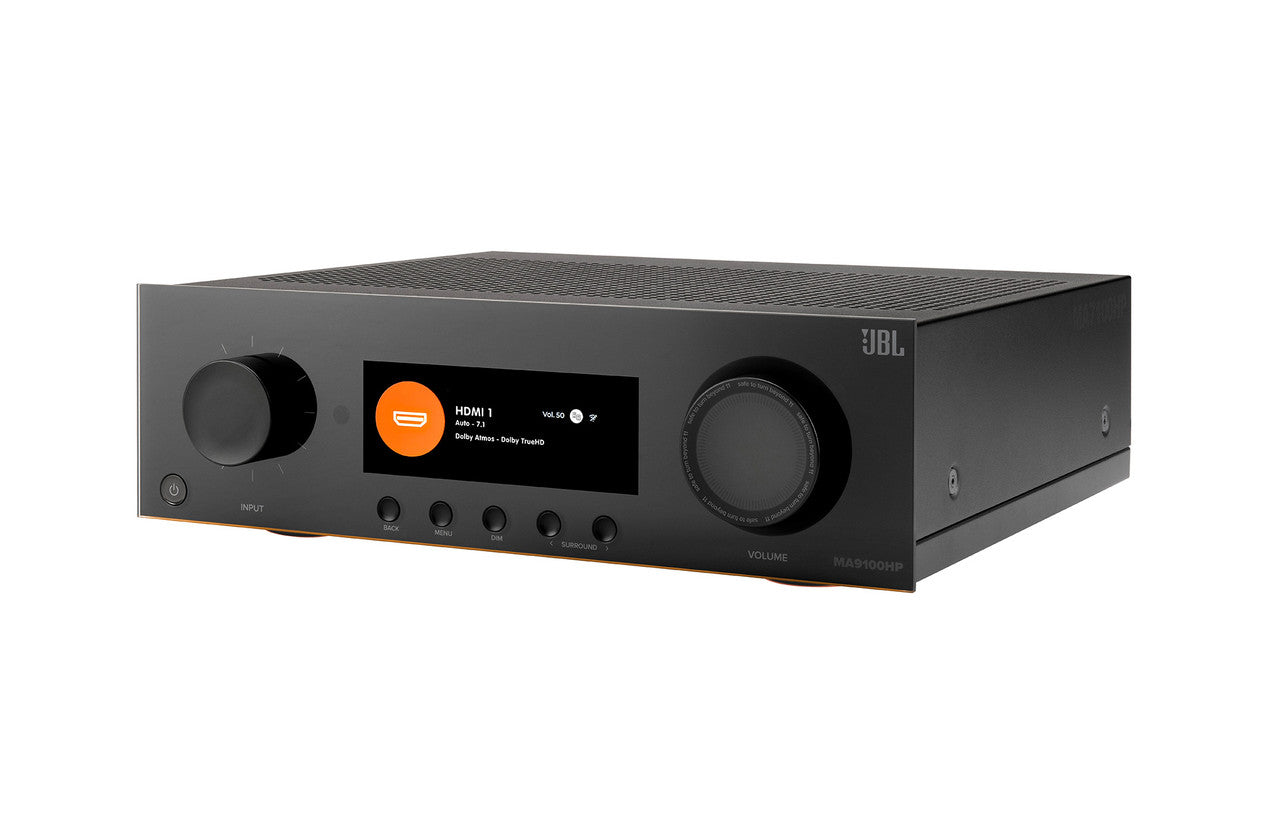

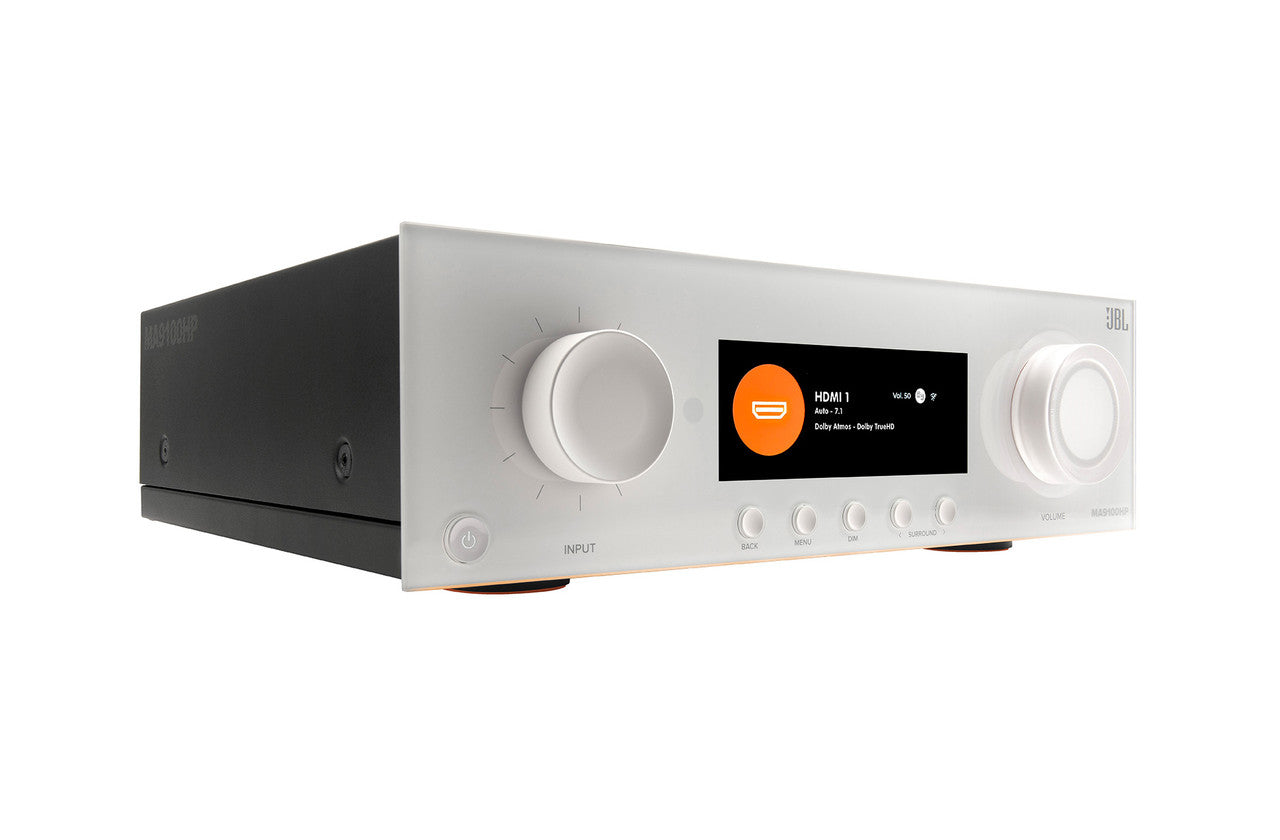

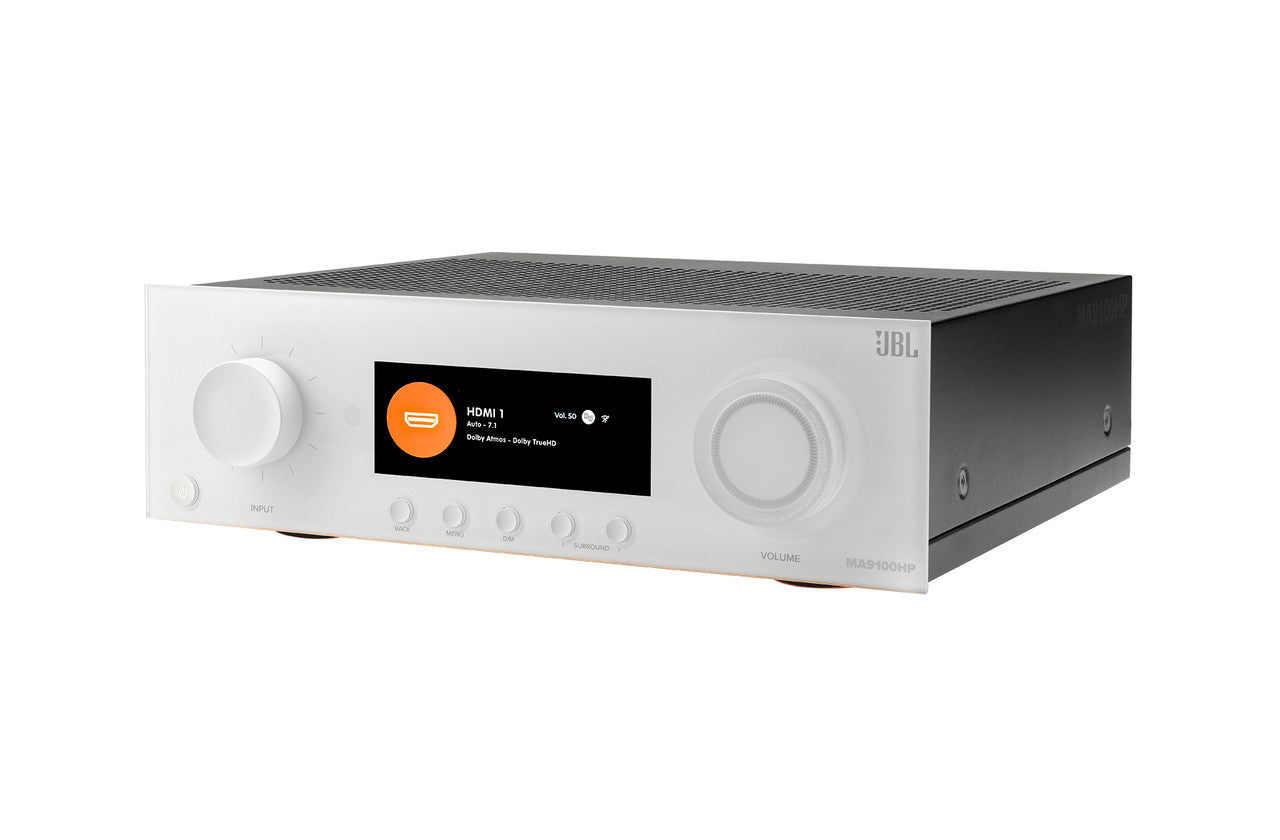

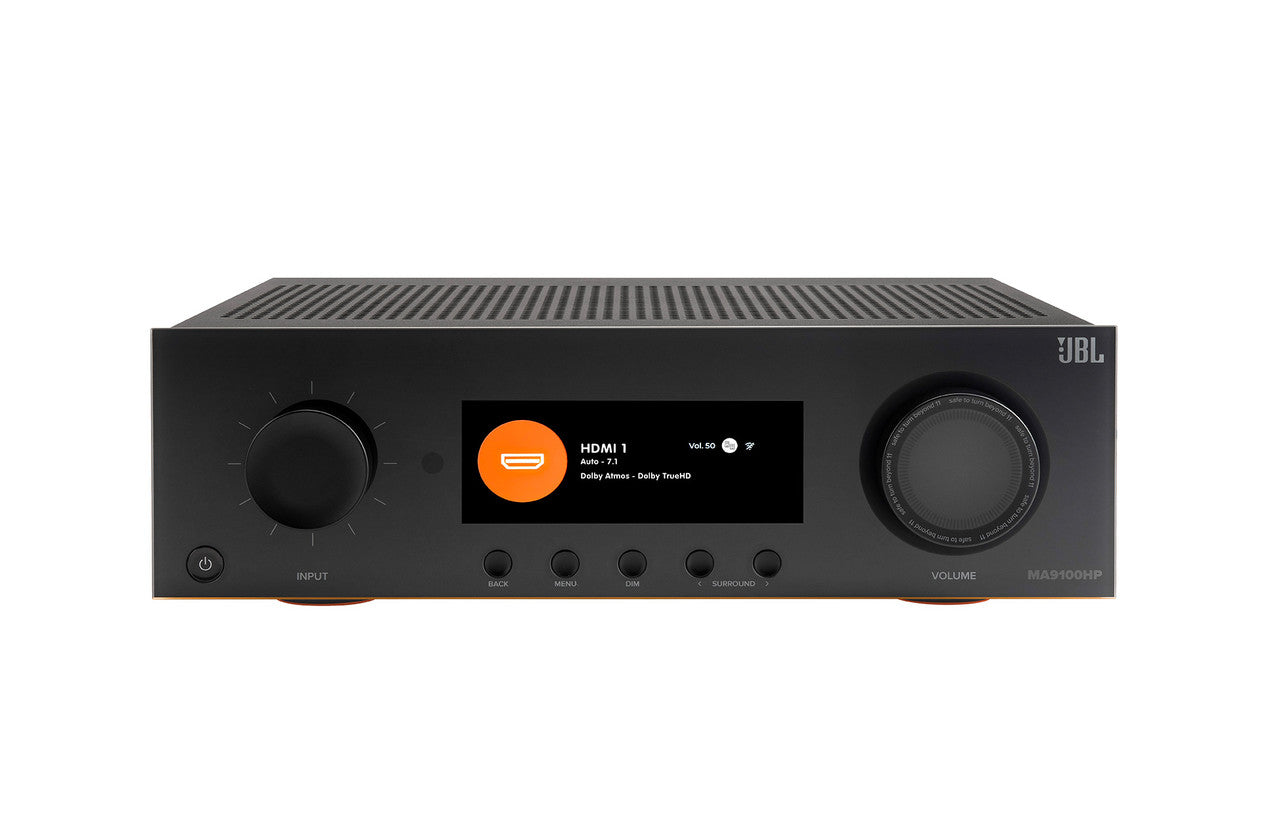

JBL MA9100HP AV Receiver

The JBL MA9100HP high-performance AV Receiver delivers stunning realism for the ultimate home cinema experience. It is designed with a passion for music and movies, bringing both to life with true high fidelity.

£1,899.00 GBP

Sale Out of Stock

Finish: Black

Quantity

Description

Stunning audio and video performance

High-performance 9.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience

Intuitive setup with a minimalist modern design

Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC

High-performance immersive surround sound

Dolby Atmos and DTS:X decoding, supports up to 9.1 or 7.1.2 or 5.1.4 channel configurations.

Bring both music and movies to life with true high fidelity.

The JBL MA9100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 9-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA9100HP features nine channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Taking performance to the next level, the MA9100HP comes “Dirac Live Ready” for automatic room correction, assuring audiophile-quality sonics and allowing integrators and power-users to optimize the system to their personal room acoustics. Featuring a secondary HDMI video output and audio Zone, content can be made available in a secondary location. In addition to physical controls, the MA9100HP allows for IP control for third party control system integration.

What's in The Box?

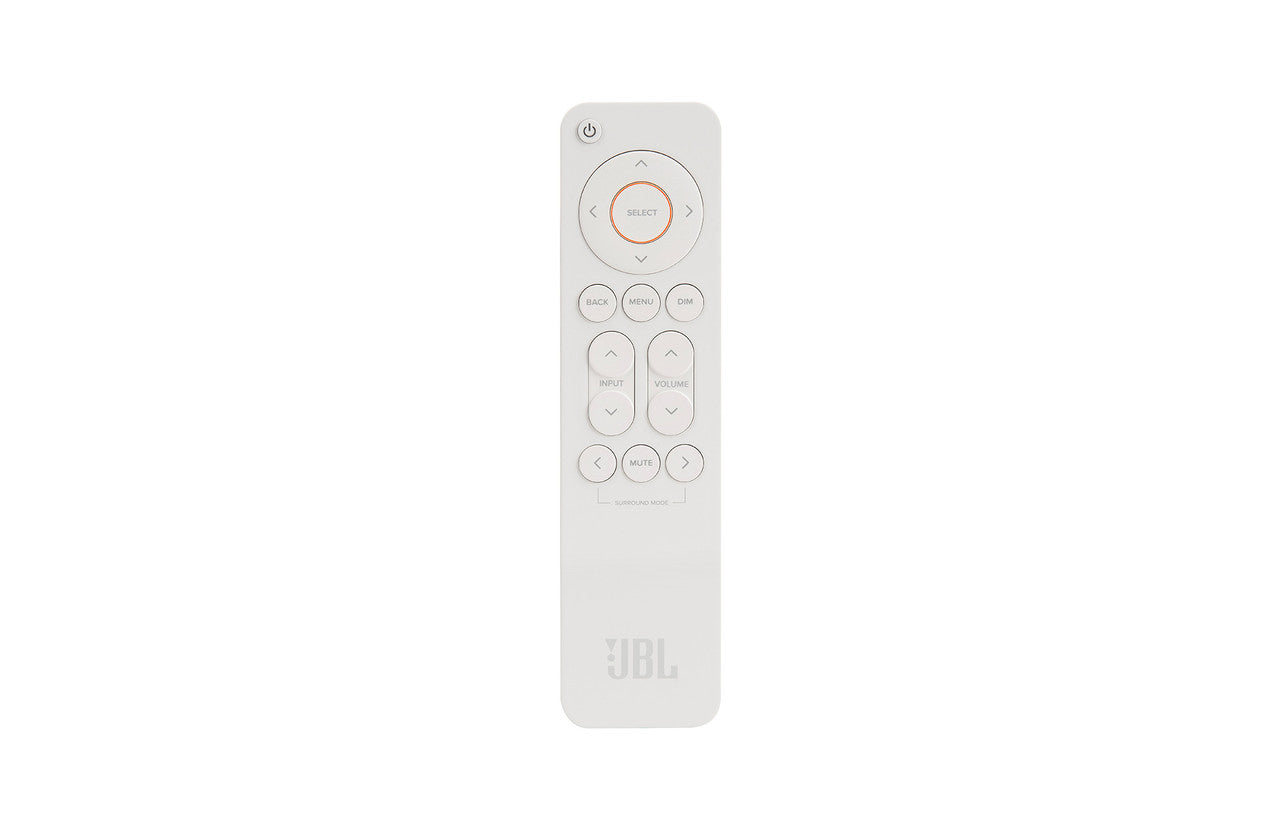

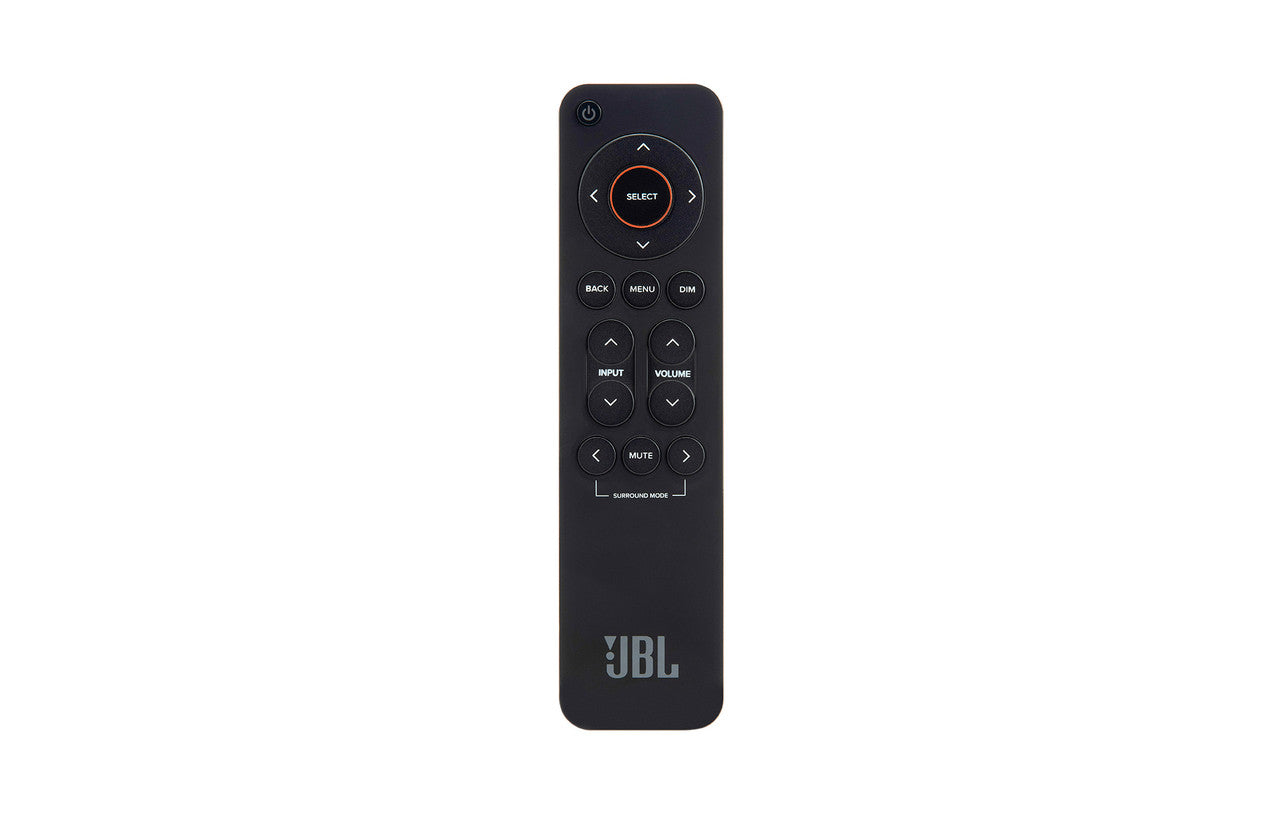

1x IR Remote
2x AAA batteries
1x Bluetooth antenna
2x Wi-Fi antenna
1x Power Cord
1x Quick-Start Guide
1x Safety Sheet

Specifications

General Specifications

HDMI eARC
Yes

HDMI Audio Return Channel
Yes

8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)
3

HDMI 2.1 enhanced gaming features
Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)

HDR 10+, Dolby Vision
Yes , Yes

File format
MP3 / MPEG-4 AAC

Pure Analog
Yes

EZ Set EQ
Yes

Front channel bi-amp
Yes

Digital signal processing
up to 24-bit/192kHz

Mains voltage
110 – 240V, 50–60Hz

Max. power consumption
900W

Standby power consumption
<0.5W

Audio Specifications

Channels
9.2

FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8O)
140W

Rated Power @ 8O (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
140 W RMS

Rated Power @ 4O (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
240 W RMS

Dimensions

Dimensions incl. feet and speaker terminals (H x W x D)
5.3" x 17.0" x 15.6" (135.0mm x 432.0mm x 396.4mm)

Weight
16.8lb (7.6kg)

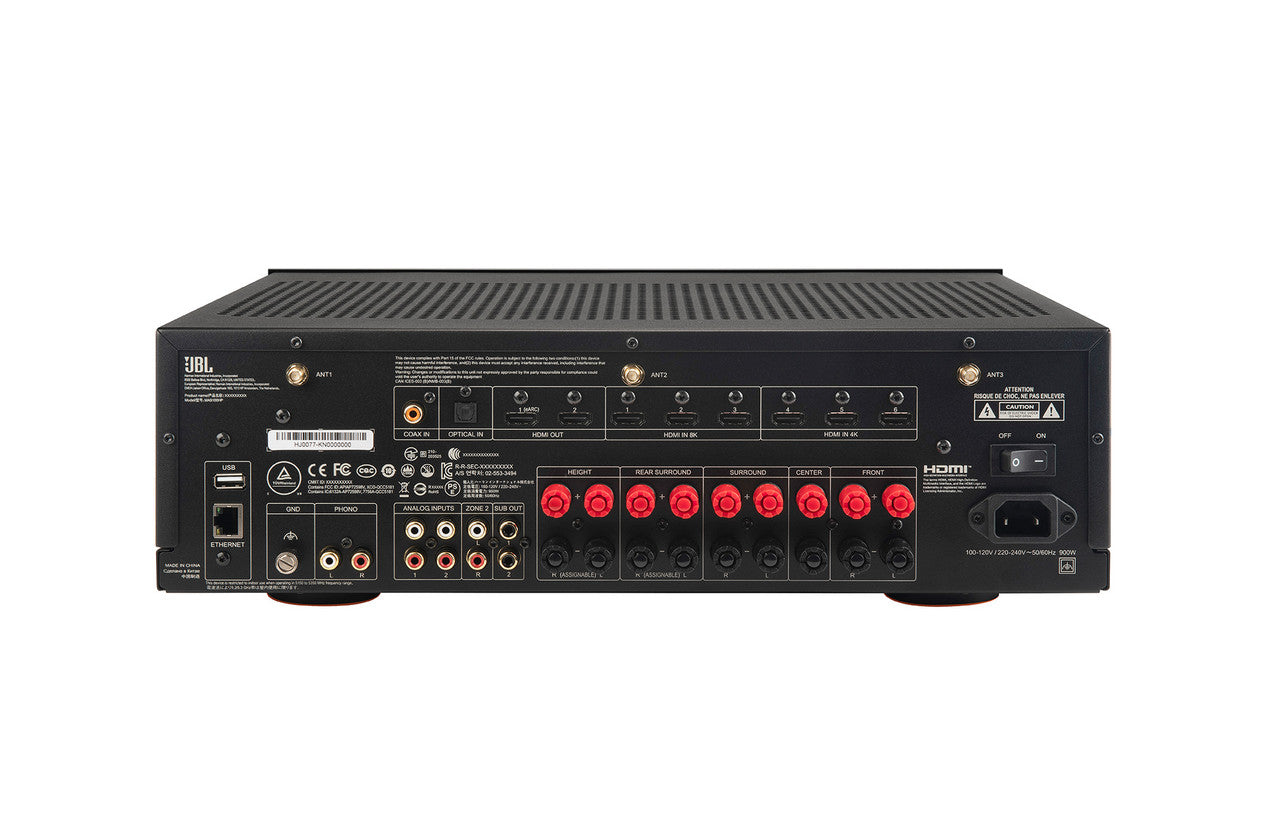

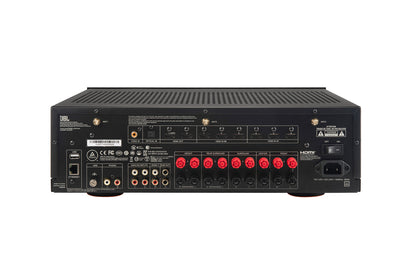

Control and Connection Specifications

HDMI Input/Output
6/ 2

Wi-Fi
Yes (2.4/5GHz)

Bluetooth receiver
Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)

Bluetooth transmit
Yes

Digital Audio Input
1 Coax, 1 Optical, 1 USB

Stereo analog input
2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground

Pre-Out (single ended RCA)
Stereo Zone 2, Subwoofer 1, Subwoofer 2

Ethernet Port (RJ45)
Yes

Awards & Reviews

Trusted Reviews

"it sounds fantastic, from a detailed and balanced two-channel delivery to a dynamic and engaging multichannel performance that brings movies vividly to life."

HIGHLY RECOMMENDED AWARD | READ MORE
