Klipsch R-8SW Subwoofer
Klipsch R-8SW Subwoofer
Get the bass you need from a humble design, the R-8SW subwoofer's compact cabinet allows for discrete, flexible placement without sacrificing detailed low frequencies needed for a smaller room.
Couldn't load pickup availability
Description
Description
Get the bass you need from a humble design, the R-8SW subwoofer's compact cabinet allows for discrete, flexible placement without sacrificing detailed low frequencies needed for a smaller room. The 8-inch down-firing copper injection-molded graphite woofer is powered by an all-digital amplifier to deliver abundant power with efficiency and accuracy.
Features:
- Rich Bass
- Compact Design
- Spun Copper IMG Woofer
- All-Digital Amplifier

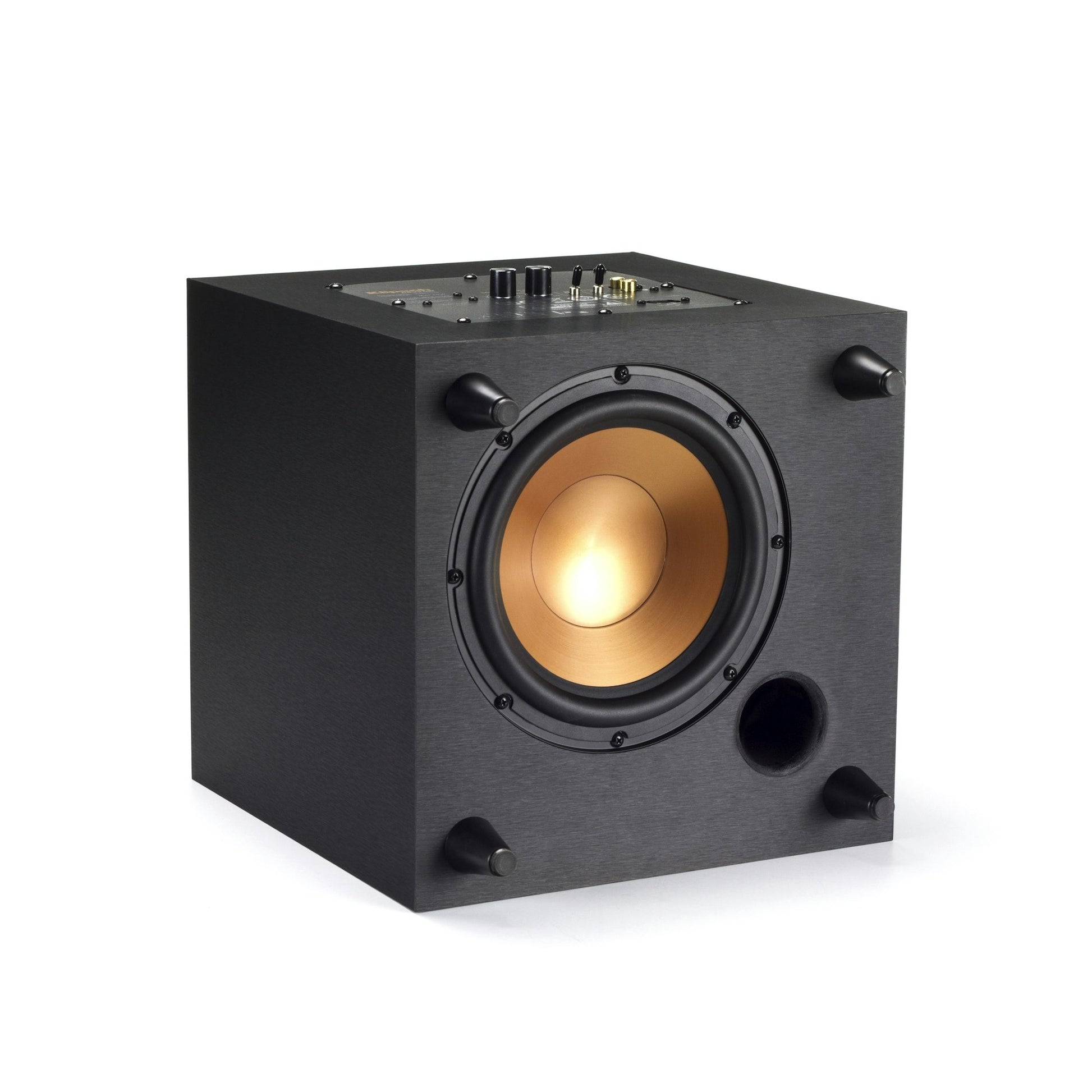

- Down-Firing Driver
- Low-Pass Crossover and Phase Control
- Line/LFE Inputs
- MDF Cabinet with Brushed Polymer Veneer
SPUN COPPER IMG WOOFER
Injection Molded Graphite (IMG) woofers are exceptionally light while
being extremely rigid – providing remarkable low frequency response, with
minimal cone breakup and distortion.
COMPACT DESIGN
Compact cabinet design allows for discrete, flexible placement without
sacrificing cinematic and detailed low frequencies.
ALL-DIGITAL AMPLIFIER
The built-in all-digital amplifier delivers ample power with high efficiency
and true-to-source accuracy in reproduction.
DOWN-FIRING DRIVER
The high performance driver provides deep bass and placement flexibility.
LOW PASS CROSSOVER AND PHASE CONTROL
Allows you to blend the subwoofer’s low-frequency tones with other Klipsch
speakers as well as establish the ideal level of bass.
LINE/LFE INPUTS
Ensures compatibility with old and new receivers.
MDF CABINETS WITH BRUSHED POLYMER VENEER FINISH
Contemporary aesthetic with absolute durability that results in a seamless
integration into any décor.
FRONT-MOUNTED LED POWER INDICATOR
Let’s you know when the system is on or off.
Specifications
Specifications
FREQUENCY RESPONSE
38Hz-120Hz +/-3dB
MAXIMUM ACOUSTIC OUTPUT
108dB
AMPLIFIER
All digital
AMPLIFIER POWER
50W / 150W
DRIVE COMPONENTS
8” (20.3cm) high excursion, IMG, down-firing woofer
ENCLOSURE MATERIAL
MDF
ENCLOSURE TYPE
Bass Reflex via down-firing tube port
INPUTS
Line level/LFE RCA jacks
HEIGHT
13.25" / 33.66 cm
WIDTH
11.75" / 29.85 cm
DEPTH
11.75" / 29.85 cm
WEIGHT
15.0 lbs (6.8 kg)
FINISH
Brushed Black Polymer Veneer
BUILT FROM
2017
FEATURES
Volume, Lowpass, Phase, Auto Power
PHASE
Switchable 0-180 degrees
POWER CORD
Detachable
2 Year Warranty
2 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
Downloads
Downloads
User Manual
