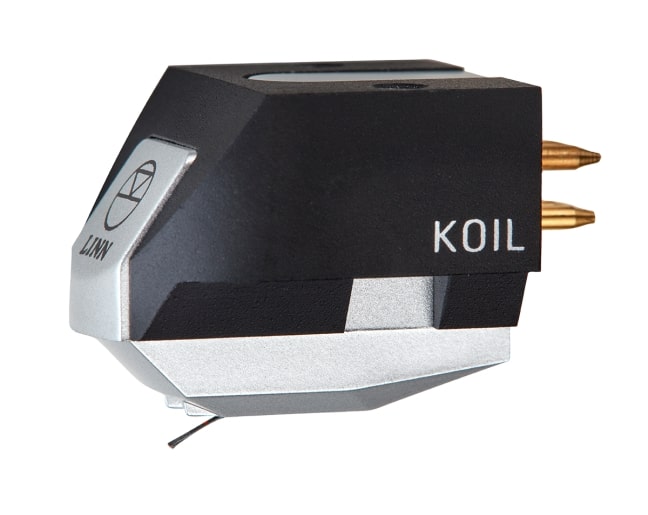

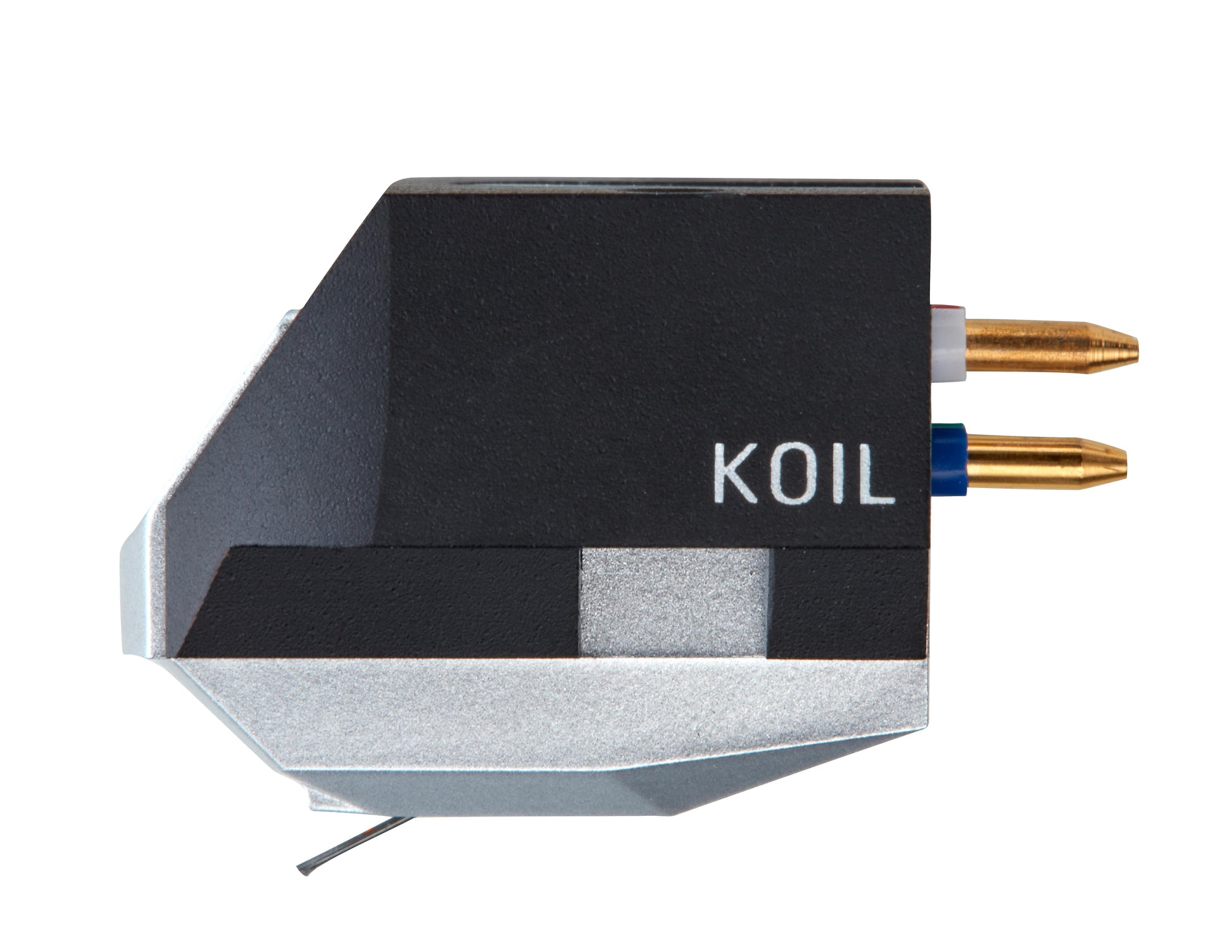

Linn Koil Moving Coil Cartridge
Linn Koil Moving Coil Cartridge
Koil is a superb first step onto the ladder of premium moving coil cartridges.
This product is only available for collection at Soundcraft
Couldn't load pickup availability
Description
Description
Koil is a superb first step onto the ladder of premium moving coil cartridges. This Majik-level cartridge provides a step up in performance from Adikt; and is available either as an upgrade, or fitted as standard to a new Majik LP12 MC.
Choose Koil if you intend to use your Majik LP12 with a moving coil phono preamplifier. Upgrade from Adikt to progress your journey along the path to vinyl playback perfection.
Specifications
Specifications
Stylus Type
Nude Microlinear
Cantilever
Boron
Coil Wire
Copper
Pin Connection Type
1.2mm gold pin
Mounting Points
2
Output Voltage
0.4mV @ 5cm/s
Channel Balance at 1kHz
1.0dB
Channel Separation at 1kHz
27dB
Load Resistance
100ohms
Load Capacitance
100nF
Tracking Force
1.8-2.2g (2.0g nom)
Cartridge Mass
7.6g
