Marantz PM6007 Integrated Amplifier

Description

Featuring an upgraded, high-quality DAC, digital inputs and a newly revamped built-in phono equalizer.

The Marantz PM6007 integrated amplifier delivers ample connectivity and creates a realistic listening experience. Your next step into Marantz high-fidelity

A World Of Marantz Awaits

The PM6007 integrated current feedback amplifier powers 2x 45W (8ohms RMS, 20Hz – 20kHz) to offer a refined audio experience.

Meticulously And Masterfully Tuned

During the extensive tuning process, Marantz sound masters carefully refine and curate each component for optimal performance.

Wide Range Of Connectivity

Experience Hi-Res audio files exactly as intended through the following gold-plated inputs: 5 analogue inputs, one coaxial input and two optical digital inputs.

An Updated Audio Experience

The carefully selected high-quality DAC offers a clean sound for a real Marantz experience.

Current Feedback Amplifier

The Current Feedback Amplifier technology provides wide-bandwidth and high-speed sound reproduction. In combination with the high current power supply, the PM6007's amplifier holds a large energy reserve to easily drive even the most demanding speakers. An advanced thermal compensation avoids memory distortion for clean amplification under any circumstances

Reference Quality D/A Conversion For Digital Input

The PM6007 features a new Hi-Res D/A conversion. It is equipped with a reference class D/A converter, which provides up to 192-kHz/24-bit resolution for optimum fidelity with your Hi-Res audio file types.

High Current Power Supply

The power supply supports high current, high speed Schottky Barrier Diodes and high current storage capacitors fed by a Toroidal Transformer that together provide wide dynamic range and low impedance drive capability.

Toroidal Transformer

A Toroidal Transformer has several advantages over a normal EI core transformer. The highly efficient design delivers more power compared to the same size EI core transformer. In addition, the shape of the Toroidal Transformer delivers low electromagnetic radiation and mechanical vibration for better sound quality.

Specifications

Features

Channels
2

Current Feedback Topology
Yes

Full balanced circuitry architecture
No

Double Mono Power Amp construction
No

Phono EQ: Standard / Marantz Musical / Marantz Musical Premium
Yes / No / No

Digital in: USB-B / optical / coaxial / USB-A
No / 2 / 1 / No

Sample Rate digital In
192 kHz / 24-bit

USB-A: DSD / WAV / FLAC / AIFF / ALAC
No

USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6
No

USB-B PCM sample rate
No

Asynchronous mode rear USB
No

Bit-perfect transmission
No

Ground isolator for DAC Mode operation
No

Tuner: DAB / DAB+ / FM (RDS)
No

Bluetooth / aptX / NFC
No

Streaming audio from PC
No

Wi-Fi / Wired LAN
No

Internet radio
No

AirPlay 2
No

Roon Tested
No

Spotify Connect* / Tidal* / Deezer* / others *
No

Amazon Prime Music* / Pandora*
No

HEOS Multiroom and Streaming
No

Voice Control - Works with Amazon Alexa
No

Voice Control - Google Assist / Apple Siri
No

Voice Control - Microphone built-in
No

DSD-Audio network streaming
No

Lossy formats: MP3 / WMA / AAC
No

Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF
No

Gapless Playback
No

Remote APP: iDevice / Android
No

Analog Mode
No

HDAM version
SA3, SA2

Power Transformer: Toroidal / El
Yes / No

High Grade Audio Components
Yes

Customised Components
Yes

Symmetric PCB Layout
No

Aluminium extrusion heat sink
Yes

Copper Plated Chassis
No

Tri Tone Control (Bass / Mid / Treble)
No

Balance / Bass / Treble / Loudness
Yes / Yes / Yes / No

Others

Marantz Musical Digital Filtering
Yes

Linear Drive Power Supply
Yes

Liniear volume control
Yes

BI-AMP and Multichannel option
No

Shottky diodes
Yes

Input buffer amp (all inputs / CD only)
No / No

System block shielding: Copper / metal / none
No / No / Yes

Double Layer Bottom Plate
No

Low Noise OELD display
No

Low noise LCD display
No

Source Direct
Yes

Power Amp direct
No

5mm aluminium top plate
No

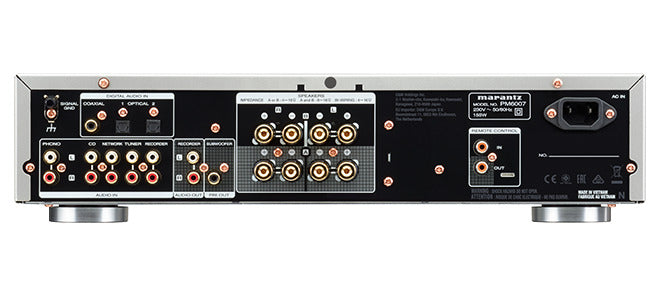

Inputs Outputs

Audio Inputs
5

Digital in: USB-B / optical / coaxial / USB-A
No / 2 / 1 / No

Phono Input: MM / MC
Yes / No

Audio Outputs
1

Balanced In / Out
No / No

Pre-out / Main-in
subwoofer / No

Power Amp Direct IN
No

HDMI: inputs / outputs
No

Gold Plated Cinch
Yes

Speaker A / B
Yes

Speaker Terminals
Metal (Gold) Screw

Number of terminals
4

D-Bus
Yes

Floating Control Bus (3.5 mm mono jack x 2)
No

Headphone Out
Yes

Headphone Gain Control (low / mid / high)
No

Specifications

Power Output (8 / 4 Ohm RMS)
45 W / 60 W

Frequency response
10 Hz - 70 kHz

Total Harmonic Distortion
0.08%

Damping Factor
100

Input Sensitivity: MM
2.2 mV / 47 kOhm

Input Sensitivity: MC
No

Signal to Noise Ratio: MM/MC
83 dB / No

Input Sensitivity: High level
200 mV / 20 kOhm

Input Sensitivity: Balanced High level
No

Signal to Noise Ratio: High level
102dB(2V input)

Input Sensitivity: Power Amp Direct IN
No

Signal to Noise Ratio: Power Amp Direct IN
No

General

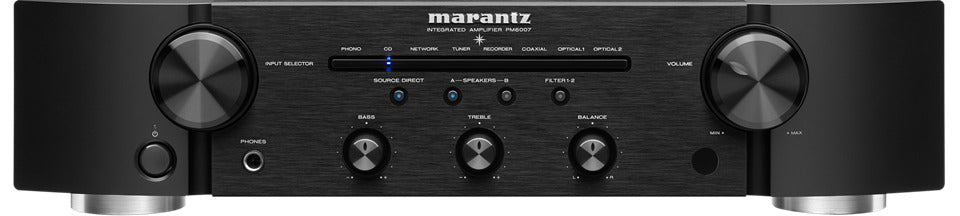

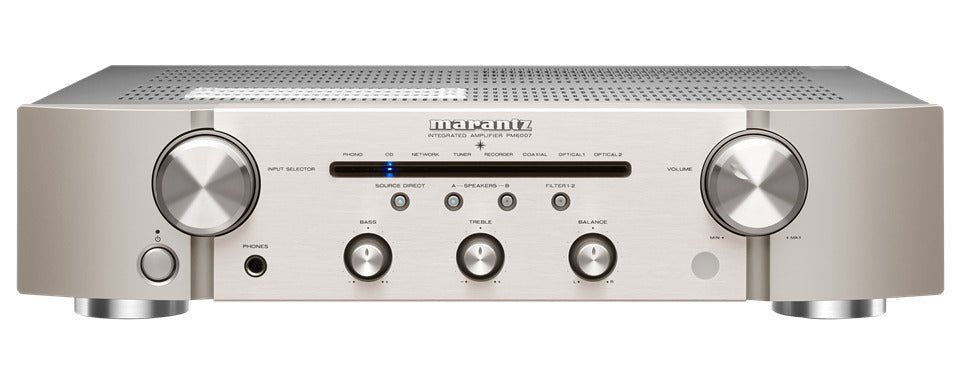

Available Colors: Gold / Silver / Black / Silver-Gold
No / No / Yes / Yes

Metal Front Panel
Yes

Power Consumption in W
155

Standby Consumption in W
0.3

Auto Power off
Yes

Detachable Power Cable
Yes

Remote Control
RC004MCD

System Remote Function
Yes

Maximum Dimensions (W x D x H) in mm
440 x 370 x 105

Weight in kg
7.6

Carton Maximum Dimensions (W x D x H) in mm
517 x 189 x 468

Carton Weight (inc. product) in kg
9.7
