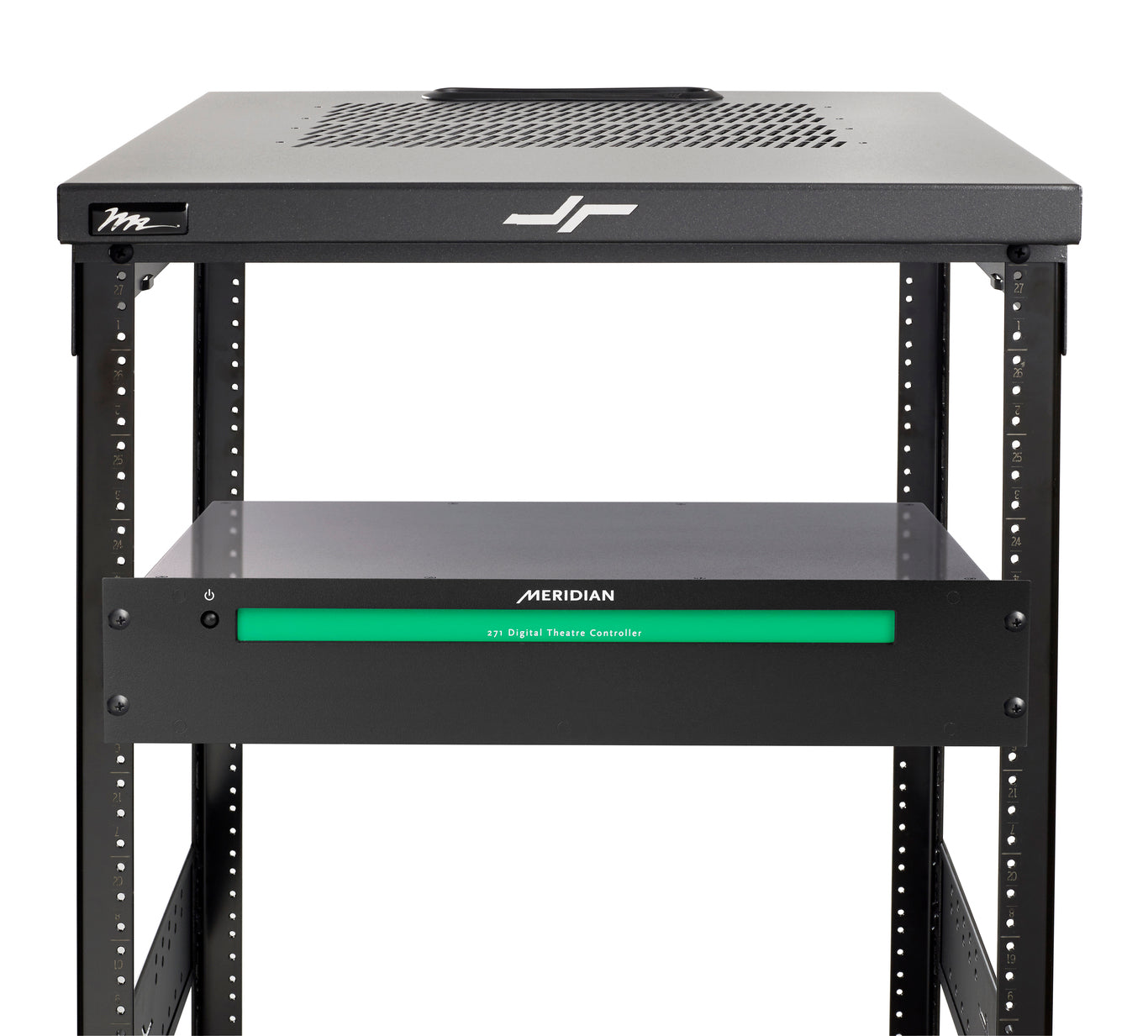

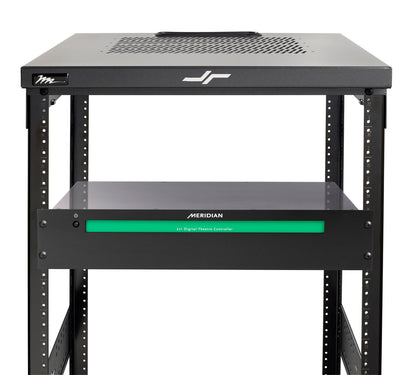

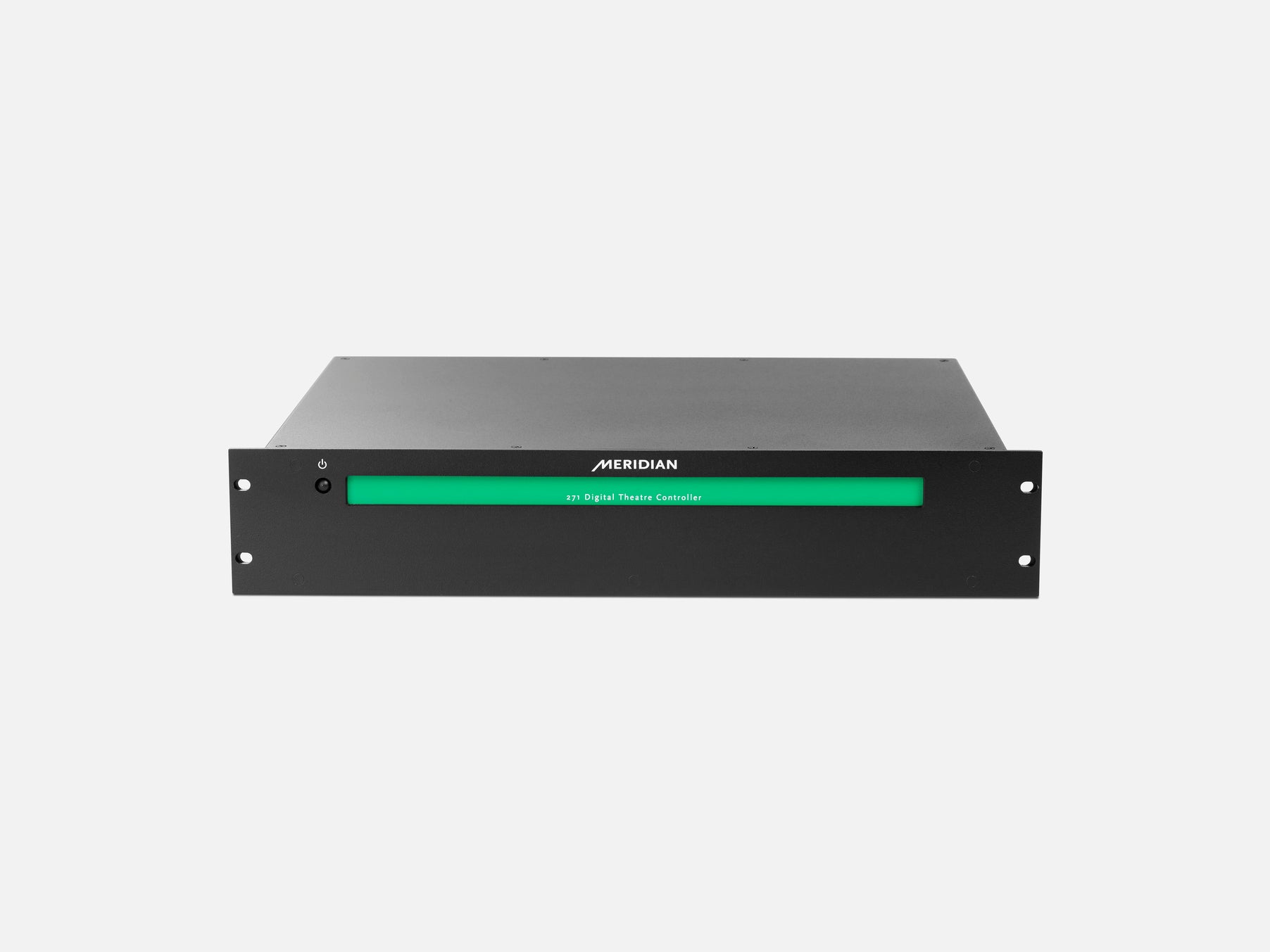

Meridian 271 Digital Theatre Controller

Meridian 271 Digital Theatre Controller

The Meridian 271 Digital Theatre Controller effortlessly integrates Meridian DSP loudspeakers into a theatre that would otherwise be unable to access the authentic, natural sound from Meridian.

Regular price £3,000.00 GBP
Regular price Sale price £3,000.00 GBP
Sale Out of Stock

This product is only available for collection at Soundcraft

Description

True Immersion

Designed to work with any processor on the market, the 271 is a High Resolution interface that allows you to design and build high performance theatre systems with 20 or more channels.

The 271 is rack-mountable and can be stacked to give 40 or even 60 audio output channels, all with Meridian’s (MHR) High Resolution Audio output and a simple IP control interface.

Key Features:

  • Compatible with any digital or analogue surround processor.
  • Enables Meridian’s award-winning loudspeakers to support any 3D audio format, including Dolby Atmos, Auro 3D and DTS:X.
  • Enables access to Meridian’s peformance enhancing technologies, including Enhanced Bass Alignment (EBA), Apodising and Boundary Control.
  • IP, IR, Trigger and Third Party control options enable seamless integration and flexibility within the home theatre.

IP Control

IP Control allows for seamless integration and flexibility within the home. Also includes both digital and analogue inputs and outputs.

Digital Signal Processing

As pioneers and leaders in the field of Digital Signal Processing (DSP) technology, Meridian is able to deliver your music authentically to recreate the passion and involvement of your musical moments. Power-efficient, active DSP crossovers are individually tailored to distribute music to each speaker, bringing your music to life.

SpeakerLink

Traditional audio systems often require large, expensive cables to maintain their performance. Meridian's SpeakerLink uses an “Ethernet style” cable that delivers pristine digital sound and control down a single cable between Meridian components. The result is simple, unobtrusive, and cost-effective cables that are easy to install

Meridian High Resolution (MHR)

MHR was the first approved encryption method for transferring high definition digital audio between components. Previously, it had to be in the analogue domain, reducing quality. MHR allows secure movement of high resolution digital audio within a Meridian system, without compromise, improving quality by reducing cyclic repetition.

Specifications

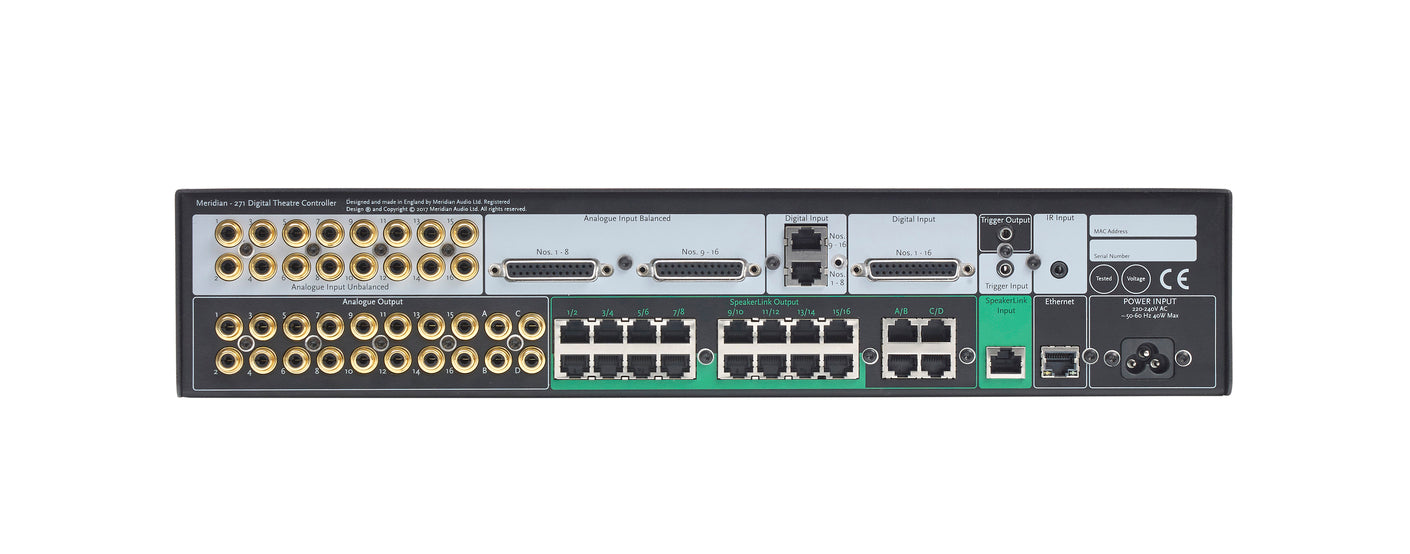

AUDIO INPUTS

  • 16 unbalanced analogue inputs on RCA phono connectors
  • 16 balanced analogue inputs on twin DB25 connectors
  • One SpeakerLink input for pass-through of two-channel digital audio (MQA compatible)
  • Digital 16-channel input on DB25 connector (Trinnov pin configuration)
  • Digital 16-channel AES input on twin RJ45 connector (Datasat and Storm Audio pin configuration)

AUDIO OUTPUTS

  • 20 unbalanced analogue outputs on RCA phono connectors
  • 20 SpeakerLink digital outputs

CONTROL SIGNALS

  • Ethernet connection for IP Control / control driver support for third party control systems
  • IR on 3.5mm jack
  • Trigger input on 3.5mm jack to enable remote on/off switching
  • Trigger output on 3.5mm jack to allow us

DISPLAY

  • Power LED

DIMENSIONS

  • HEIGHT: 88mm (without feet)
  • WIDTH: 440mm
  • DEPTH: 358mm
  • WEIGHT: 5kg

CONSTRUCTION

  • Housed in a rack-mountable 2U case

POWER

  • Advanced linear power supply: 110–120V ac 50–60Hz | 220-240V ac 50-60Hz
