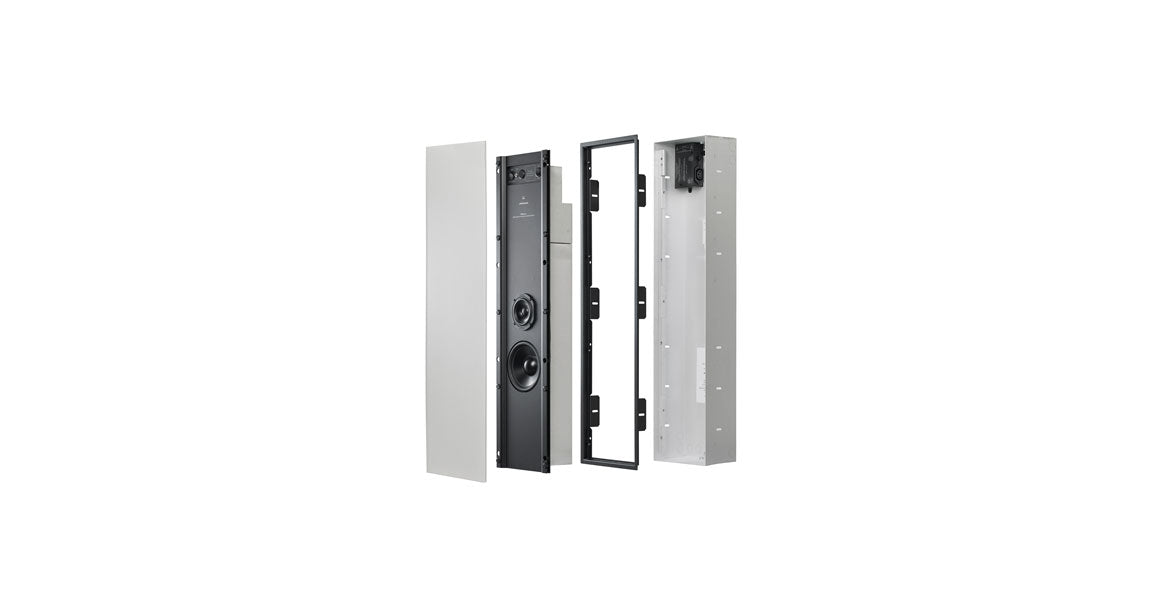

Meridian DSP520.2 In-Wall Active Speakers (Single)

Lifelike and Spacious Sound

Powered by Meridian’s exclusive ‘CLASS-M’ DSP engine and integrated with ‘DYNAMIC’ Hi-Res amplifiers, the DSP520.2 is perfect for delivering Meridian's renowned audio quality discreetly in any living or cinema room and the added L+R feature also makes it a powerful soundbar solution. Incorporating the latest audio enhancing technologies from Meridian, including Enhanced Bass Alignment (EBA) and Centre Elevation, the DSP520.2 provides incredibly lifelike and spacious sound with unmatched levels of performance.

Key Features:

• All-new quad-amp DSP design with 4 powerful amplifiers delivering over 100W RMS into 8 Ohms, per drive unit.
• Full range sound, bass extension down to 40Hz and 114dB @1m.
• Stackable for high SPL systems >105dB at 9.4m in 5 stack configuration.
• Optimised DSP for horizontal or vertical mounting, ideal for sound-bar or centre channel usage.

SpeakerLink

Traditional audio systems often require large, expensive cables to maintain their performance. Meridian's SpeakerLink uses an “Ethernet style” cable that delivers pristine digital sound and control down a single cable between Meridian components. The result is simple, unobtrusive, and cost-effective cables that are easy to install

FIFO Buffering

Each sample of a digital recording must remain evenly spaced in time. Unfortunately, timing can vary, especially when reading discs. This is “jitter”, degrading music's sense of space and diminishing realism. Meridian's multiple “First In, First Out” buffering system minimises jitter, ensuring perfect timing and improved clarity. You enjoy a clearer feeling of the instruments and their interrelationship.

Meridian Apodising Filter

Filters are critical in digital audio. Commonly they introduce distortion and harshness because of "pre-ringing". Early digital recordings suffer from harshness too, due to primitive filters. After painstaking research, Meridian developed a special filter that avoids pre-ringing, so it can be steeper, cleaning up the effects of early filters. The result: a better, cleaner sound from recordings old and new.

Wide Range Driver

Loudspeakers use crossovers to “divide” music into bands their drivers can reproduce. This introduces distortion, reducing sound quality – particularly on human voice recordings. Designing a single driver for both mid and high frequencies made a crossover within the vocal range unnecessary, avoiding distortion and reproducing more lifelike vocals at all volume levels.

Enhanced Bass Alignment (EBA)

High or low, all sounds travel at the same speed, so all the sounds from a live musical event arrive at your ear at the same time, whatever frequencies they contain. Loudspeakers, however, have a problem when playing low frequency sounds at the same time as mid and high frequencies – the bass arrives late, and the deeper the sound, the later it arrives. This delayed bass causes music to lose its impact and reduces the sense of the recorded space – it is often described as “boomy”.

The goal is to have time-accurate loudspeakers, where all reproduced frequencies start and end at the same time. In a loudspeaker, this timing is affected by the crossover, driver, and enclosure type. To eliminate the delay between low, and mid and high frequencies, Meridian has designed a combination of digital filters and time delays for the mid and high frequencies. This solution enables the mid and high frequencies to “wait” for the low frequencies, delivering perfectly-timed music playback.

Mid and high frequencies are delayed to time-align them, while upper bass is delayed with a special type of patented filter. These features must be implemented entirely in the digital domain, making them impossible to achieve in any passive or analogue-active loudspeaker design.

Enhanced Bass Alignment provides accurate time-alignment of the drivers in the system, delivering exceptional imaging and a clear, transparent, more life like sound.
