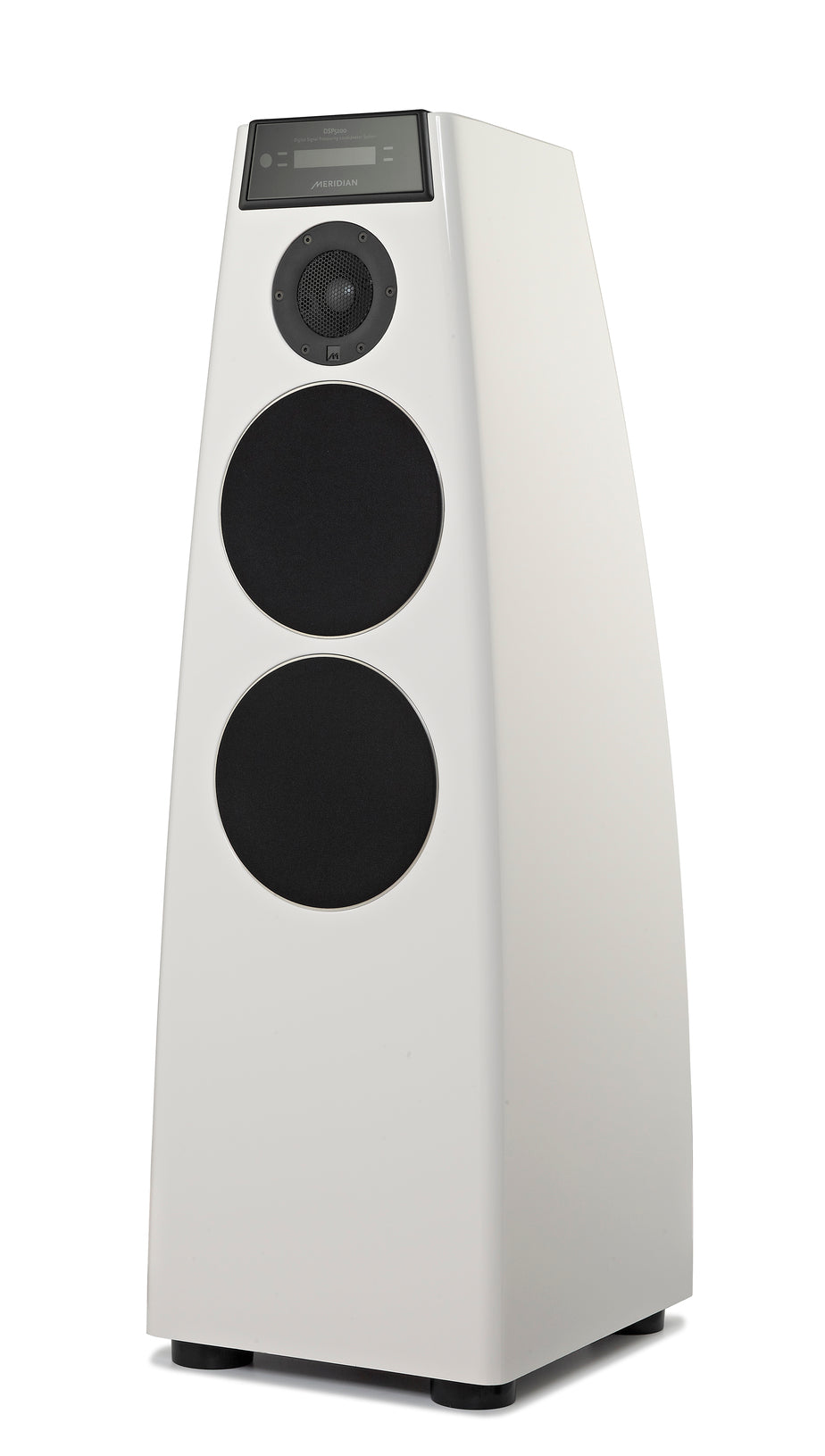

Meridian DSP5200SE Active Floorstanding Speakers (Pair)

The smallest of Meridian’s Special Edition range of enhanced DSP Loudspeakers, the DSP5200SE is under a metre high, but delivers exceptional performance. Here is where the Meridian DSP Loudspeaker philosophy really comes into its own, delivering simply stunning bass and full-range performance from a relatively small cabinet.

Over 30 years of engineering development, coupled with extensive research in Psychoacoustics into how we perceive sound, have informed every aspect of the Special Edition series. These findings dictated improvements that have led to the loudspeaker’s lifelike performance.

Its beryllium tweeter and wideband analogue electronics extend frequency response to over 32kHz. Clamp rings minimise resonance from the drive units and solid aluminium feet provide enhanced stability.

The additional DSP device used by the Special Edition loudspeakers doubles the available processing power allowing all audio, including MQA Core streams, to be rendered at 176.4/192kHz regardless of the incoming sampling rate. This results in increased resolution, detail and clarity to provide maximum fidelity from movie soundtracks as well as music.

Finished as standard in a piano lacquer black or white, the Special Edition Range is also available in any of the 270 Meridian Select colours.

Key Features:

• Outstanding performance. Three powerful wide range 75W amplifiers deliver a maximum output level of 116dB at 1m.
• Light weight, dual voice coil, Beryllium tweeter for refined high frequency performance (up to 32kHz).

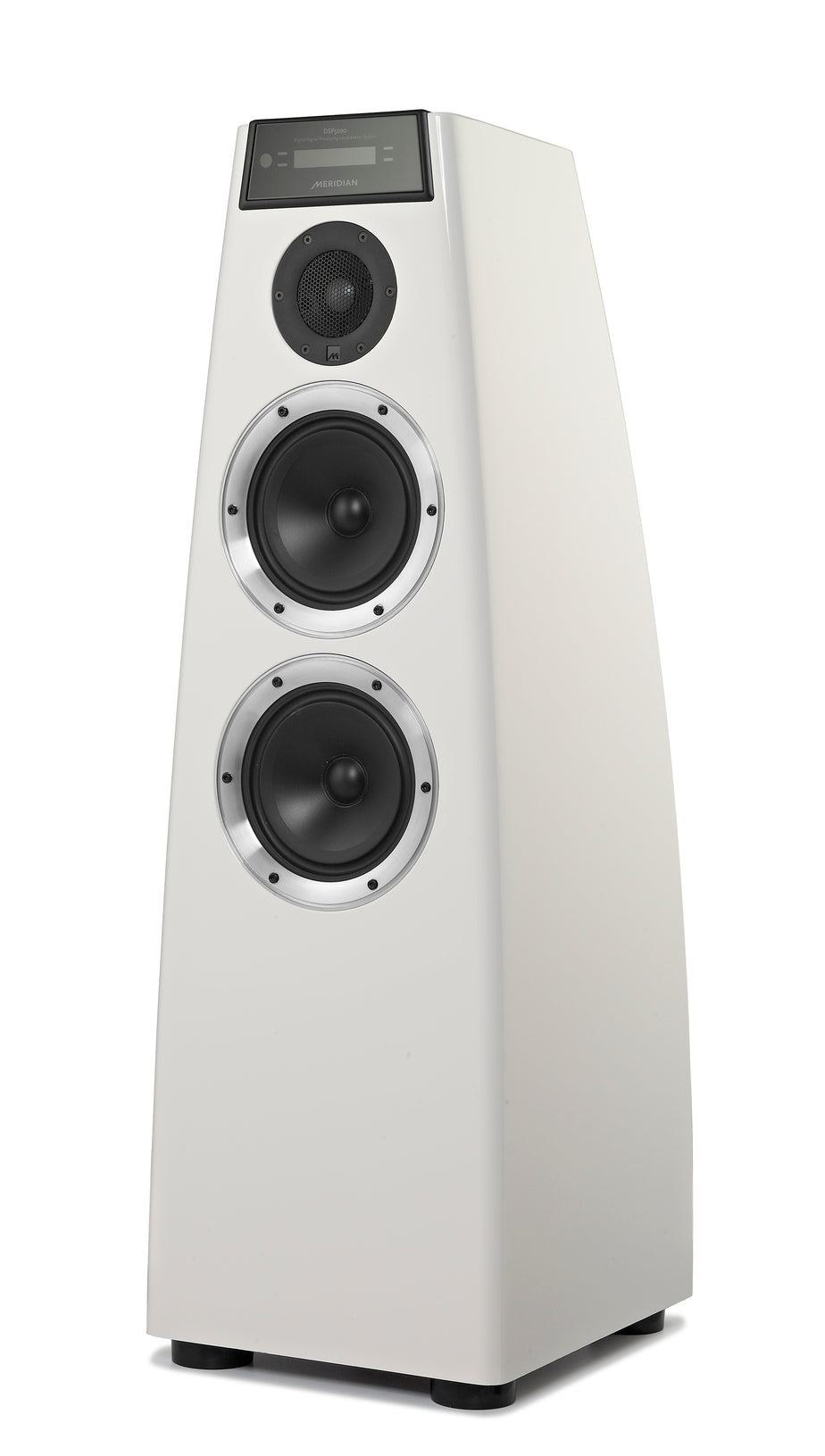

• Clamp rings ensure that the bass and midrange drivers are isolated from the cabinet, giving the most controlled and detailed sound possible.
• New extended-bandwidth analogue electronics, optimised to deliver maximum performance from high-resolution recordings.

Digital Signal Processing

As pioneers and leaders in the field of Digital Signal Processing (DSP) technology, Meridian is able to deliver your music authentically to recreate the passion and involvement of your musical moments. Power-efficient, active DSP crossovers are individually tailored to distribute music to each speaker, bringing your music to life.

DSP Loudspeakers

The traditional setup – amplifiers driving passive loudspeakers – is inefficient, limiting sound quality. Meridian loudspeakers contain a complete, matched audio system with efficient DSP crossovers, multiple DACs and driver-specific amplifiers, giving higher overall quality, less power use, and the performance of a traditional loudspeaker eight times the physical volume.

SpeakerLink

Traditional audio systems often require large, expensive cables to maintain their performance. Meridian's SpeakerLink uses an “Ethernet style” cable that delivers pristine digital sound and control down a single cable between Meridian components. The result is simple, unobtrusive, and cost-effective cables that are easy to install

FIFO Buffering

Each sample of a digital recording must remain evenly spaced in time. Unfortunately, timing can vary, especially when reading discs. This is “jitter”, degrading music's sense of space and diminishing realism. Meridian's multiple “First In, First Out” buffering system minimises jitter, ensuring perfect timing and improved clarity. You enjoy a clearer feeling of the instruments and their interrelationship.

Meridian Apodising Filter

Filters are critical in digital audio. Commonly they introduce distortion and harshness because of "pre-ringing". Early digital recordings suffer from harshness too, due to primitive filters. After painstaking research, Meridian developed a special filter that avoids pre-ringing, so it can be steeper, cleaning up the effects of early filters. The result: a better, cleaner sound from recordings old and new.

Enhanced Bass Alignment (EBA)

High or low, all sounds travel at the same speed, so all the sounds from a live musical event arrive at your ear at the same time, whatever frequencies they contain. Loudspeakers, however, have a problem when playing low frequency sounds at the same time as mid and high frequencies – the bass arrives late, and the deeper the sound, the later it arrives. This delayed bass causes music to lose its impact and reduces the sense of the recorded space – it is often described as “boomy”.

The goal is to have time-accurate loudspeakers, where all reproduced frequencies start and end at the same time. In a loudspeaker, this timing is affected by the crossover, driver, and enclosure type. To eliminate the delay between low, and mid and high frequencies, Meridian has designed a combination of digital filters and time delays for the mid and high frequencies. This solution enables the mid and high frequencies to “wait” for the low frequencies, delivering perfectly-timed music playback.

Mid and high frequencies are delayed to time-align them, while upper bass is delayed with a special type of patented filter. These features must be implemented entirely in the digital domain, making them impossible to achieve in any passive or analogue-active loudspeaker design.

Enhanced Bass Alignment provides accurate time-alignment of the drivers in the system, delivering exceptional imaging and a clear, transparent, more life like sound.
