Naim CI-NAP 101 Mono Power Amplifier
Naim CI-NAP 101 Mono Power Amplifier

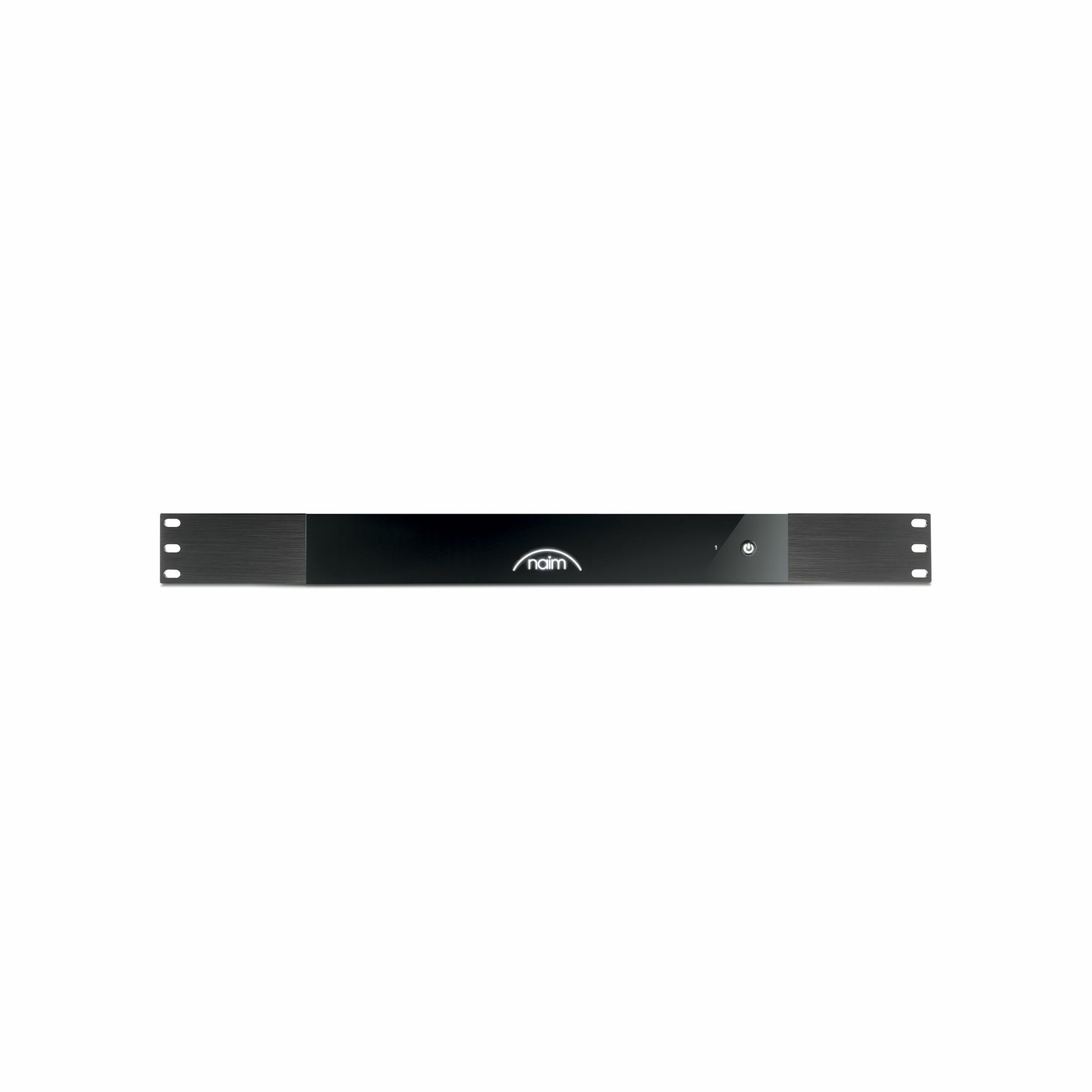

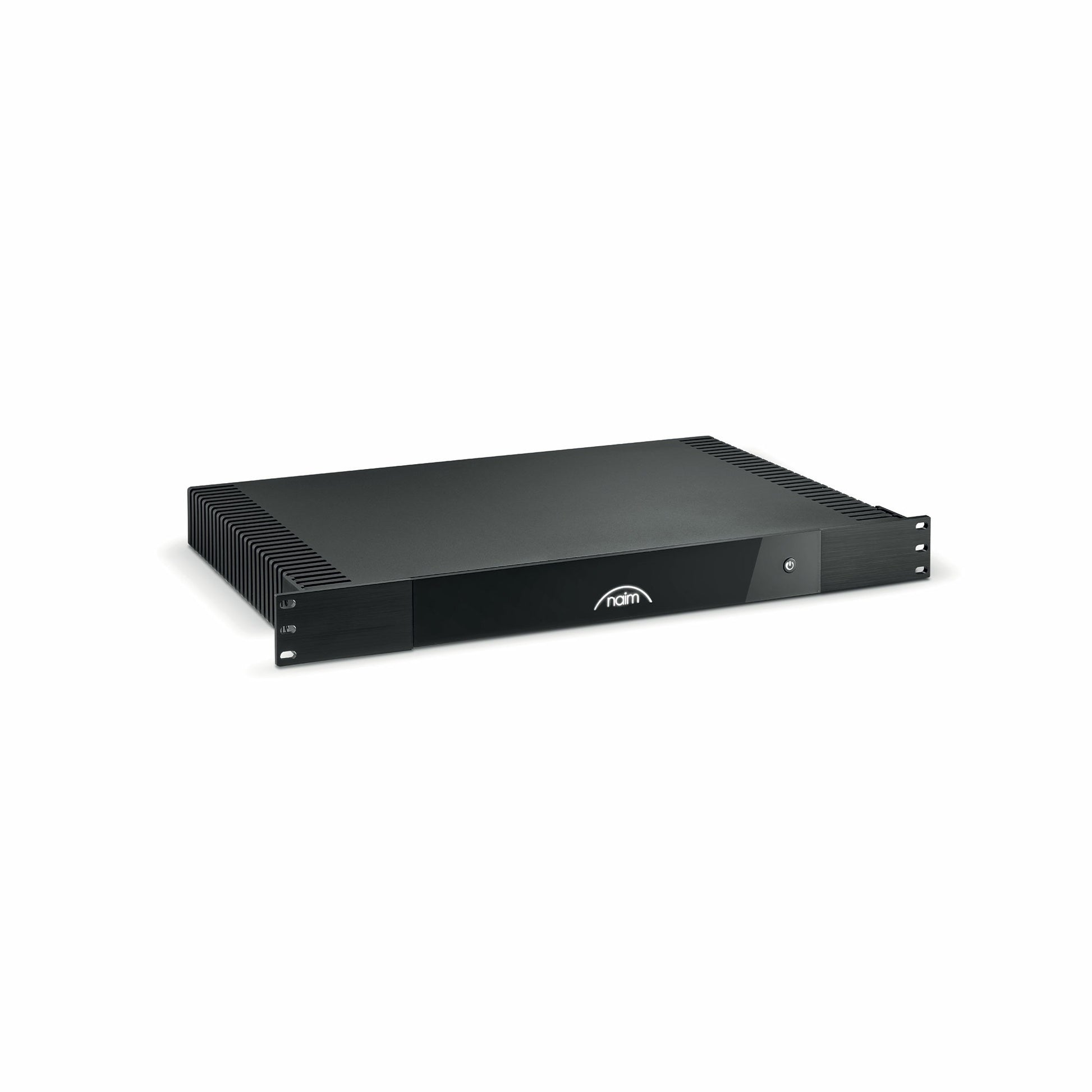

The CI-NAP 101 is a high-performance mono-power amplifier that is compatible with 70V/100V line array loudspeakers. Can also be rack-mounted.
Couldn't load pickup availability
Description
Description
Mono power amplifier
The CI-NAP 101 is a high-performance mono-power amplifier that is compatible with 70V/100V line array loudspeakers. It is designed to be ultra-quiet and compact, making it easy to install discreetly in almost any setting. The amplifier is perfect for powering subwoofers or integrated hi-fi speakers that require a lot of power, while delivering exceptional audio quality. Additionally, it can be used in combination with an audio-video processor for custom installations that deliver the ultimate in performance.
Power And Sound Quality
The CI-NAP 101, part of the CI Series range, has been designed and manufactured by Naim engineers to complement Focal integrated loudspeakers and create an outstanding sound installation. It can operate with an output load of 2 ohms, making it the perfect choice for amplifying the 1000 IWLCR Utopia loudspeakers and two 1000 IWSUB Utopia subwoofers from Focal. This discreet solution is the epitome of excellence.
Key Features

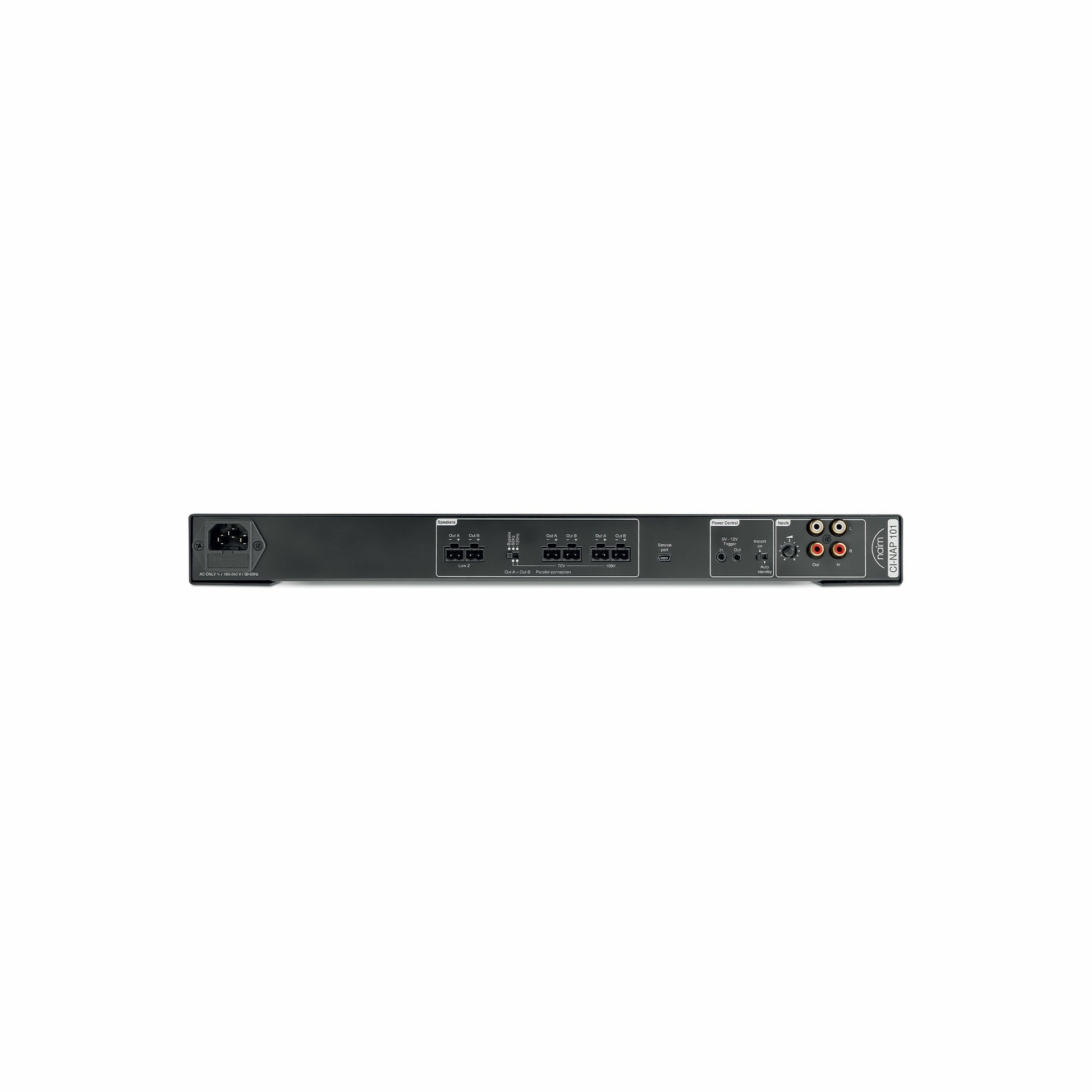

- Stereo RCA inputs and stereo RCA outputs for series connection.
- Two Euroblock outputs for easy parallel connections between speakers.
- High impedance 70V/100V line amplification with a selectable high-pass filter.
- Level control.
- Input signal detection with automatic power-down after 20 minutes.
- Universal 100V to 240V mains power supply
Focal & Naim App
With the Focal & Naim app, you can take control of your home hi-fi system and access millions of tracks with ease. You can control various product settings and features all from one convenient app. Plus, you can enjoy instant playback via your connected Naim devices, no matter which room they're in. This app is the perfect tool for music lovers who want to have all their music options at their fingertips.
The application is available from Apple Store and Google Play Store.
Specifications
Specifications
Technical Specifications
- Frequency response - line : Low impedance 3Hz - 70kHz / High impedance 50Hz/120Hz - 25kHz
- Product type : Power amplifier
- THD+N : <0,008 %
Inputs/Outputs Specifications
- Analogue gain : 29 dB
- Analogue inputs :
Stereo RCA - Mono Summing - (47 kohms) - Analogue outputs :
Line - Stereo RCA
Low impedance - Euroblock
70V - Euroblock
100V - Euroblock - Power Output :
8 ohms - 500 W
4 ohms - 800 W
100 V - 240 W
70 V - 150 W
Power Supply
- Power consumption in network standby mode : 0.5W
- Consumption in normal use : 100 W
Design
- Depth : 30 cm / 11.75 in
- Height : 4.45 cm / 1.75 in
- Width : 44 cm / 17.32 in
- Weight : 8.9 kg / 19.6 lb
2 Year Warranty
2 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
