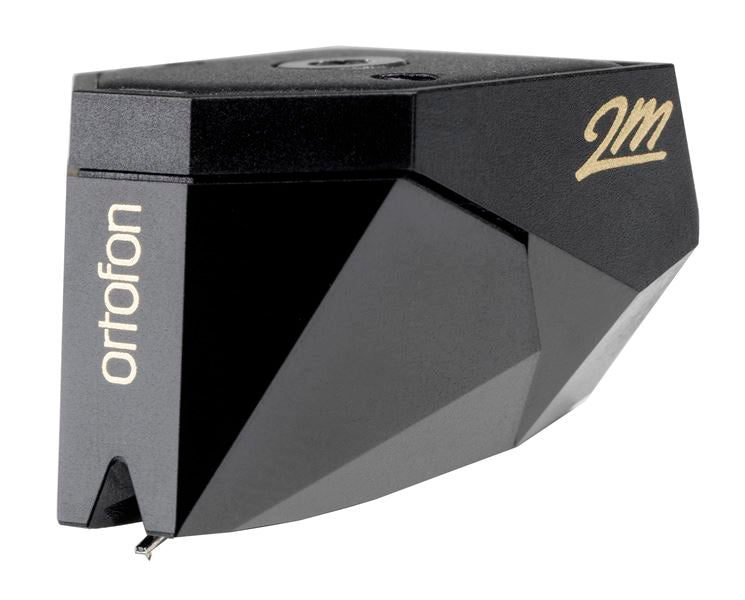

Ortofon 2M Black Moving Magnet Cartridge
Ortofon 2M Black Moving Magnet Cartridge
With the 2M Black, you will not only hear the music, but you will sense the presence of the artist in the room while listening to your favorite records.
Couldn't load pickup availability
Description
Description
Accuracy level
With the 2M Black, you will not only hear the music, but you will sense the presence of the artist in the room while listening to your favorite records.
Stylus
The 2M Black is graced with a Shibata diamond that gives it contact with the groove like nothing else. The slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high frequency groove information.
Features
The 2M Black uses a special engine featuring Ortofon’s very own invention: split pole pins upgraded with a silver-plated copper wire.
Compatibility
The 2M Series is designed for easy cartridge mounting, weight, and size to fit the most common turntables today.
The 2M Series are available in four different product variant configurations: the 2M for most common turntables on the market; the 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm; the 2M Verso, for bottom mount headshells; and the 2MR, which is designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.
2M Black accessories included the package:
- Stylus brush, carbon fibre
- 1 x Screwdriver
- 2 x Screw M2.5 x 5
- 2 x Screw M2.5 x 7
- 1 x Stylus pressure gauge
Specifications
Specifications
Channel balance at 1 kHz
1 dB
Output voltage at 1 kHz, 5cm/sec
5 mV
Channel separation at 1 kHz
26 dB
Frequency response 20 Hz - 20 kHz
2 / - 0 dB
Tracking ability at 315 Hz
80 µm
Compliance, dynamic, lateral
22 µm/mN
Cantilever material
Aluminium
Stylus type
Nude Shibata
Stylus tip radius
r/R 6/50 µm
Coil system
Quad-coils with split pole pins and silver-plated OFC Coil wire
Tracking force range
1.4-1.7 g (14-17 mN)
Tracking force, recommended
1.5 g (15 mN)
Tracking angle
20°
Internal impedance, DC resistance
1.2 kOhm
Coil wire material
Silver-plated OFC Coil Wire
Cartridge body material
Polymer and aluminum
Cartridge colour
Black/Black
Cartridge weight
7.2 g
Premounted cartridge weight
16.7 g
Recommended load resistance
47 kOhm
Internal inductance
630 mH
Recommended load capacitance
150-300 pF
