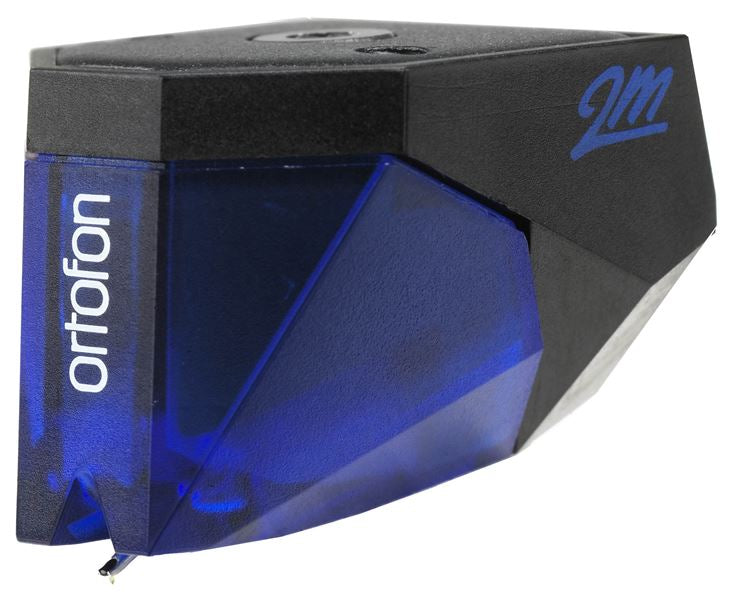

Ortofon 2M Blue Moving Magnet Cartridge

Ortofon 2M Blue Moving Magnet Cartridge

With the 2M Blue, you get serious about listening to vinyl. The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M Blue takes you further on this journey of authenticity.

Regular price £169.00 GBP
Regular price Sale price £169.00 GBP
Sale Out of Stock

Description

Accuracy level

The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M Blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Stylus

The Nude diamond is cut in an Elliptical shape, and when it hits the groove, it is like travelling through both space and time to the very moment the music was recorded.

Features

The 2M Blue features Ortofon’s very own invention and trademark: split pole pins. An invention that enables moving magnet cartridges to have a flat frequency response as with a moving coil cartridge.

Compatibility

Created to facilitate simple installation of the cartridge and to ensure compatibility with the dimensions and weights of today's most popular turntables, the 2M Series offers four distinct product versions:

The 2M is for most common turntables on the market, the 2M Premounted for customers who wish direct and easy mounting and replacement on their S-shaped tonearm, the 2M Verso for bottom mount headshells, and the 2MR, which is designed with cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

Output

The engine provides an increased output of 5.5 mV optimized sound reproduction and a high level of sonic accuracy. The 2M Blue adds more dynamics and resolution, sounds more open, and reproduces more details compared to the 2M Red model.

2M Blue accessories included the package:

  • 1 x Stylus brush
  • 1 x Screwdriver
  • 2 x Screw M2.5 x 5
  • 2 x Screw M2.5 x 7

Specifications

Channel balance at 1 kHz
1.5 dB

Output voltage at 1 kHz, 5cm/sec
5.5 mV

Channel seperation at 1 kHz
25 dB

Channel seperation at 15 kHz
15 dB

Frequency response 20 Hz - 20 kHz
20-20.000 Hz + 2 / - 1 dB

Tracking ability at 315Hz at recommended tracking force
80 µm

Compliance, dynamic, lateral
20 µm/mN

Stylus type
Nude Elliptical

Stylus tip radius
r/R 8/18 µm

Tracking force range
1.6-2.0 g (16-20 mN)

Tracking force, recommended
1.8 g (18 mN)

Tracking angle
20°

Internal impedance, DC resistance
1.3 kOhm

Cartridge colour
Black/Blue

Cartridge weight
7.2 g

Premounted cartridge weight
16.7 g

Recommended load resistance
47 kOhm

Internal inductance
700 mH

Stylus colour
Blue

Recommended load capacitance
150-300 pF
