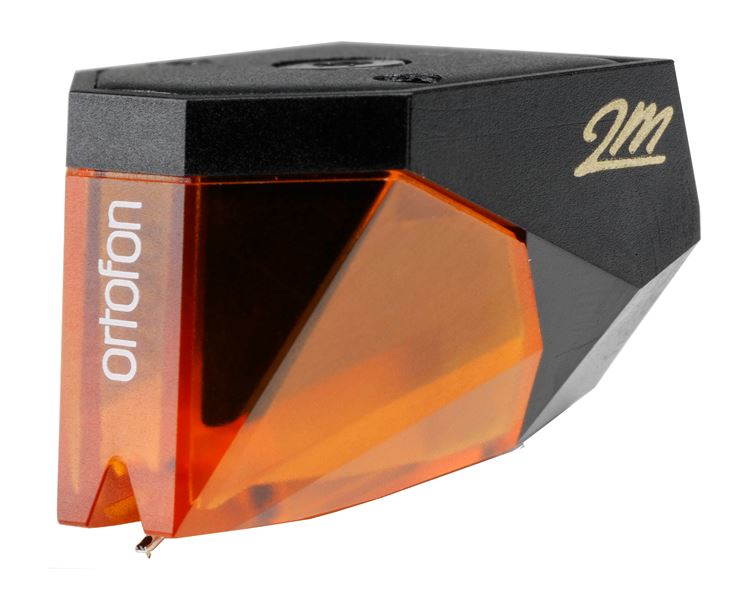

Ortofon 2M Bronze Moving Magnet Cartridge
Ortofon 2M Bronze Moving Magnet Cartridge
With the 2M Bronze, you will give the music a whole new dimension of precision. Listening to your records with the 2M Bronze is like hearing them for the first time, and you get to fall in love with the songs all over again.
Couldn't load pickup availability
Description
Description
Accuracy level
To us, hi-fi is more than a fancy label. High fidelity is the goal of everything we do. The 2M Bronze is designed to give the music a whole new dimension of precision. Listening to your records with the 2M Bronze is like hearing them for the first time, and you get to fall in love with the songs all over again. That is what hi-fi means to us, and that is what you get with the 2M Bronze.
Stylus
The 2M Bronze features a Nude Fine Line diamond particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information.
Features
The 2M Bronze uses a special engine featuring Ortofon’s very own invention: split pole pins upgraded with a silver-plated copper wire.
Compatibility
The 2M Series is designed for easy cartridge mounting, weight, and size to fit the most common turntables today.
The 2M Series are available in four different product variant configurations: the 2M for most common turntables on the market; the 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm; the 2M Verso, for bottom mount headshells; and the 2MR, which is designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.
2M Bronze accessories included the package:
- 1 x Stylus brush
- 1 x Screwdriver
- 2 x Screw M2.5 x 5
- 2 x Screw M2.5 x 7
- 1 x Stylus pressure gauge
Specifications
Specifications
Channel balance at 1 kHz
1 dB
Output voltage at 1 kHz, 5cm/sec
5 mV
Channel seperation at 1 kHz
26 dB
Channel seperation at 15 kHz
15 dB
Frequency response 20 Hz - 20 kHz
2 / - 0 dB
Tracking ability at 315Hz at recommended tracking force
80 µm
Compliance, dynamic, lateral
22 µm/mN
Stylus type
Nude Fine Line
Stylus tip radius
r/R 8/40 µm
Tracking force range
1.4-1.7 g (14-17 mN)
Tracking force, recommended
1.5 g (15 mN)
Tracking angle
20°
Internal impedance, DC resistance
1.2 kOhm
Cartridge colour
Black/Bronze
Cartridge weight
7.2 g
Premounted cartridge weight
16.7 g
Recommended load resistance
47 kOhm
Internal inductance
630 mH
Recommended load capacitance
150-300 pF
Awards & Reviews
Awards & Reviews
AVForums
"The 2MR Bronze is a clever way of broadening the appeal of an already omnipresent range and it comes Highly Recommended."
HIGHLY RECOMMENDED AWARD | READ MORE
2 Year Warranty
2 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
