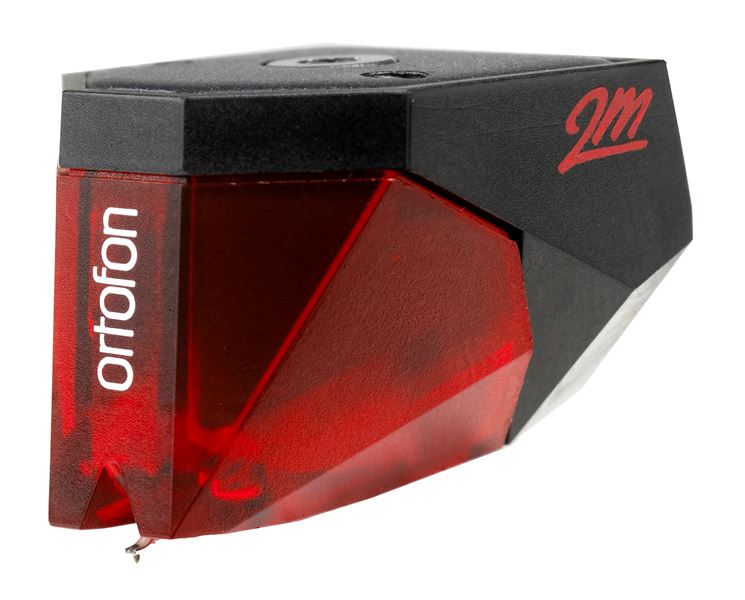

Ortofon 2M Red Moving Magnet Cartridge
Ortofon 2M Red Moving Magnet Cartridge
With the 2M Red, you will hear the music come to life on its own terms. It is like taking a step into the music itself. The 2M Red delivers an open, dynamic sound with a slight touch of warmth.
Couldn't load pickup availability
Description
Description
Accuracy level
With the 2M Red, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry. The 2M Red delivers an open, dynamic sound with a slight touch of warmth.
Features
The 2M Red features Ortofon’s very own invention: the split pole pins with a copper wire that gives you a sound reproduction so precise only your heart dares skip a beat.
Compatibility
The 2M Series is designed for easy cartridge mounting, weight, and size to fit the most common turntables today. The 2M Series are available in four different product variant configurations: the 2M for most common turntables on the market; the 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm; the 2M Verso, for bottom mount headshells; and the 2MR, which is designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.
Output
The engine provides an increased output of 5.5 mV, an optimized sound reproduction, and a high level of sonic accuracy.
2M Red accessories included the package:
- 1 x Stylus brush
- 1 x Screwdriver
- 2 x Screw M2.5 x 5
- 2 x Screw M2.5 x 7
Specifications
Specifications
Channel balance at 1 kHz
1.5 dB
Output voltage at 1 kHz, 5cm/sec
5.5 mV
Channel seperation at 1 kHz
22 dB
Channel seperation at 15 kHz
15 dB
Frequency response 20 Hz - 20 kHz
+ 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force
70 µm
Compliance, dynamic, lateral
20 µm/mN
Stylus type
Elliptical
Stylus tip radius
r/R 8/18 µm
Tracking force range
1.6-2.0 g (16-20 mN)
Tracking force, recommended
1.8 g (18 mN)
Tracking angle
20°
Internal impedance, DC resistance
1.3 kOhm
Cartridge colour
Black/Red
Cartridge weight
7.2
Premounted cartridge weight
16.7 g
Recomended load resistance
47 kOhm
Internal inductance
700 mH
Recommended load capacitance
150-300 pF
2 Year Warranty
2 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
