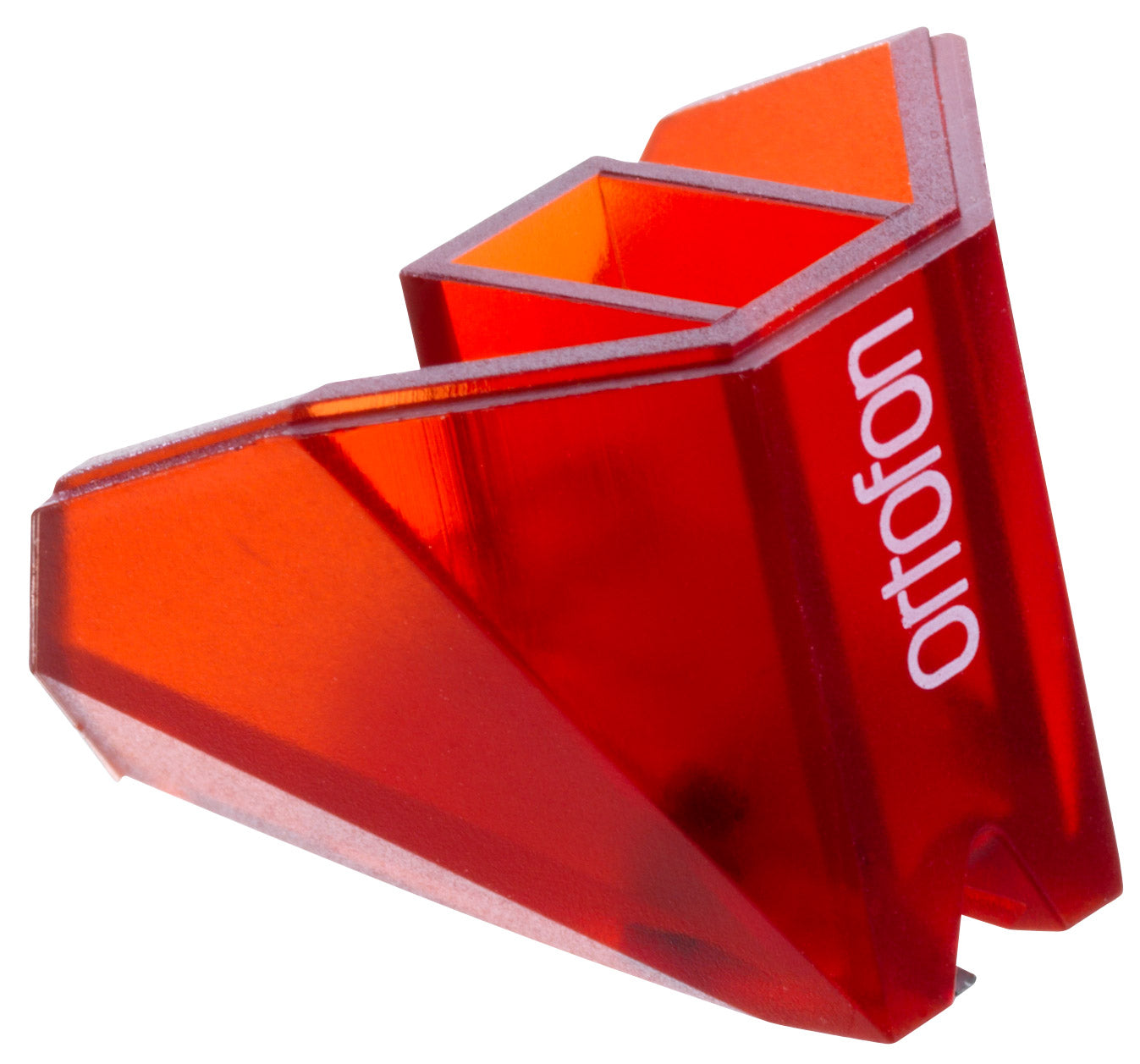

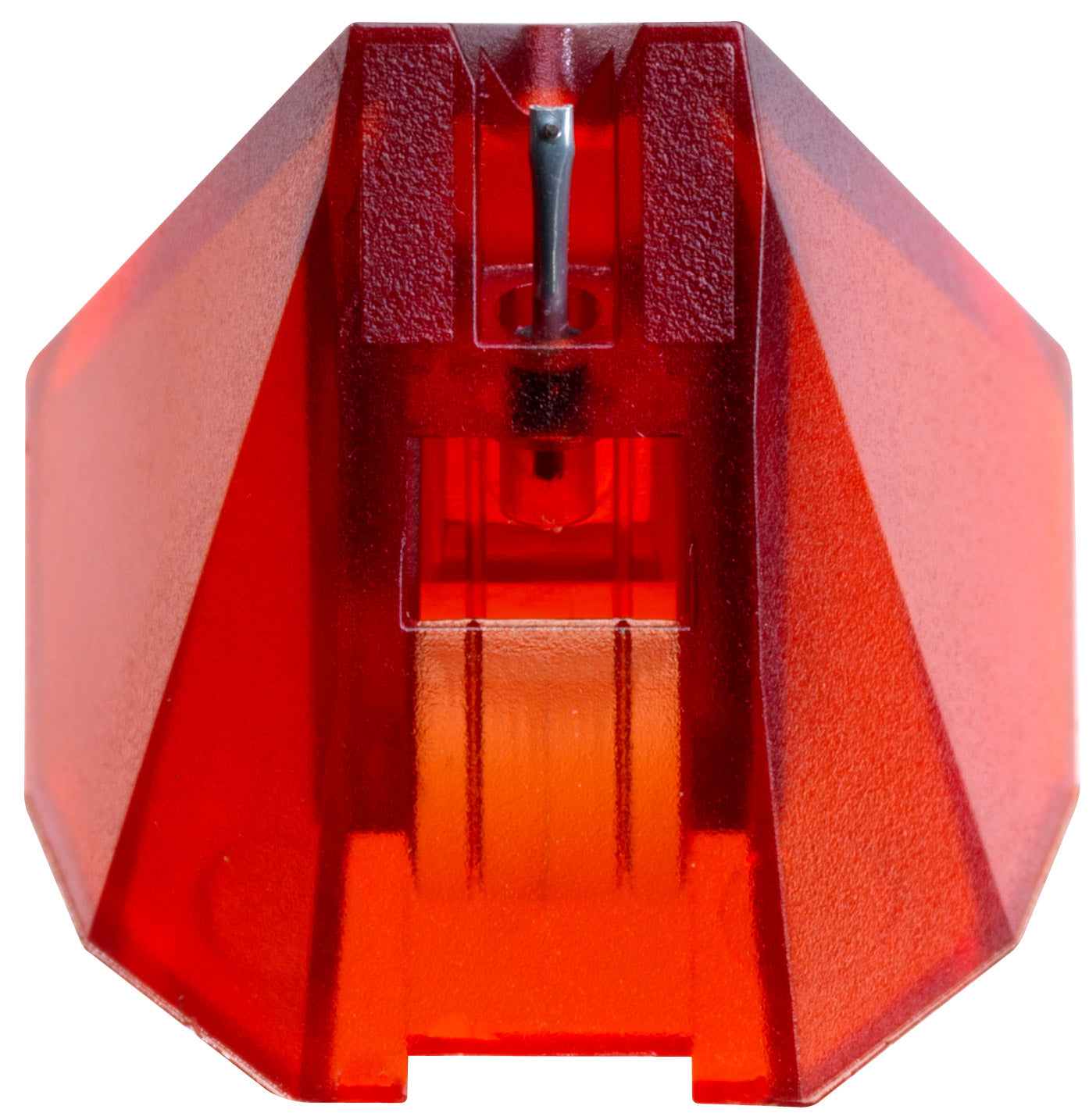

Ortofon 2M Red Moving Magnet Stylus
Ortofon 2M Red Moving Magnet Stylus
A genuine replacement part for the Ortofon 2M Red cartridge.
Regular price
£59.00 GBP
Regular price
Sale price
£59.00 GBP
Unit price
/
per
Couldn't load pickup availability
Description
Description
Physically 2M styli will fit on alternative 2M cartridges bodies, but 2M Series cartridges’ engines, coils and magnets configurations are not quite identical:
Red and Blue are identical, so are the Bronze and Black.
2M styli interchangeability
The Stylus 2M Red is recommended for following cartridges:
- 2M Red
- 2MR Red
- 2M Red Premounted
Specifications
Specifications
- Frequency response 20 Hz - 10 kHz
3 / - 1 dB - Tracking ability at 315Hz at recommended tracking force
70 µm - Compliance, dynamic, lateral
20 µm/mN - Stylus type
Elliptical - Stylus tip radius
r/R 8/18 µm - Tracking force range
1.6-2.0 g (16-20 mN) - Tracking force, recommended
1.8 g (18 mN) - Tracking angle
20° - Equivalent stylus tip mass
0.5 mg - Stylus colour
Red
