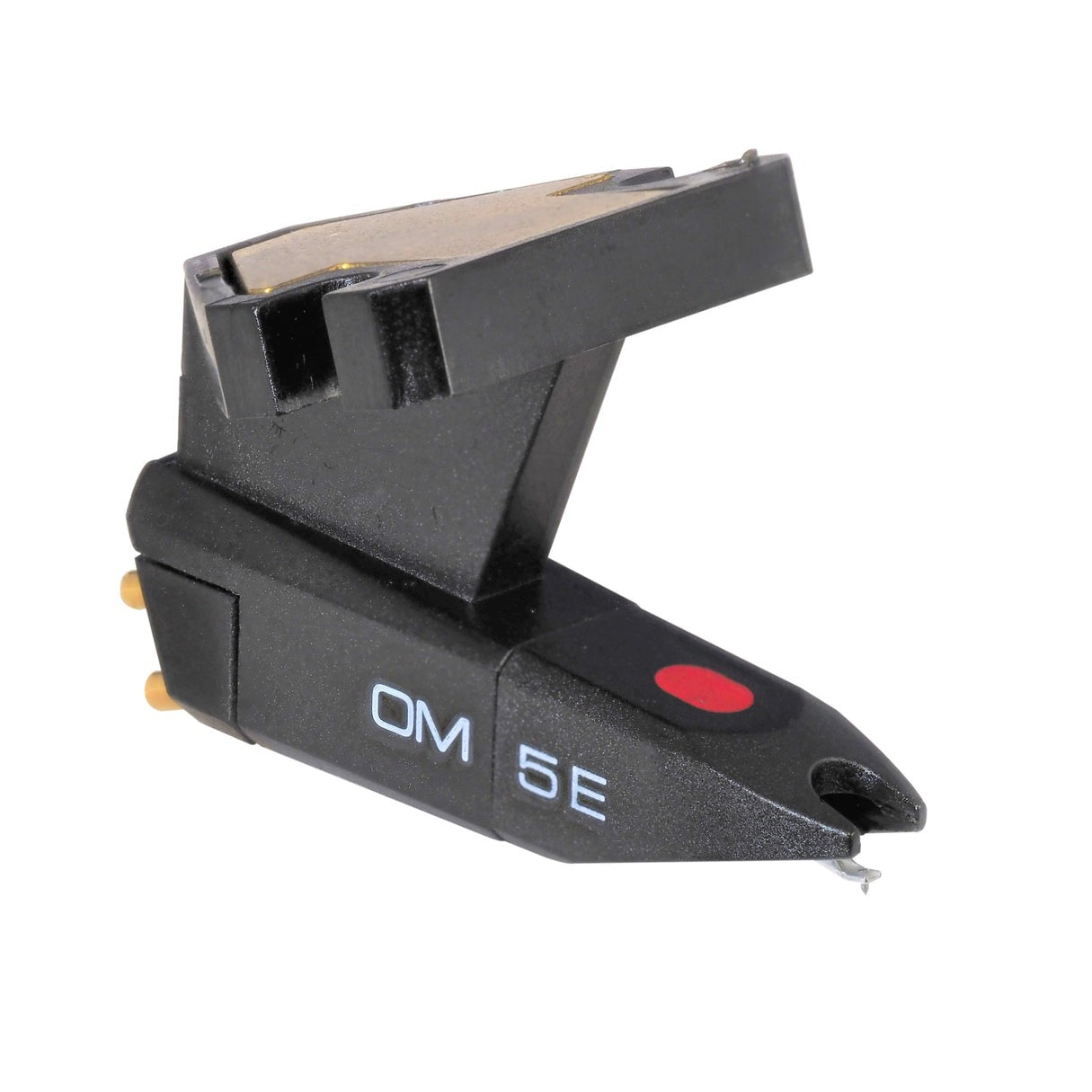

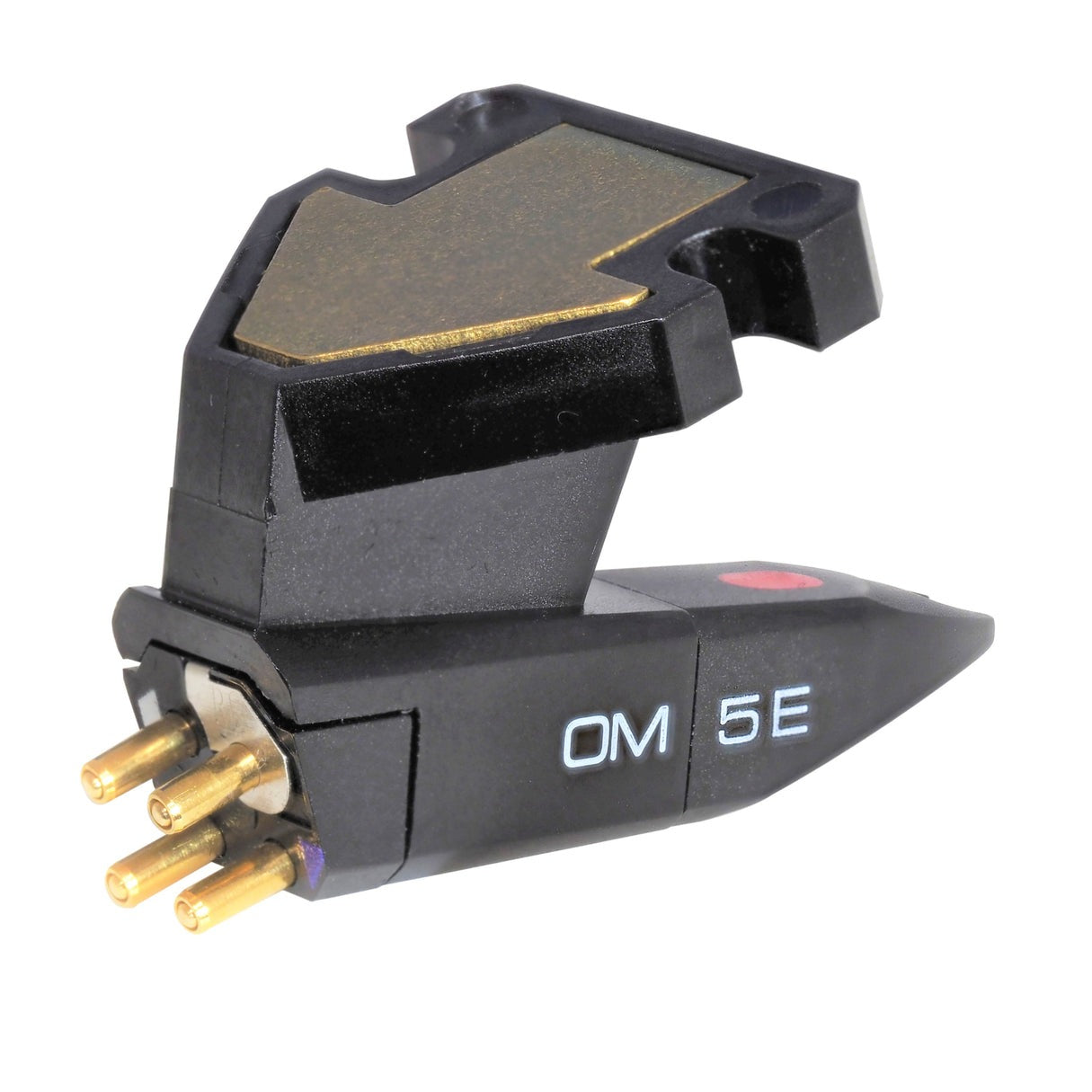

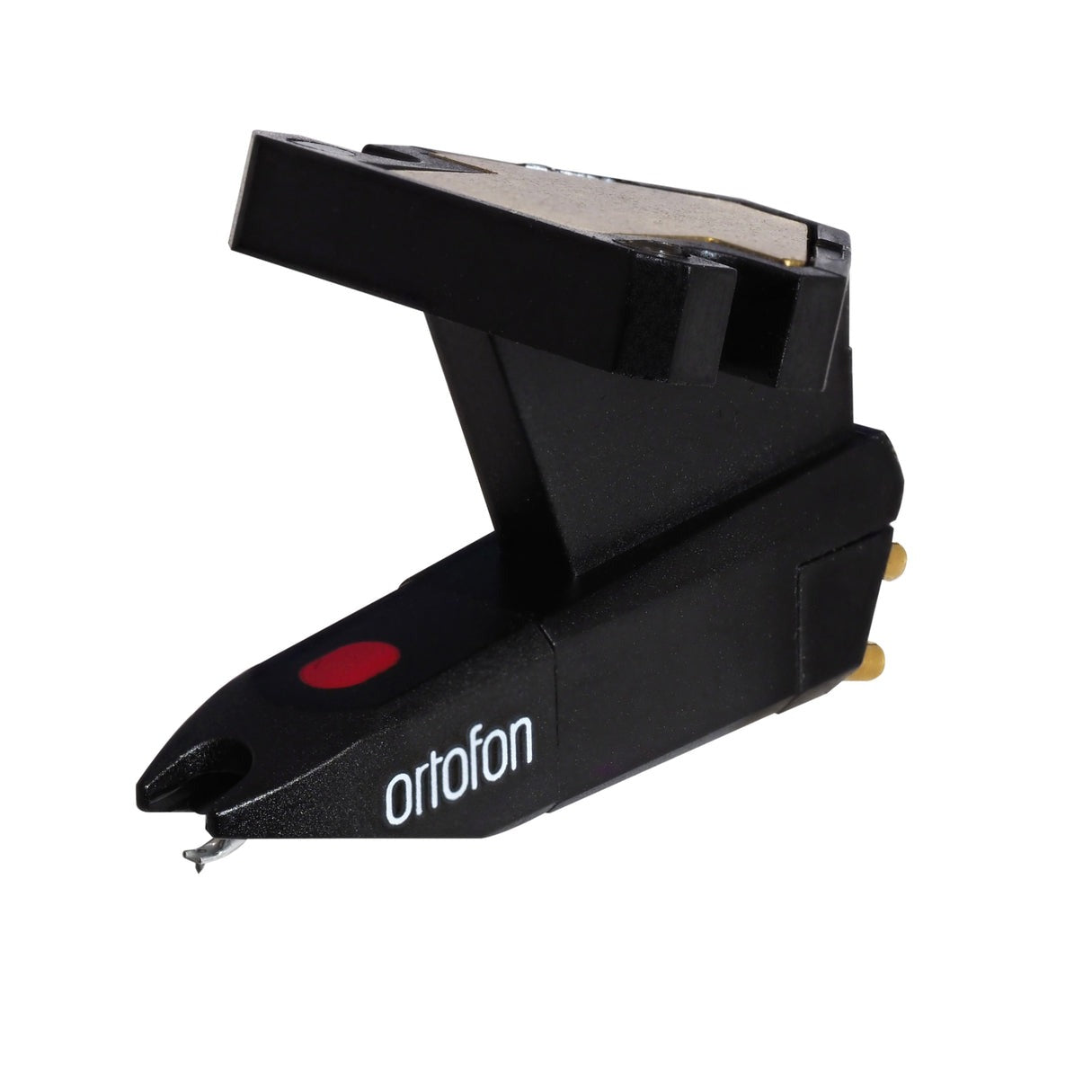

Ortofon OM 5E Moving Magnet Cartridge
Ortofon OM 5E Moving Magnet Cartridge
OM 5E features Elliptical stylus that provides balanced and distortion-free playback.
Couldn't load pickup availability
Description
Description
If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at any one of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.
If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.
Styli types and interchangeability
By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application, and budget.
In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.
Specifications
Specifications
Channel balance at 1 kHz
2 dB
Output voltage at 1 kHz, 5cm/sec
4 mV
Channel seperation at 1 kHz
22 dB
Channel seperation at 15 kHz
15 dB
Frequency response 20 Hz - 20 kHz
20-20.000 Hz + 3 / -3
Tracking ability at 315Hz at recommended tracking force
60 µm
Compliance, dynamic, lateral
20 µm/mN
Stylus type
Elliptical
Stylus tip radius
r/R 8/18 µm
Tracking force range
1.5-2.0 g (15-20 mN)
Tracking force, recommended
1.75 g (17.5 mN)
Tracking angle
20°
Internal impedance, DC resistance
750 Ohm
Cartridge colour
Black/Blac
Cartridge weight
incl. extra weight 5 g, excl. extra weight 2.5 g
Recommended load resistance
47 kOhm
Internal inductance
450 mH
Recommended load capacitance
200-500 pF
Replacement stylus
Stylus 5E
