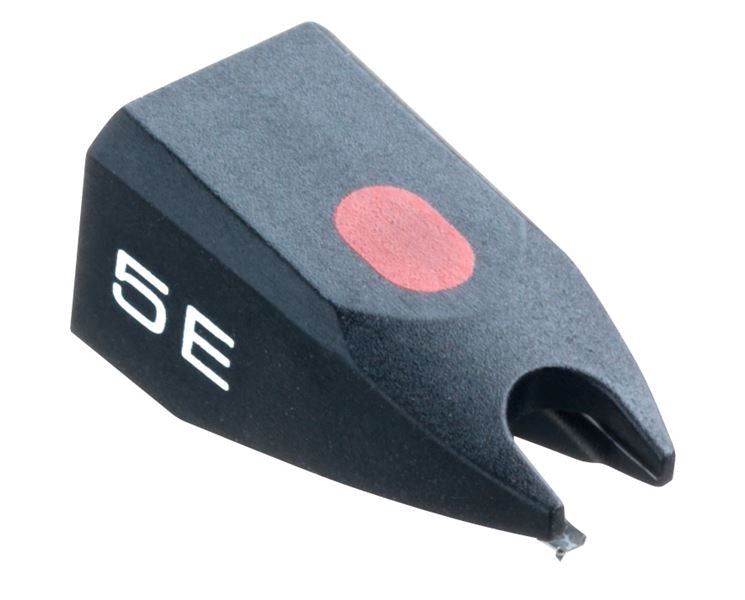

Ortofon Stylus 5E Moving Magnet Stylus
Ortofon Stylus 5E Moving Magnet Stylus
Recommended for: OM 5E, Super OM 5, OMP 5E, OMB 5E, and OMT 5E.
Couldn't load pickup availability
Description
Description
Ortofon Stylus 5E.
Recommended for:
OM 5E, Super OM 5, OMP 5E, OMB 5E, and OMT 5E.
Specifications
Specifications
Frequency response 20 Hz - 20 kHz
3 / - 3 dB
Tracking ability at 315Hz at recommended tracking force
60 µm
Compliance, dynamic, lateral
20 µm/mN
Stylus type
Elliptical
Stylus tip radius
r/R 8/18 µm
Tracking force range
1.5-2.0 g (15-20 mN)
Tracking force, recommended
1.75 g (17.5 mN)
Tracking angle
20°
Cartridge weight
stylus = 1 g
Stylus colour
Black
2 Year Warranty
2 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
