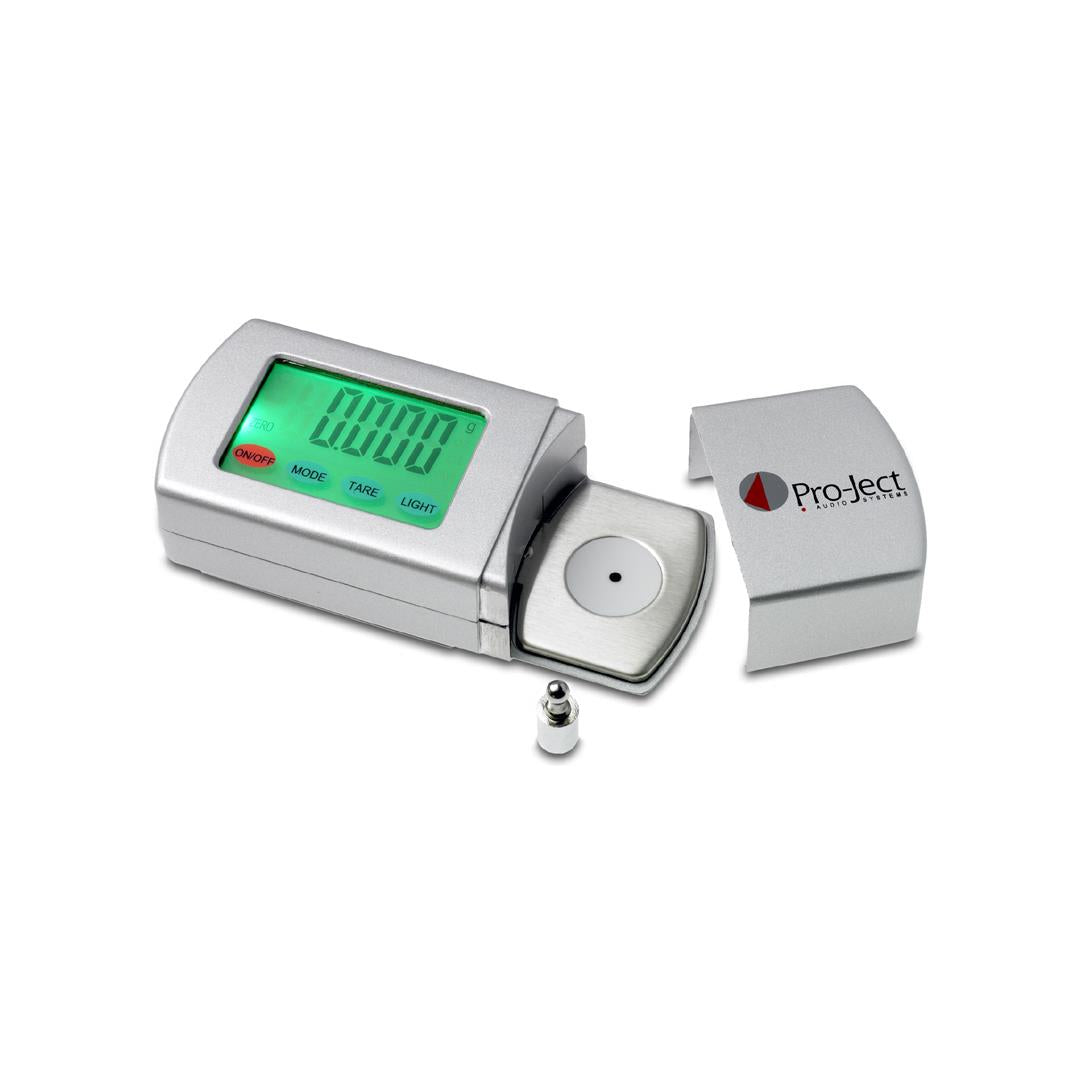

Pro-Ject Measure It S2 Stylus Gauge
Pro-Ject Measure It S2 Stylus Gauge
The Measure it S2 Stylus Tracking Force Gauge is a highly accurate electronic balance that is designed for measuring stylus trackingforces up to 5.0 grams in 0.001 gram increments.
Couldn't load pickup availability
Description
Description
Attractive and compact digital stylus measuring gauge; helping you allow for optimum cartridge performance and preservation of your vinyl records. This simple to use tool ensures you achieve the exact tracking force
Electronic stylus balance
The Measure it S2 Stylus Tracking Force Gauge is a highly accurate electronic balance that is designed for measuring stylus trackingforces up to 5.0 grams in 0.001 gram increments. Each Measure it S2 can easily be calibrated with the included calibration weight. The Measure it S2 has a solid aluminum housing with a 4-digit LCD backlit display. Whenever in doubt about the actual amount of pressure on the diamond tip the 4 digit display of this smart tool will help. Armed with precise information about tracking force, your stylus tip wear can be significantly reduced.
Scope of delivery
- stylus balance
- calibration weight
- screwdriver
- 2x AAA batteries
- protection case for the meter
- user guide
Features
- 4 digit LCD-Display with backlight
- Capacity 0 - 5g
- Variance ±0,001g
- Auto calibration function
- Auto off after 60 seconds
- Replacement batteries supplied
Specifications
Specifications
Capacity
0 - 5g
Variance
±0.001g
Weighting modes
gram (1g = 10mN), ounce (oz), pennyweight (dwt) and carat (ct)
Display
4 digit LCD with backlight
Calibration
Auto calibration using a 5g weight
Auto off
60 seconds off
Replacement battery
2 x AAA cells, 1.5V
Operating temperature
+10 - +30°C (50 - 86 degrees Fahrenheit)
Dimensions (W x H x D)
122 x 27 x 55mm
Weight
170g
2 Year Warranty
2 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
