Pro-Ject Phono Box Phono Stage
Pro-Ject Phono Box Phono Stage
The Pro-Ject Phono Box is one of the most popular phono stages on the market today. Combining affordability, simplicity and great sound; it's a simple addition that helps turntables sing.
Couldn't load pickup availability
Description
Description
The Pro-Ject Phono Box is one of the most popular phono stages on the market today. Combining affordability, simplicity and great sound; it's a simple addition that helps turntables sing.
Boasting a sophisticated internal design that employs low-noise ICs and precise RIAA equalisation circuitry, the Phono Box is often found used with far more expensive turntables. Simply connect the In and Output cables, push the switch to select Moving Magnet or Moving Coil operation (depending on your turntable cartridge), plug it in and off you go.
The small size of the Phono Box allows for discrete placement near your turntable or behind an existing system.
Features

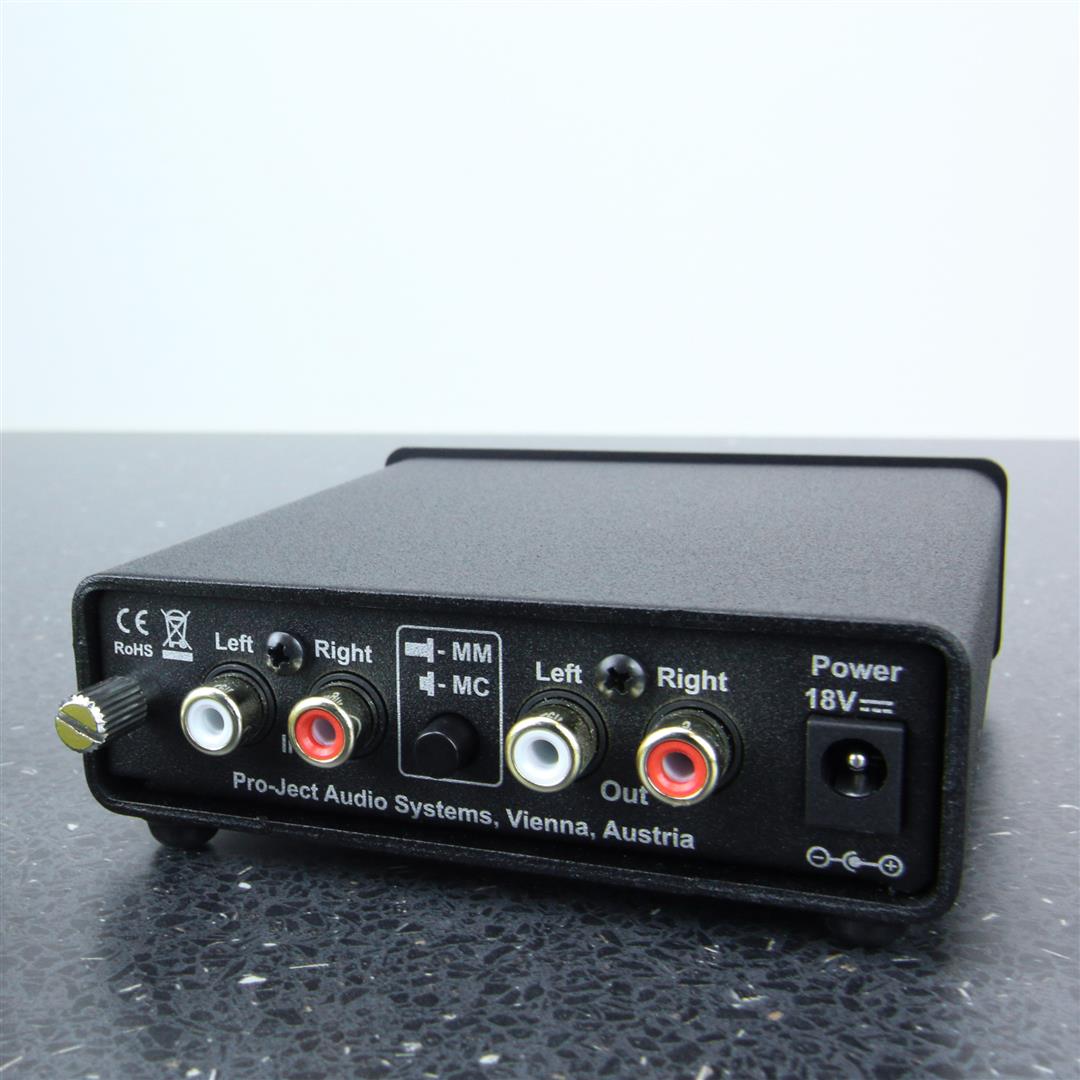

- Preamplifier for MM or MC with switch on rear panel
- Best buy classic
- DC power supply (< 1 watt standby power)
- Precise RIAA equalisation
- Low noise ICs
- Output stage with ultra-low impedance
- Gold-plated RCA sockets
- Small size for installation near recordplayer
- Faceplate available in black and silver
Specifications
Specifications
INPUT IMPEDANCE (MM)
47 kO
INPUT IMPEDANCE (MC)
100ohms
PHONO STAGE CAPACITANCE (MM)
120 pF
PHONO STAGE CAPACITANCE (MC)
120 pF
PHONO STAGE GAIN (MM)
40 dB
PHONO STAGE GAIN (MC)
60 dB
PHONO STAGE EQUALIZATION OPTIONS
RIAA
RIAA ACCURACY (20HZ - 20KHZ)
max. 0.5 dB
THD (MM INPUT)
0.01 %
THD (MC INPUT)
0.05 %
NOISE FLOOR (MM)
94 dBA
NOISE FLOOR (MC)
75 dBA
RCA LINE INPUT(S)
1
FIXED ANALOGUE OUTPUT(S)
1 x RCA Pair
EXTERNAL POWER SUPPLY RATING
18V-200mA DC
DIMENSIONS (W X H X D)
103 x 36 x 115 mm
WEIGHT
0.57 kg
2 Year Warranty
2 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
