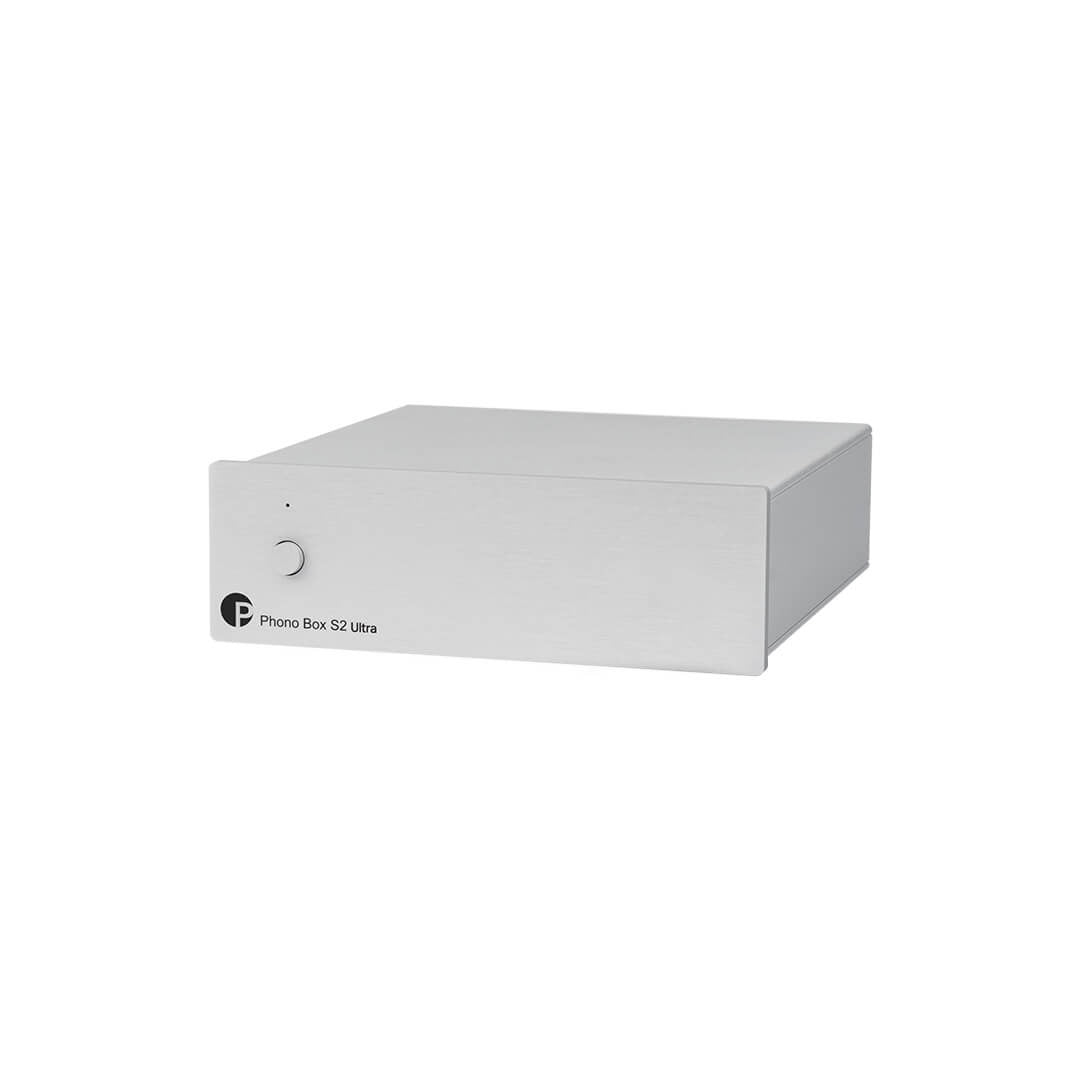

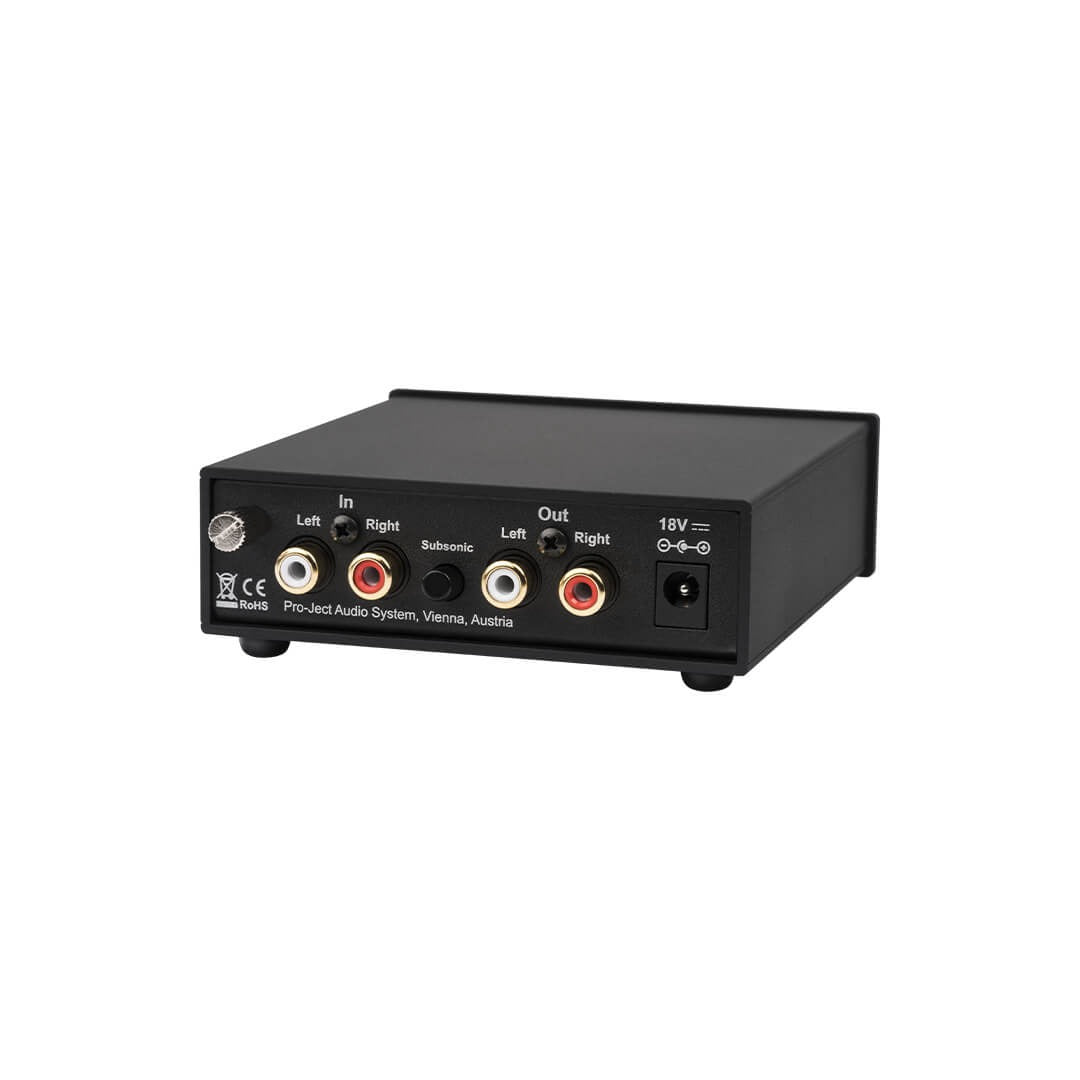

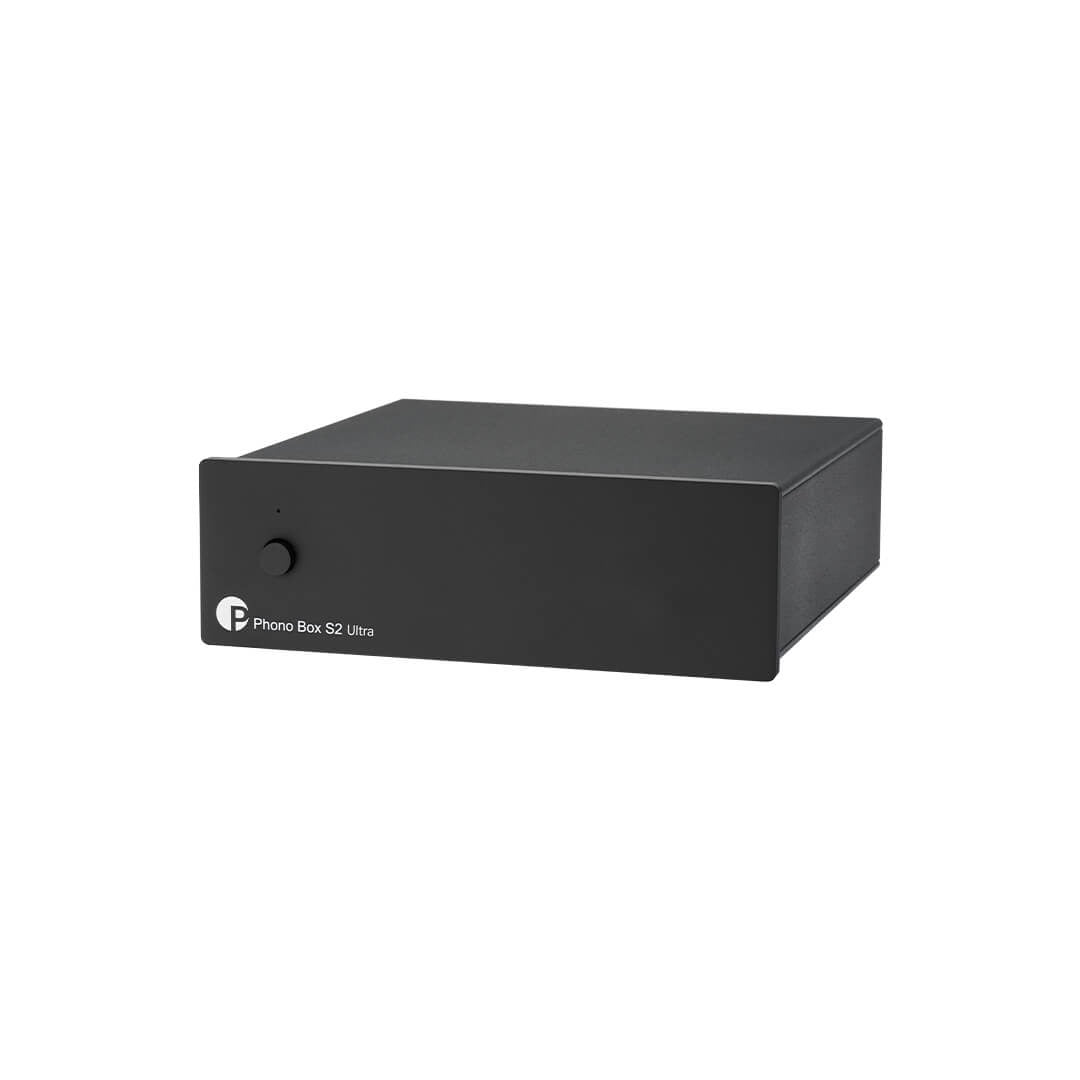

Pro-Ject Phono Box S2 Ultra Phono Stage
Pro-Ject Phono Box S2 Ultra Phono Stage
Punching well above its weight for sound quality, it replaces popular S-Line originals and boasts an array of features for easy pairing with any modern cartridge.
Couldn't load pickup availability
Description
Description
Phono Box S2 Ultra
The Phono Box S2 Ultra is like no other phono stage available today. Punching well above its weight for sound quality, it replaces popular S-Line originals and boasts an array of features for easy pairing with any modern cartridge.
The Phono Box S2 Ultra utilises a fully discrete electronic layout without the use of operational amplifiers (op-amps). Op-amps are commonly used in phono stages to increase the quiet sound from a pick-up cartridge to a level that modern amplifiers can use. However, by shifting away from that technology, Pro-Ject are able to produce a device with a warm, harmonious sound. In addition, the use of polystyrene capacitors makes the Phono Box S2 Ultra almost unique on the market, as such components are normally reserved for far more expensive products. Elsewhere, the split RIAA equalisation circuit enables pin-point accuracy of the RIAA curve and the introduction of a subsonic filter ensures your music sounds right in any environment.
The Phono Box S2 Ultra delivers a true audiophile sound performance that belies its small form and attractive price. With a sonic signature that delivers the full beauty of a vinyl record, it also remains easy to set up. With a series of dip-switches on the bottom of the solid metal casework, there are multiple settings for impedance (MC), capacitance (MM) and gain – so any modern Moving Magnet or Moving Coil cartridge is easy to accommodate.
Specifications
Specifications
Input Impedance (MM)
47 kohms
Input Impedance (MC)
10, 100, 1000ohms
Phono Stage Capacitance (MM)
Switchable 100 or 220 pF
Phono Stage Gain (MM)
40, 43 dB
Phono Stage Gain (MC)
60, 63 dB
Phono Stage Equalization Options
RIAA
Subsonic Filter
at 20Hz with 18dB/octave
RIAA Accuracy (20Hz - 20kHz)
< 0.4 dB
THD (MM Input)
< 0.0005 %
THD (MC Input)
< 0.004 %
Signal To Noise Ratio (MM Input)
85 dB
Signal To Noise Ratio (MC Input)
65 dB
RCA Input(s)
1
Fixed Analogue Output(s)
1 x RCA Pair
External Power Supply Rating
18V-500mA DC
Dimensions (W x H x D)
103 x 36 x 113 mm
Weight
0.34 kg
2 Year Warranty
2 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
