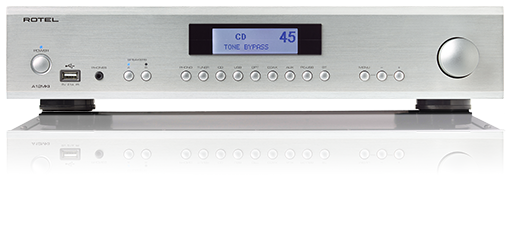

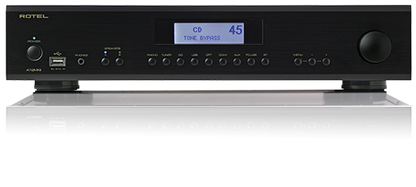

Rotel A12 MKII Integrated Amplifier
Rotel A12 MKII Integrated Amplifier
The A12MKII stands well above its sleek design delivering 60 Watts of dynamic Class AB output into 8 ohms. This integrated amplifier supports your favorite sources including MM Phono Stage, analog, digital, PC-USB and wireless Bluetooth.
Couldn't load pickup availability
Description
Description
The A12MKII stands well above its sleek design delivering 60 Watts of dynamic Class AB output into 8 ohms. This integrated amplifier supports your favorite sources including MM Phono Stage, analog, digital, PC-USB and wireless Bluetooth. Optimized circuits and a 32-bit DAC deliver spacious and open reproduction of the music.
- 2 x 60 Watts of robust Class AB power
- Moving Magnet Phono Input for Turntable connection
- Wireless aptX™ Bluetooth
- Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
- Certified Roon Tested
The A12MKII Integrated Amplifier stands well above its slim, sleek design profile designed and engineered for music lovers.

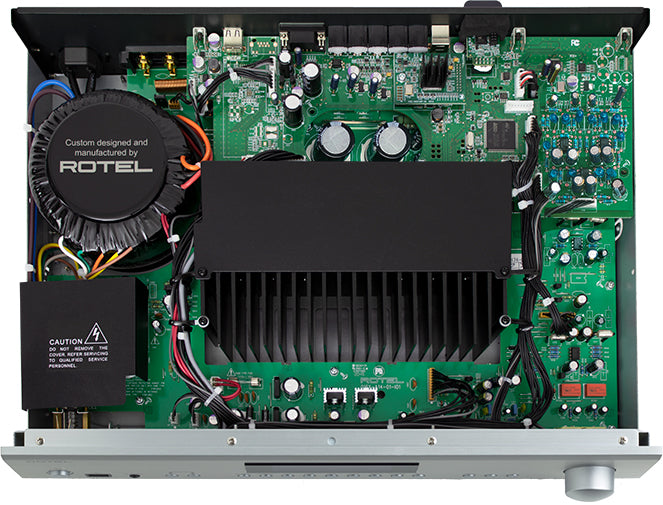

Powered by Rotel’s oversized in-house manufactured toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms.

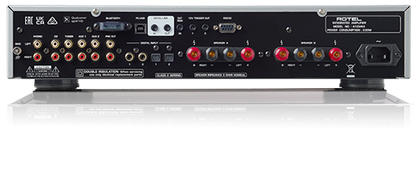

A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptXTM Bluetooth input ensures connection to your favorite sources.
The premium 32-bit Texas Instruments DAC extracts genuine and accurate details of the music with optimized circuits preserving the integrity of the audio stream.
Slim and powerful the A12MKII delivers on Rotel’s iconic brand heritage.
Specifications
Specifications
DIMENSIONS (W × H × D)
430 × 93 × 345mm
17" × 3.6" × 13.5"
FRONT PANEL HEIGHT
80mm (3.15")
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
230W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
8.76kg (19.31lbs.)
BTU RATING (4ohms, 1/8th power)
632 BTU/h
MAXIMUM POWER OUTPUT
120W/Ch (4ohms)
CONTINUOUS POWER OUTPUT
60W/Ch (8ohms)
TOTAL HARMONIC DISTORTION (THD)
<0.018%
FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz, 0±0.5dB
Digital Inputs: 10Hz - 90kHz, 0±2dB
Phono Input: 20Hz - 20kHz, 0±0.5dB
S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 100dB
Digital Inputs: 103dB
Phono Input: 90dB
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%
DAMPING FACTOR
220
INPUT SENSITIVITY
Line Level Inputs: 230mV
Digital Inputs: 0dBfs
Phono Input (MM): 3.4mV
INPUT IMPEDANCE
Line Level Inputs: 24kohms
Digital Inputs: 75ohms
Phono Input (MM): 47kohms
INPUT OVERLOAD
Line Level Inputs: 4V
Phono Input: 50mV
PREOUT LEVEL
1.2V
OUTPUT IMPEDANCE
470ohms
TONE CONTROLS
±10dB at 100Hz / 10kHz
DIGITAL INPUT
SPDIF LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)*
*Driver installation required
Roon Tested
5 Year Warranty
5 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
