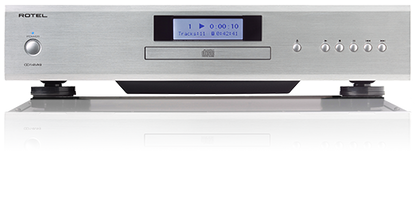

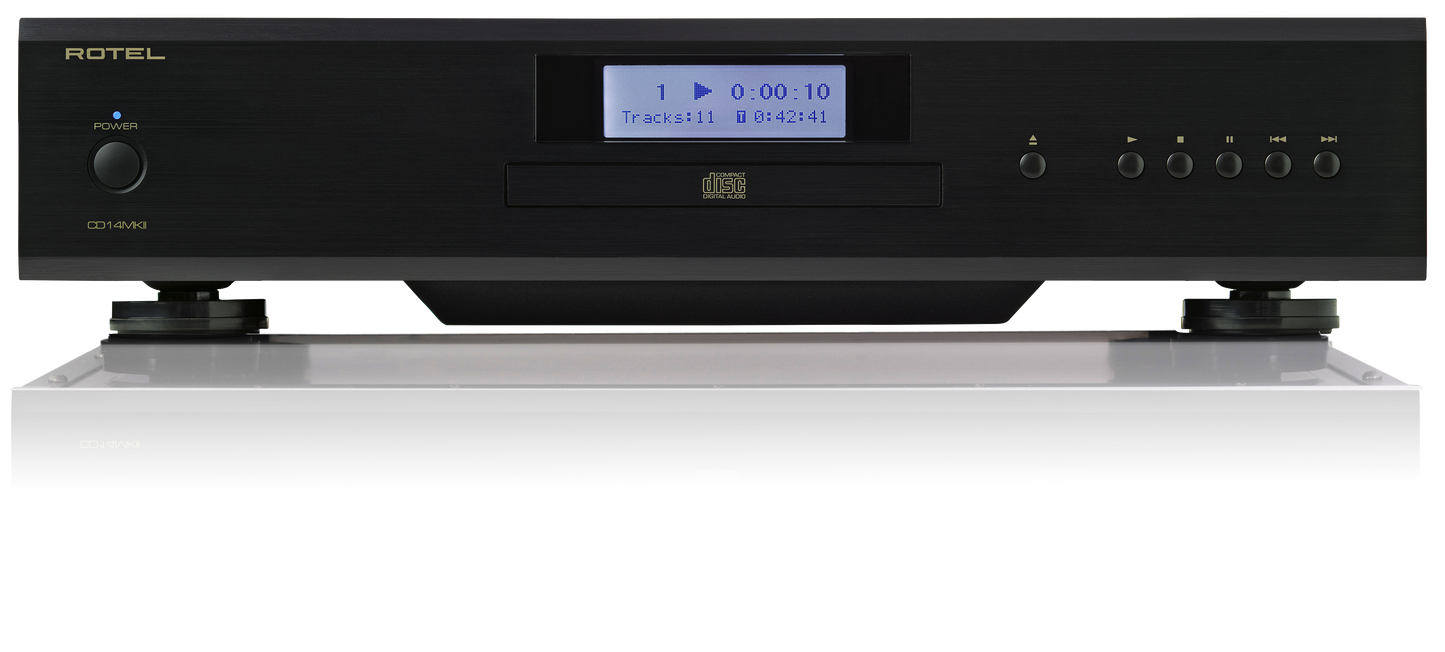

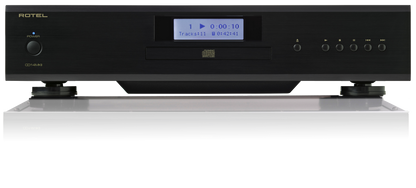

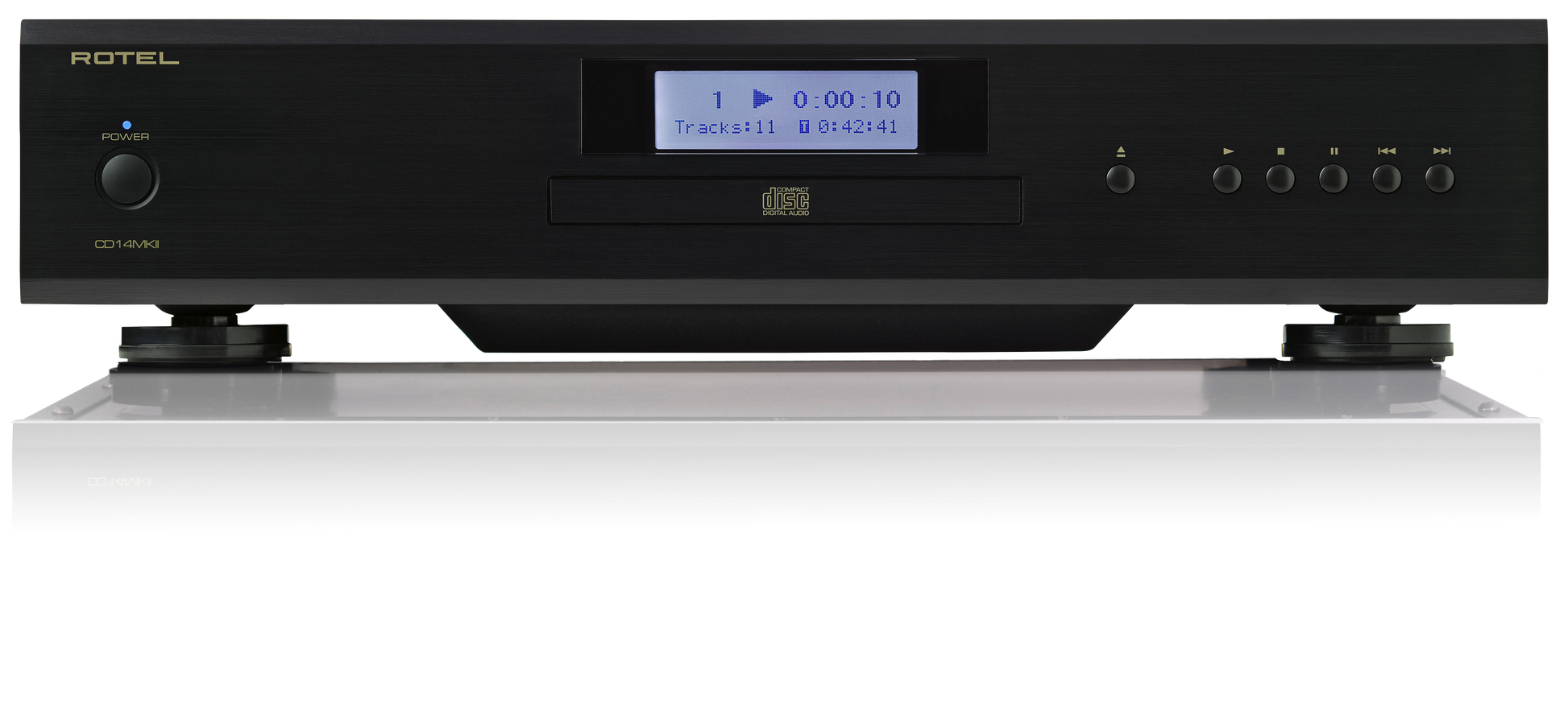

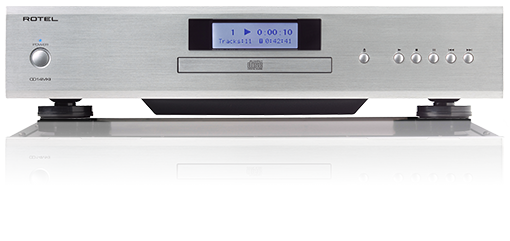

Rotel CD14 MKII CD Player
Rotel CD14 MKII CD Player
The CD14MKII delivers accurate reproduction of CDs with stunning clarity resolving even the finest details. The Texas Instruments 32-bit DAC is supported by independent power supplies isolating motor controls from sensitive audio circuits.
Couldn't load pickup availability
Description
Description
The CD14MKII delivers accurate reproduction of CDs with stunning clarity resolving even the finest details. The Texas Instruments 32-bit DAC is supported by independent power supplies isolating motor controls from sensitive audio circuits reducing noise and distortion. Bring your CD collection including MP3s and let the CD14MKII deliver performance at its best.
- Texas Instruments premium 32-bit/384kHz Digital to Analogue Converter
- Smooth tray loading CD mechanism
- 12 volt trigger input
- Coax output for use as a transport
- Includes remote control
The CD14MKII follows Rotel’s tradition of award-winning CD players with innovations to the power supply, and newly tuned acoustic component resulting in a more accurate reproduction of the audio with rich, genuine detail.

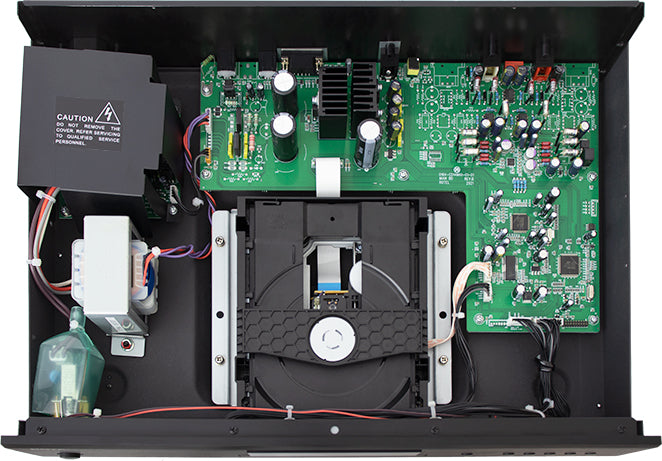

Critical Digital to Analog conversion is managed by a premium Texas Instruments 32-bit DAC with independent power supplies eliminating unwanted distortion and isolating motor controls from sensitive audio circuits reducing noise and distortion.
The tray loading CD mechanism, IR remote, front panel controls and graphic display ensure seamless operation.
Bring your CD’s including MP3s and allow the CD14MKII to showcase your music with stunning detail, clarity, and accuracy.
Specifications
Specifications
DIMENSIONS (W × H × D)
430 × 98 × 314mm
17" × 3.8" × 12.3"
FRONT PANEL HEIGHT
80mm (3.15")
POWER REQUIREMENTS
120V, 60Hz
POWER CONSUMPTION
15W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
6.51kg (14.35lbs.)
TOTAL HARMONIC DISTORTION (THD)
0.0035% @ 1kHz
FREQUENCY RESPONSE
20Hz - 20kHz ±0.5dB
S/N RATIO (IHF "A" Weighted)
>118dB
DYNAMIC RANGE
>99dB
DIGITAL TO ANALOG CONVERTERS
Texas Instruments
CHANNEL BALANCE
±0.5dB
CHANNEL SEPARATION
>118dB @ 10kHz
INTERMODULATION DISTORTION
0.0035% @ 1kHz
PHASE LINEARITY
±0.5 degree
DIGITAL OUTPUT
0.5V, Peak to Peak
ANALOG OUTPUT IMPEDANCE
100ohms
LOAD IMPEDANCE
75ohms
2 Year Warranty
2 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
