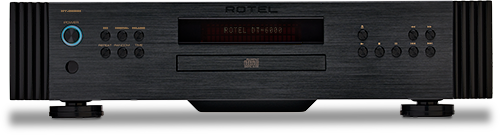

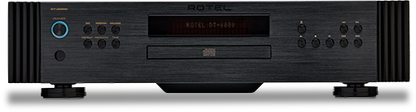

Rotel DT-6000 CD Player & DAC
Rotel DT-6000 CD Player & DAC
PC-USB, Optical, Coaxial, and included tray loading CD Player provide the ultimate flexibility for your favorite sources rendering the audio with unprecedented detail and immersive sound stage.
Couldn't load pickup availability
Description
Description
The Rotel DT-6000 DAC Transport celebrates 60-Years of performance synonymous with the brands Japanese heritage.
PC-USB, Optical, Coaxial, and included tray loading CD Player provide the ultimate flexibility for your favorite sources rendering the audio with unprecedented detail and immersive sound stage.
- Certified Roon Tested
- Supports MQA and MQA Studio
- Smooth tray loading CD mechanism
- Fully balanced differential XLR outputs
- ESS premium 32-bit 8-Channel Digital to Analog Converter
Rotel’s Diamond Series DT-6000 DAC Transport celebrates 60-Years of performance, passion, and value synonymous with the brands Japanese heritage.
An 8-channel ESS Sabre ES9028PRO DAC dedicates 4 channels each to stereo outputs rendering unprecedented details with an ultra-low noise floor and immersive sound stage.

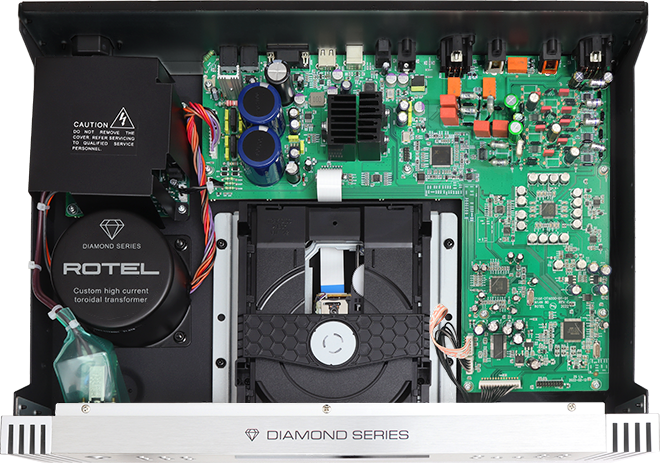

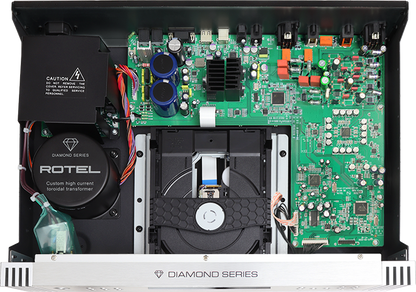

Dedicated power supplies feed critical circuits utilizing an in-house manufactured toroidal transformer with isolation techniques lowering residual noise and distortion.
The PC-USB input supports up to 32-bit/384kHz including MQA (24-bit/384kHz) and DSD (4X). Optical and Coaxial inputs are also included supporting 24-bit/192kHz streams.
The tray loading CD utilizes Rotel’s 30-years of multi-award winning CD player design experience extracting every nuance and detail from CD collections including MP3s both large and small.
Front panel controls, a back-lit IR remote and 2-line display ensure intuitive operation of the unit.

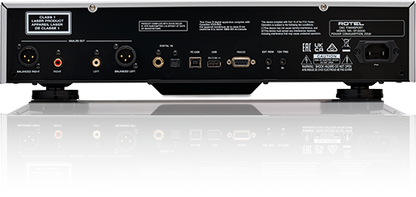

RS232, 12V trigger and external remote input ensure integration with control systems.

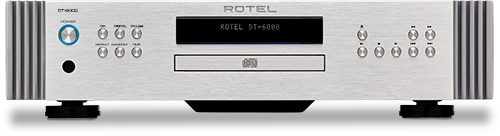

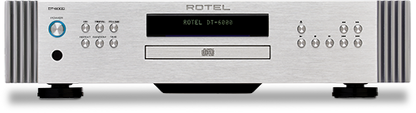

The DT-6000 is available in silver and black colors.
Specifications
Specifications
DIMENSIONS (W × H × D)
431 × 104 × 320mm
17" × 4" × 12.6"
FRONT PANEL HEIGHT
2U / 88.1mm (3.5")
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
25W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
8.11kg (17.88lbs.)
TOTAL HARMONIC DISTORTION (THD)
Optical/Coaxical Input: < 0.0007%
CD/PC-USB Input: < 0.0012%
FREQUENCY RESPONSE
20Hz - 20kHz, +0, -0.15dB
10 Hz - 70kHz, +0, -3dB
S/N RATIO ("A" Weighted)
>115dB
DYNAMIC RANGE
>99dB
DIGITAL TO ANALOG CONVERTERS
ESS 32-Bit/768kHz DAC
CHANNEL BALANCE
± 0.5dB
CHANNEL SEPARATION
>115dB @ 10kHz
INTERMODULATION DISTORTION
<0.0012%
ANALOG OUTPUT LEVEL
Unbalanced (RCA): 2.1V
Balanced (XLR): 4.3V
ANALOG OUTPUT IMPEDANCE
Unbalanced (RCA): 10ohms
Balanced (XLR): 20ohms
INPUT SENSITIVITY
0dBfs / 75 Ohms
COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
Support native DSD (up to 11.2M) and DoP
Support MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
