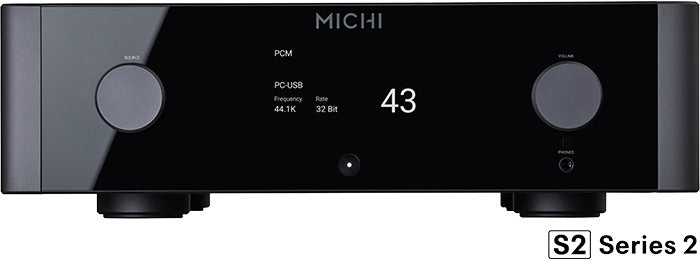

Rotel Michi P5 Series 2 Pre-Amplifier
Rotel Michi P5 Series 2 Pre-Amplifier
Discover the pinnacle of performance with the Michi P5 Series 2 Preamplifier featuring dual 8-Channel ESS SABRE DACs rendering music that envelopes you with every note.
Couldn't load pickup availability
Description
Description
Discover the pinnacle of performance with the Michi P5 Series 2 Preamplifier featuring dual 8-Channel ESS SABRE DACs rendering music that envelopes you with every note. Input connections support your favorite audio sources including Analog, Digital, PC-USB with MQA, aptX™ HD Bluetooth and Moving Magnet and Moving Coil Phono Stage.
Immerse yourself in performance with the Michi P5 Series 2 Preamplifier rendering digital audio with dual 8-channel high precision ESS SABRE ES9028PRO Digital to Analog converters specially configured in MONO mode. Redundant processing by 8 DAC circuits per channel extracts rich details from the music with an ultra-quiet noise floor on an exceptionally wide sound stage.
The P5 Series 2 supports your favorite music sources including Analog, Digital, PC-USB with MQA and DSD, aptX™ HD Bluetooth, and a Moving Magnet and Moving Coil Phono Stage making it the perfect choice to take your music listening experience to the next level.
Michi, expectations amplified.
- Certified Roon Tested
- Supports MQA and MQA Studio
- Moving Coil and Moving Magnet phono stage input
- Bluetooth with aptX™HD and AAC
- ESS premium 32-bit 8-Channel Digital to Analog Converter
Specifications
Specifications
DIMENSIONS (W × H × D)
485 × 150 × 452mm
19" × 6" × 17.75"
FRONT PANEL HEIGHT
132mm (5.25")
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
40W
STANDBY POWER CONSUMPTION
Normal: <0.5W
Network Wakeup: <2W
NET WEIGHT
22.9kg (50.5lbs.)
BTU RATING (4ohms, 1/8th power)
87 BTU/h
TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.002%
FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz (±0.3dB)
Digital Inputs: 20Hz - 20kHz (±0.3dB)
Phono Input: 20Hz - 20kHz (±0.3dB)
S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 116dB
Digital Inputs: 100dB
Phono Input: 80dB
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.002%
INPUT SENSITIVITY
Line Level Inputs (RCA): 160mV
Line Level Inputs (XLR): 250mV
Phono Input (MM): 2.5mV
Phono Input (MC): 250uV
Digital Inputs: 0dBFs
INPUT IMPEDANCE
Line Level Inputs (RCA): 47kohms
Line Level Inputs (XLR): 100kohms
Phono Input (MM): 47kohms
Phono Input (MC): 100ohms
Digital Inputs: 75ohms
INPUT OVERLOAD
Line Level Inputs (RCA): 12V
Line Level Inputs (XLR): 12V
Phono Input (MM): 199mV
Phono Input (MC): 22mV
OUTPUT LEVEL
Unbalanced (RCA): 1V
Balanced (XLR): 2V
OUTPUT IMPEDANCE
Unbalanced (RCA): 470ohms
Balanced (XLR): 100ohms
CHANNEL SEPARATION
Line Level Inputs: >85dB
Phono Input: >55dB
TONE CONTROLS
±10dB at 100Hz / 10kHz
COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)*
*Driver Installation Required
DSD and DoP Support
MQA and MQA Studio Support
Roon Tested
Awards & Reviews
Awards & Reviews
Hi-Fi News
"Rotel’s new unit is an all-round star, mixing a brilliantly inviting sonic performance with catwalk style, foolproof operation and no shortage of connectivity."
OUTSTANDING PRODUCT AWARD | READ MORE
5 Year Warranty
5 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
