Rotel Michi S5 Stereo Power Amplifier
Rotel Michi S5 Stereo Power Amplifier
The Michi S5 Stereo Amplifier delivers 500 watts per channel into 8 ohms loads with best in class audio performance.
Couldn't load pickup availability
Description
Description
The Michi S5 Stereo Amplifier delivers 500 watts per channel into 8 ohms loads with best in class audio performance. The dual monoblock design includes twin, oversized, in-house manufactured toroidal transformers for exceptional bass energy while maintaining control and precision of the finest detail all packaged in an elegant design.
- 2 x 500 Watts of robust power
- Class AB amplifier design
- Patented British bulk storage capacitors
- Massive power supply using Dual Toroidal Transformers
- Balanced XLR inputs

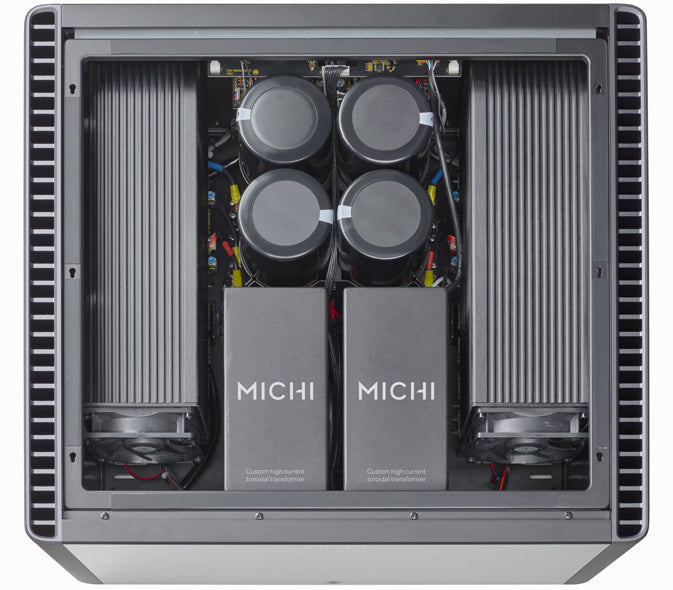

The Michi S5 Stereo Power Amplifier is a best in class linear amplifier delivering 500 watts of Class AB power in 8 ohm and over 800 watts to 4 ohm loads. The dual monoblock architecture is equipped with twin, custom engineered oversized, in-house manufactured 2,200 Volt Amp toroidal transformers in individual epoxy filled enclosures eliminating noise and vibration. A bank of 4 British patented bulk storage capacitors totaling 188,000uF delivers exceptional bass energy while maintaining precise detail and control to 32 high current output transistors ensuring effortless accuracy of the timing and rhythm under even the most difficult of load conditions.
Audio performance must be engineered from product concept through production. This is evidenced in the S5 as the result of countless hours of engineering design reviews, critical component evaluation and sonic tuning. Accuracy at its best while delivering on a promise to ensure the audio provides entertainment deserving of the Michi logo.

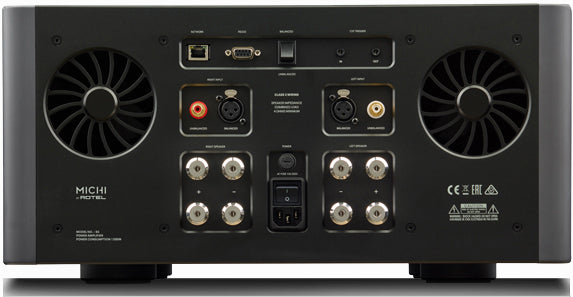

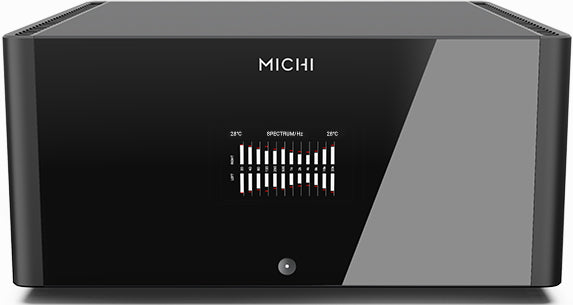

An elegant industrial design puts the finishing touch on this amplifier with a font panel color display and Michi exclusive custom high current 5-way rhodium plated binding posts. The included remote control provides easy setup and operation with RS232 and Ethernet connections supporting all popular control systems.
Specifications
Specifications
DIMENSIONS (W × H × D)
485 × 238 × 465mm
19" × 9.375" × 18.25"
FRONT PANEL HEIGHT
220mm (8.625")
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
1200W
STANDBY POWER CONSUMPTION
Normal: <0.5W
Network Wakeup: <2W
NET WEIGHT
59.9kg (132.1lbs.)
BTU RATING (4ohms, 1/8th power)
3450 BTU/h
CONTINUOUS POWER OUTPUT
500W/Ch (8ohms)
800W/Ch (4ohms)
TOTAL HARMONIC DISTORTION (THD)
<0.008%
FREQUENCY RESPONSE
20Hz - 20kHz (+0dB, -0.15dB)
10Hz - 100kHz (+0dB, -0.4dB)
S/N RATIO (IHF "A" Weighted)
120dB
GAIN
Unbalanced (RCA): 28dB
Balanced (XLR): 24dB
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%
DAMPING FACTOR
350
SPEAKER IMPEDANCE
4ohms minimum
INPUT SENSITIVITY
Unbalanced (RCA): 2.6V
Balanced (XLR): 4.2V
INPUT IMPEDANCE
Unbalanced (RCA): 12.5kohms
Balanced (XLR): 100kohms
CHANNEL SEPARATION
>65dB
