Rotel RA-6000 Integrated Amplifier
Rotel RA-6000 Integrated Amplifier
The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms.
Couldn't load pickup availability
Description
Description
The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.
- Certified Roon Tested
- Supports MQA and MQA Studio
- 2 x 350 Watts of robust Class AB power, 4 Ohms
- Wireless aptX™ HD and AAC Bluetooth
- Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.
Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested. A Moving Magnet Phono stage is also included for vinyl fans.
Front panel controls, back-lit IR remote and 2-line display ensure intuitive operation.

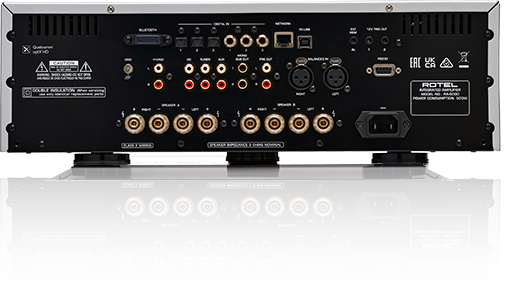

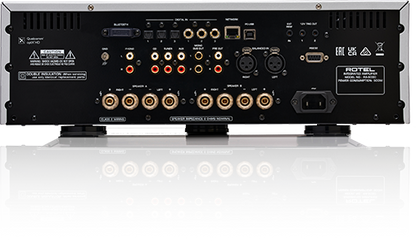

Ethernet, RS232,12V trigger and external remote input simplify integration with control systems.

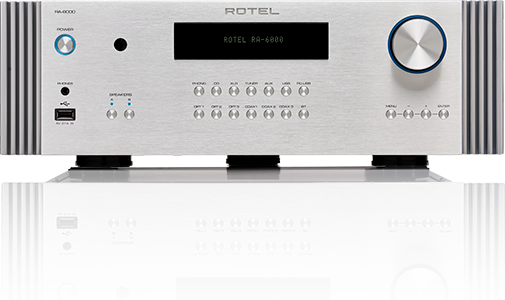

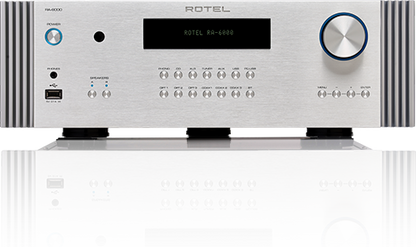

The RA-6000 is available in both black and silver colors.
Specifications
Specifications
DIMENSIONS (W × H × D)
431 × 144 × 425mm
17" × 5.7" × 16"
FRONT PANEL HEIGHT
3U / 132.6mm (5.25")
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
500W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
18.81kg (41.47lbs.)
BTU (4 ohms, 1/8th power)
1239 BTU/h
MAXIMUM POWER OUTPUT
350W/Ch (4ohms)
CONTINUOUS POWER OUTPUT
200W/Ch (8ohms)
TOTAL HARMONIC DISTORTION (THD)
<0.0075%
FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz, ±0.5dB
Digital Inputs: 10Hz - 90kHz, ±2dB
Phono Input: 20Hz - 20kHz, ±0.5dB
S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 103dB
Digital Inputs: 102dB
Phono Input: 80dB
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%
DAMPING FACTOR
600
INPUT SENSITIVITY
Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Digital Inputs: 0 dBfs
Phono Input (MM): 5.2mV
INPUT IMPEDANCE
Line Level Inputs (RCA): 5.6kohms
Line Level Inputs (XLR): 100kohms
Digital Inputs: 75ohms
Phono Input (MM): 47kohms
INPUT OVERLOAD
Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 4.5V
Phono Input: 52mV
PREOUT LEVEL
1.9V
OUTPUT IMPEDANCE
100ohms
COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
Awards & Reviews
Awards & Reviews
Hi-Fi News
"The RA-6000 is a powerful, yet refined-sounding amplifier with all the trimmings"
OUTSTANDING PRODUCT AWARD | READ MORE
2 Year Warranty
2 Year Warranty
The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
